XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge protector protection arrester surge protective device SPD
1.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge arrester surge protective device SPD Information
A , DC Surge Protector Photovoltaic SPD are applicable to the overvoltage protection of all kinds of D,C grade in DC solar system. and protect against lightning surge voltages in solar system B,The designed and manufactured according to IEC61643-1:2005. C,These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. D, DC Surge Protector Photovoltaic SPD are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side). especially if the line routing is external and long |
2.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge arrester surge protective device SPD Description
1. XLSPD-PV CE Solar PV 20KA-40ka 2P 3P DC 500V surge arrester surge protective device SPDsurge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system). 2. These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its 3. Installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. 4. High energy MOVs equipped with specific thermal disconnectors and related failure indicators |
3.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge arrester surge protective device SPD Specification
solar surge protector | XLSPD-PV-2 | XLSPD-PV-3 | ||||
PV DC specific (LEC 6614-1/EN 61643-11) | ||||||
Pole | 2 pole | 3 pole | ||||
Electrical Parameter | ||||||
Classifical test | II | II | ||||
Uoc max (V DC) | 500 | 800 | 1000 | 1000 | ||
Uc (V DC) | 500 | 800 | 1000 | 1000 | ||
In(8/20)us (KA) | 20 | 20 | ||||
Imax(8/20)us (KA) | 40 | 40 | ||||
Up (KV) | 2.0 | 3.8 | ||||
Remote control and indication | ||||||
Indication window | ||||||
Plug-in module | ||||||
Remote signal contact | ||||||
Remote signal contact | Max working volt | 250V AC/30V DC | 250V AC/30V DC | |||
Max working amp 1A (250V/AC) | 1A (250V/AC) | 1A (250V/AC) | ||||
1A (30V DC) | 1A (30V DC) | 1A (30V DC) | ||||
Wiring & installation | ||||||
Wiring capacity(mm2) | Hard wire | 4-25 | 4-25 | |||
| Flexible wire | 4-16 | 4-16 | |||
Stripping length | 10 | 10 | ||||
Terminal screwa | M5 | M5 | ||||
Torque(Nm) | Main ciruit | 3.5 | 3.5 | |||
Remote signal contact | 0.25 | 0.25 | ||||
Protection class | All profile | IP40 | IP40 | |||
Connection port | IP20 | IP20 | ||||
Installation environment | No obvious shock and vibration | |||||
Altitude(m) | ≤ 2000 | ≤ 2000 | ||||
Working temperature | -3.0--+70 | -3.0--+70 | ||||
Relative humidity | 30%-90% | 30%-90% | ||||
How to install | Install with H35-7.5/DIN35 stell mounting rail | |||||
Size(mm) (W*H*L) | W | 36 | 54 | |||
H | 90 | 90 | ||||
L | 67.6 | 67.6 | ||||
Weight (KG) | 0.27 | 0.4 | ||||
Nominal PV system volt | 600V | 1000V | 1200V |
MCOV(UCPV) | 700V DC | 1170V DC | 1200V DC |
Max system discharge Current (8/20us) (Imax) | 40KA | 40KA | 30KA |
Volt protection leve (UP) | ≤ 2.5KV | ≤ 4.0KV | ≤ 4.5KV |
Volt protection Level at 5KA (UP) | ≤ 2.0KV | ≤ 3.5KV | ≤ 4.0KV |
Integrate fuse breaking capacity/interrupting rating | 30KA/1000V DC | 30KA/1000V DC | 30KA/1200V DC |
Technology | Short-circuit interruption (SCI) overcurrent protection | ||
Operating temperature range | -40 to +80 | ||
Nominal discharge current | 12.5KA | ||
Response time (ta) | <25ns | ||
Operating state/fault indication | Green (good) / Red (replace) | ||
Mounting | 35mm DIN Rail per EN 60715 | ||
Degree protection | IP20 | ||
capacity | 3 modules DIN 43880 | ||
| DC SPD | |||||
| No. | name | specification | Packing qty | G.W/ctn | Carton Diamension |
| 6 | PV-SPD DC SPD/Dehn/18mm | 2P/20~40KA/DC500V | 60 | 18.5 | 42*32*16.5 |
| 2P/20~40KA/DC1000V | 60 | 18.5 | 42*32*16.5 | ||
| 3P/20~40KA/DC1000V | 40 | 18.3 | 42*32*16.5 | ||
| 2P/20~40KA/DC 800V | 60 | 19 | 42*32*16.5 | ||
| 3P/20~40KA/DC 1200V-1500V | 40 | 19.3 | 42*32*16.5 | ||
| AC SPD | |||||
| 1 | SPD/OBO/18MM | 4P/5-10KA | 30 | 16.6 | 42*32*16.5 |
| 4P/10-20KA | 30 | 16.6 | 42*32*16.5 | ||
| 4P/20-40KA | 30 | 16.6 | 42*32*16.5 | ||
| 4P/30-65KA | 30 | 17 | 42*32*16.5 | ||
| 4P/40-80KA | 30 | 17.5 | 42*32*16.5 | ||

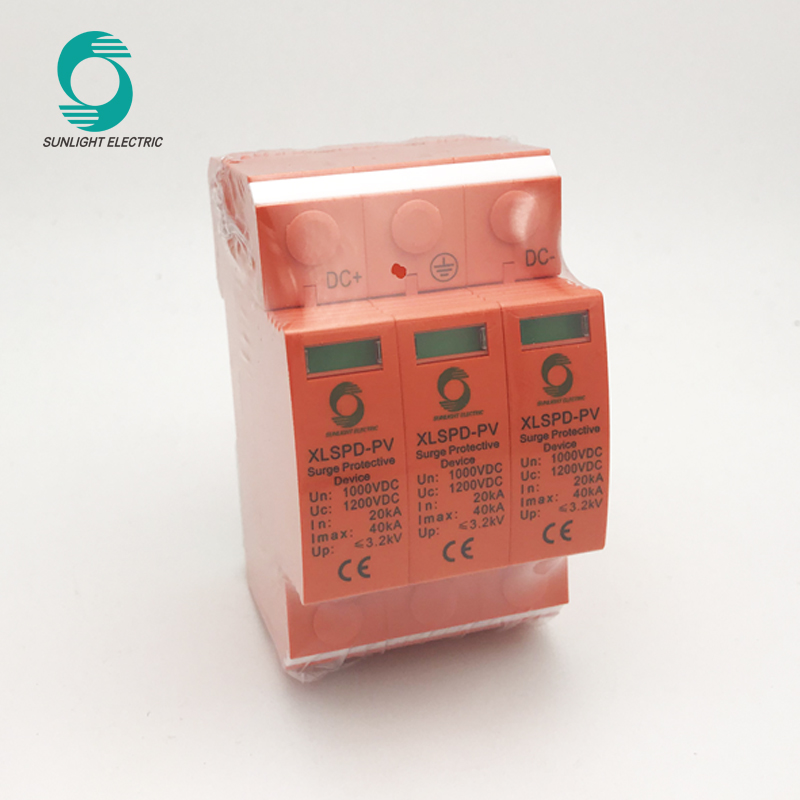

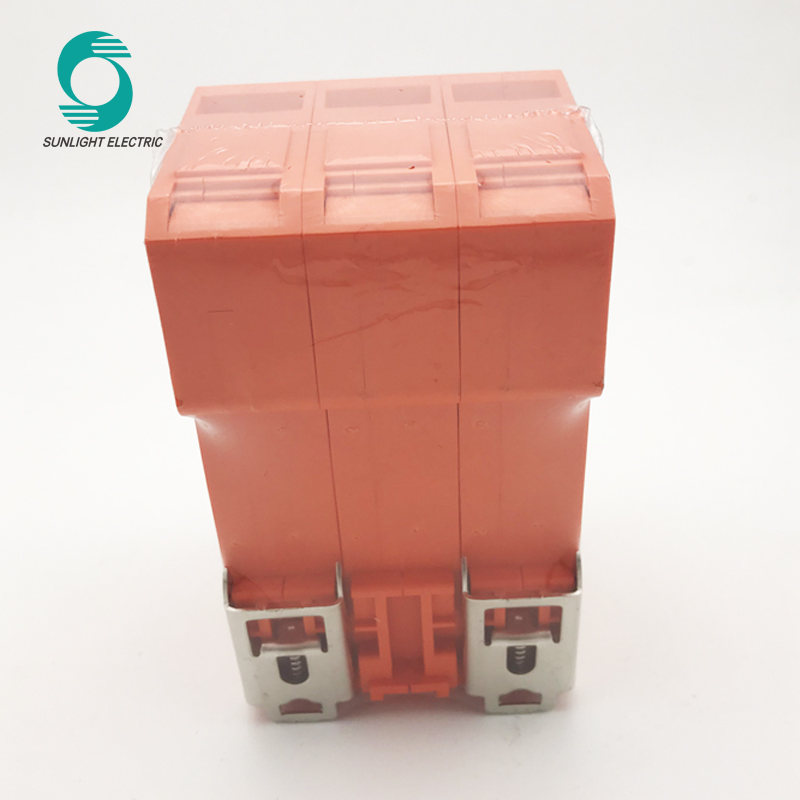

4.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge arrester surge protective device SPD Pictures
7.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V surge arrester surge protective device SPD Packing
|
5.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge arrester surge protective device SPD Shipping
|
6.XLSPD-PV CE Solar PV 20KA-40ka 2P DC 500V 800V 3P DC 1000V surge arrester surge protective device SPD After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of solar products and electronic environmental protection products.
These lines cover solar panel, solar charge controller, on/off solar inverter, solar home system, solar light kit, XLSPD-PV CE Solar PV 20KA-40ka 2P 3P DC 500V surge arrester surge protective device SPD etc. We focus on all types of solar products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
