Home > Products > Worldsunlight DC 800V 20AMP 6kA 3P 3 pole Non Polarity dc miniature circuit breaker mcb

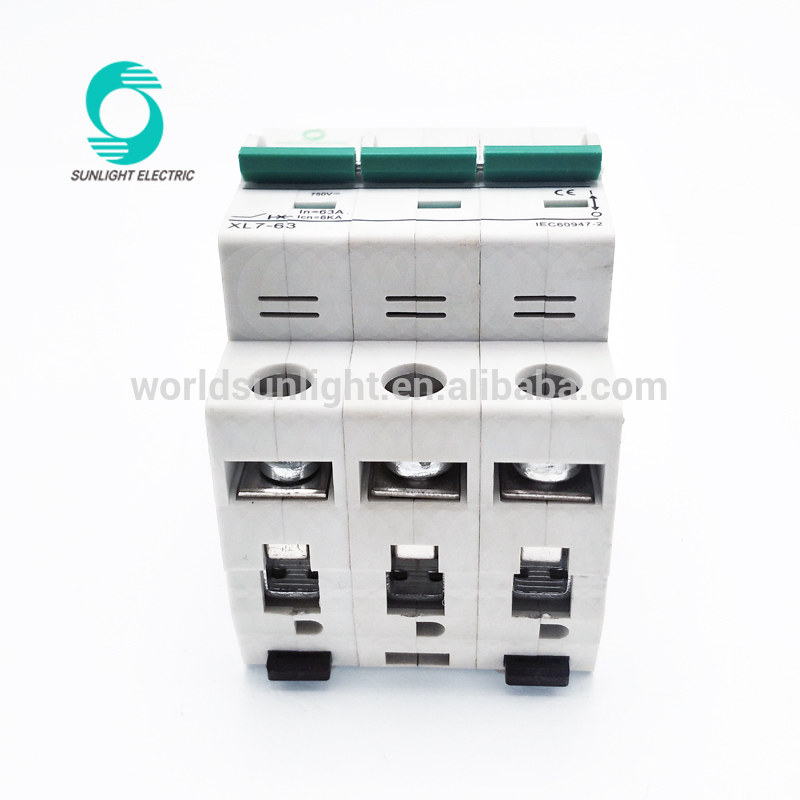

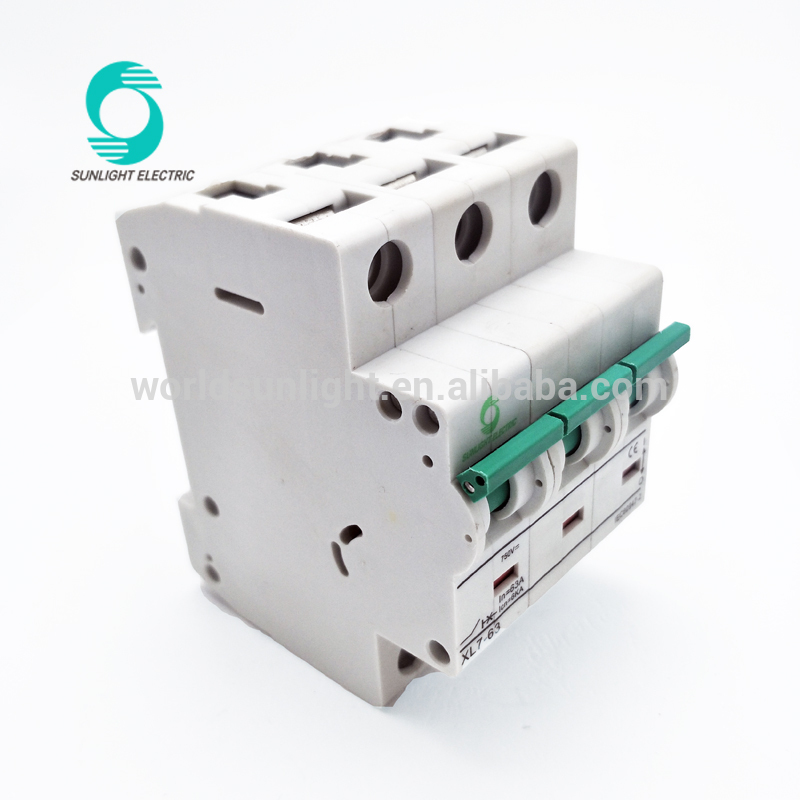

Worldsunlight DC 800V 20AMP 6kA 3P 3 pole Non Polarity dc miniature circuit breaker mcb
Click on the image to view the original image
Product: views:14Worldsunlight DC 800V 20AMP 6kA 3P 3 pole Non Polarity dc miniature circuit breaker mcb
Branch: Sunlight(XiangLang)/OEM
Type: Mini
Size: 8X8X6 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:55
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sunlight(XiangLang)/OEM
Model Number:
XL7-63
Type:
Mini
Poles Number:
3
Rated current:
20A
Rated voltage:
750V
Rated breaking capacity:
6kA
Certificate:
CE/ISO9001/IEC
Standard:
IEC 60947-2/IEC 60898-2/GB10963.2/GB14048.2
Color:
White
Material:
Imported Material
Mechanical Life:
10000 Times
Ambient temperature:
-5℃ ~+40℃
Application:
Circuit-breaking

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X8X6 cm
Single gross weight:
0.383 kg
Package Type:
Inner box:22.5*9*8.5cm,1.48KG/4pcs
Lead Time:
Quantity(Piece)1 - 1000>1000
Est. Time(days)7To be negotiated
Related Products

         MC4 connector                          DC fuse                                    DC Spd                                DC Isolator

             Solar cable                                  WSPVY2                                WSPVY3                                WSPVY4

           XM1-125PV                               WSPVT2                                 WSPVT3                                  WSPVT4


              XL7-63 1P                               XL7-63 2P                             XL7-63 3P                              XL7-63 4P

Product Description

Dc Mcb Application:

XL7-63 Solar system DC MCB,apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

Dc Mcb Features:

1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic

Dc Mcb Tech Parameter:

Item
Dc circuit breaker
Model Number
XL7-63
Pole
1P,2P,3P,4P
Rated Current(In)
1A,3A,6A,10A,16A,20A,32A,40,50A,63A
Rated Operating Voltage
DC12V-DC1200V
Standard
IEC/EN60947
Breaking Capacity
6KA
Characteristic Curve
B,C,D
Working Temperature
-5 to +40
Protection Degree
IP20
Installation
35MM DIN RAIL
Detailed Images
Shipment

DC MCB Delivery Time:

Inner box:22.5*9*8.5cm,1.48KG/3pcs 4P dc mcb

DC MCB Delivery Time:

3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

DC MCB Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

FAQ

Q: If I'm interested in your DC MCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Your DC MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: Our DC MCB is special for Solar system all the parts in the MCB are high quality customized.Not all the DC MCB are Solar MCB!

Q:Can I get a sample before the order because I really don't how is your DC MCB quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your DC MCB?
A:We offer two year warranty for our customer.
