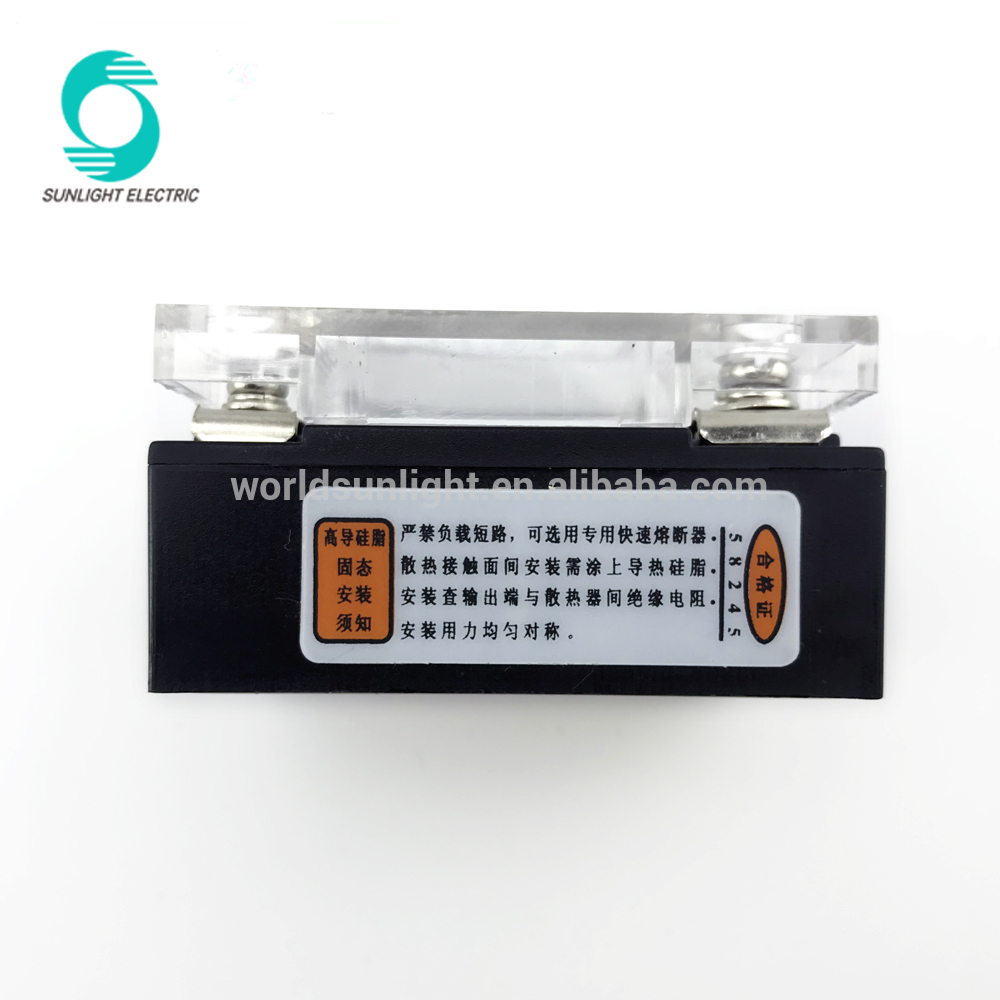

Xianglang S4890D SSR-90DA 90Amp Single Phase AC/DC ssr solid state relay

Click on the image to view the original image

Product：	views：4Xianglang S4890D SSR-90DA 90Amp Single Phase AC/DC ssr solid state relay
Branch：	Sunlight(XiangLang)/OEM
Size：	4X2X3 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:55

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Sunlight(XiangLang)/OEM

Model Number:: SSR-90DA

Theory:: Solid State Relay

Usage:: General Purpose

Size:: Miniature

Protect Feature:: Sealed

Contact Load:: Low Power

Certifications:: CE/ISO9001/ROHS

Color:: Black

Control Voltage:: 3-32VDC

Load Voltage:: 24-480VAC

Load Current:: 90A

Indicator:: LED status

Contact material:: Silver Alloy

Product name:: SSR Solid State Relay

Solid State Relays:: Singlee Phase Solid State Relay

Application:: Widely Used

Packaging & Delivery

Selling Units:: Single item

Single package size:: 4X2X3 cm

Single gross weight:: 0.115 kg

Package Type:: 1 pcs per cartoon

Lead Time:: 5

Product Description

Application

Industrial automation installment, AC motor control, Intermediate relay,solenoid valve control, Numerical control machinery,external guidnance system,computer periphery connection, Illumination,stage lighting control, Electric stove,heating,warm control, street light,signal light,traffic light,Color photo enlargement, film processing equipment,injection machinery,automatic fire control and security system,etc.

Load Current	90A
Load Voltage	24-480VAC
Control Voltage	3-32VDC
Control Current	DC3-25mA
Ambient Temperature	-30~+75°C
Mounting Methods	Bolt
The Indicator	LED

Single Phase SSR:

Model Number	Control Voltage	Load Voltage	Output Current(A)
SSR-DA Type
SSR-10DA	3-32VDC	24-480VAC(can customize to be 660VAC or 1200VAC)	10A
SSR-25DA	3-32VDC	24-480VAC	25A
SSR-40DA	3-32VDC	24-480VAC	40A
SSR-60DA	3-32VDC	24-480VAC	60A
SSR-75DA	3-32VDC	24-480VAC	75A
SSR-80DA	3-32VDC	24-480VAC	80A
SSR-90DA	3-32VDC	24-480VAC	90A
SSR-100DA	3-32VDC	24-480VAC	100A
SSR-120DA	3-32VDC	24-480VAC	120A
SSR-DD Type
SSR-10DD	3-32VDC	5-60VDC(can customize to be 24-220VDC)	10A
SSR-25DD	3-32VDC	5-60VDC	25A
SSR-40DD	3-32VDC	5-60VDC	40A
SSR-60DD	3-32VDC	5-60VDC	60A
SSR-75DD	3-32VDC	5-60VDC	75A
SSR-80DD	3-32VDC	5-60VDC	80A
SSR-90DD	3-32VDC	5-60VDC	90A
SSR-100DD	3-32VDC	5-60VDC	100A
SSR-120DD	3-32VDC	5-60VDC	120A
SSR-AA type
SSR-10AA	80-280VAC	24-480VAC(can customize to be 660VAC or 1200VAC)	10A
SSR-25AA	80-280VAC	24-480VAC	25A
SSR-40AA	80-280VAC	24-480VAC	40A
SSR-60AA	80-280VAC	24-480VAC	60A
SSR-75AA	80-280VAC	24-480VAC	75A
SSR-80AA	80-280VAC	24-480VAC	80A
SSR-90AA	80-280VAC	24-480VAC	90A
SSR-100AA	80-280VAC	24-480VAC	100A
SSR-120AA	80-280VAC	24-480VAC	120A
SSR-VA Voltage Regulator type(by resistor)
SSR-10VA	500KΩ/ 1/4W	24-380VAC	10A
SSR-25VA	500KΩ/ 1/4W	24-380VAC	25A
SSR-40VA	500KΩ/ 1/4W	24-380VAC	40A
SSR-60VA	500KΩ/ 1/4W	24-380VAC	60A
SSR-75VA	500KΩ/ 1/4W	24-380VAC	75A
SSR-80VA	500KΩ/ 1/4W	24-380VAC	80A
SSR-90VA	500KΩ/ 1/4W	24-380VAC	90A
SSR-100VA	500KΩ/ 1/4W	24-380VAC	100A
SSR-120VA	500KΩ/ 1/4W	24-380VAC	120A

We can also supply the volatge regulator type(by voltage).Please feel free to contact me.
