Specifications
CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protector
1.Rated voltage:220V,380V
2.Pole:1~4
3.class B lightning proof
4.IEC61643-1
CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protector
 | |||
| XLSPD-20 2P 10-20kA | XLSPD-40 2P 20-40kA | XLSPD-60 2P 30-60kA | XLSPD-20 3P 10-20kA |
| |||
| XLSPD-60 3P 30-60kA | XLSPD-20 4P 10-20kA | XLSPD-40 4P 20-40kA | XLSPD-60 4P 30-60kA |
1. CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protector Applications and features
Application:
XLSPD series surge protection is suitable for TN-S,TN-C-S,TT,IT etc power supply system of AC 50/60Hz, 380V and below, installed on the joint of LPZOA zone or LPZOB and LPZ1 zone, which protects the electric network not shocked by the thunder and lightning, it"s design is according to GB18802.1, IEC61643-1.
Feature:
XLSPD series surge protection is suitable for B grade lightning proof,installed on the joint of LPZOA zone or LPZOB and LPZ1 zone,which protects the electric network not shocked by thr thunder or surge over voltage.LY1-B100,LY1-B80 are usually installed in low voltage main distribution box connected to the incoming end of the building.
2. CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protector
Parameters
| Type | XLSPD | |||||
| Protection Level: | B,C,D | |||||
| Rated Operating Voltage Un(V) | 380V/220V | |||||
| Max continuous operating voltage Uc/V | 275 | 320V | 385V | 385V | 385V | 420V |
| Voltage protection level up(KV) | ≤1.0 | ≤1.20 | ≤1.80 | ≤2.0 | ≤2.2 | ≤2.8 |
| Maximum discharge current Imax(8/20μs)KA | 10 | 20 | 40 | 60 | 80 | 100 |
| Nominal discharge current In(8/20μs)KA | 5 | 10 | 20 | 30 | 40 | 60 |
| Response times | ≤25 | |||||
| Test Stardard | IEC61643-1/GB18802-1 | |||||
| Operating Environment | -40 degree to + 85 degree | |||||
| Max Connection Line | 35mm2 hard wire/35mm2 strand wire copper line | |||||
| Recommended Connection Line | 16mm2 hard wire/25mm2 strand wire copper line | |||||
| Installation | Standard Rail 35mm | |||||
| Material of outer covering | Burning -proof Nylon | |||||
3. CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protector Dimensions
| |

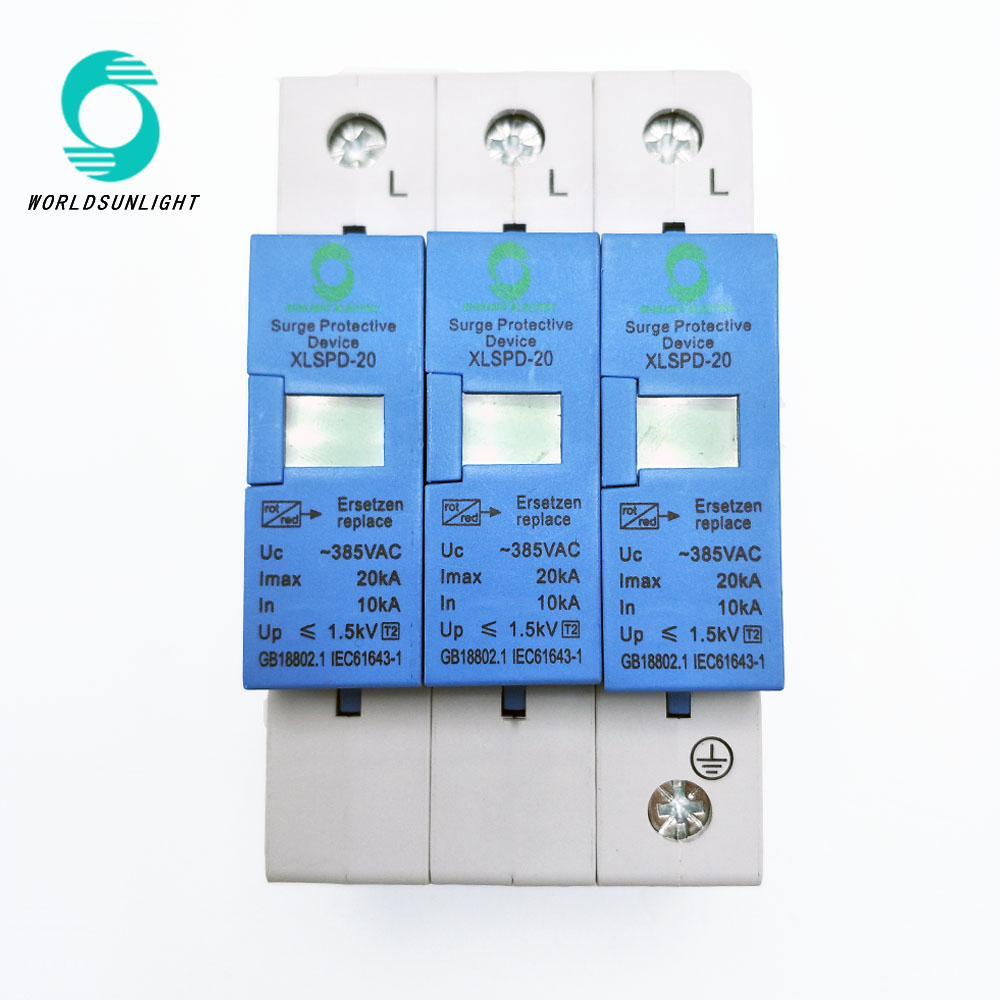

4. CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protectorPictures of product
|
|
|
|
5. CE XLSPD 3 phase 20KA-40KA 385Vac spd surge arrestors lightning surge protectorPackaging
|
Q1: Are you a manufacturer?
A1:yes. We have 5 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
