Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Worldsunlight(XiangLang)/OEM
- Model Number:
- XNC-125
- Type:
- Mini
- Poles Number:
- 4
- Product name:
- Dc Circuit Breaker
- Rated current:
- 63A 80A 100A 125A
- Rated voltage:
- 1000V
- Rated frequency:
- 50/60 Hz
- Standard:
- IEC 60947-2/IEC 60898-2/GB10963.2/GB14048.2
- Color:
- White
- Material:
- Imported Material
- Mechanical Life:
- 10000 Times
- Ambient temperature:
- -25℃ ~+40℃
- Application:
- Circuit-breaking
Supply Ability
- Supply Ability:
- 888834 Piece/Pieces per Month
Packaging & Delivery

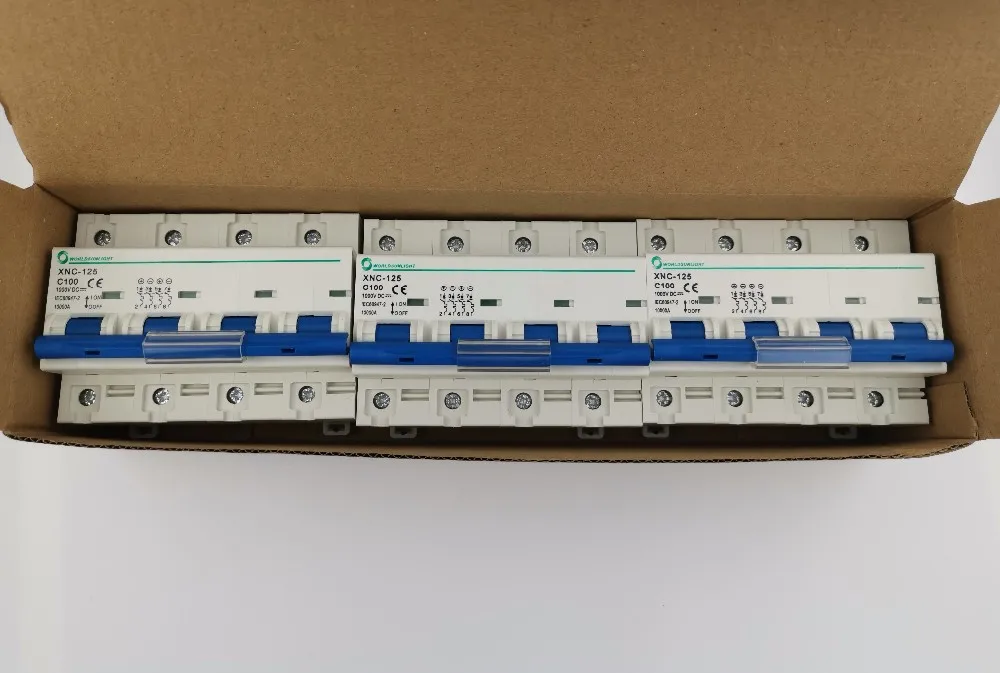

- Packaging Details
- 30 pcs per cartoon/18.6kg
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
Product Description
Application:
XNC-125 high breaking capacity circuit breaker is specially for solar PV system. The current is form 63A to 125A and voltage up to 1000VDC. Standard according to IEC/EN60947-2.
Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
Item | DC CIRCUIT BREAKER |
Model Number | XNC-125 |
Pole | 1P 2P 3P4P |
Rated Current In | 63A 80A 100A 125A |
Rated Operating Voltage | 250VDC 500VDC 750VDC 1000VDC |
Standard | IEC/EN60947-2 |
Breaking Capacity | 10KA |
Electrical Life | 6000 Times |
Mechanical Life | 20000 times(C.O.) |
