Specifications
IP65 2 IN 1 OUT 2 Strings 25A 1000V DC Off grid solar panel PV Array Plastic Combiner Box
1.IP65 waterproof
2.DC 1000V,25A
3.High quality
IP65 2 IN 1 OUT 2 Strings 25A 1000V DC Off grid solar panel PV Array Plastic Combiner Box

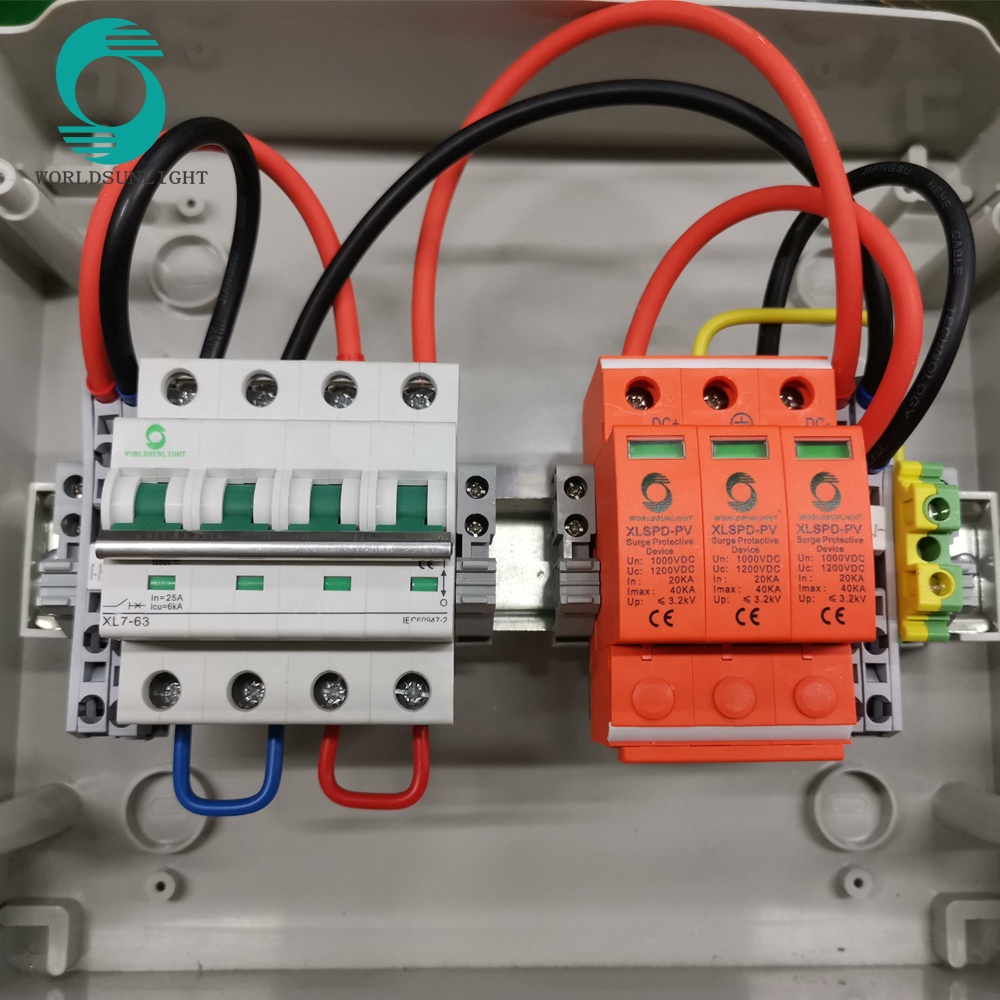

Including 1 pcs 4p dc mcb/1pcs 3p dc spd.
1. IP65 2 IN 1 OUT 2 Strings 25A 1000V DC Off grid solar panel PV Array Plastic Combiner Box Application
Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.
Production and package
2. IP65 2 IN 1 OUT 2 Strings 25A 1000V DC Off grid solar panel PV Array Plastic Combiner BoxSpecifications
Model | WSDB-PV16 | WSDB-PV12 | WSDB-PV10 | WSDB-PV8 | |||
Input channel number | 13~16 | 11~12 | 9~10 | Less than 8 | |||
Max. input voltage | 1000Vdc | ||||||
Input current of each channel | 0~20A | ||||||
Max. output current | 160A | 120A | 100A | Less than 80A | |||
Size of the input waterproof terminal | PG9/PG11 | ||||||
Size of the output waterproof terminal | PG21~PG29 | PG19~PG25 | PG16~PG21 | PG13.5~PG19 | |||
Monitoring module | Detect current of each channel, bus voltage, status of circuit breaker and lightning protector, box temperature | ||||||
Communication mode/protocol | RS485 bus/standard MODBUS-RTU protocol | ||||||
Prevent-reverse function | Can be equipped with modularized and encapsulated prevent-reverse diode (optional) | ||||||
Temperature and humidity | Operating temperature: -40~+85℃, humidity 95%, places free of dew or corrosive gas. | ||||||
Altitude | ≤4000m | ||||||
Power consumption of monitoring module | Working hours≤8W | ||||||
Auxiliary power supply | Auxiliary power supply: AC85V~265V/DC24V(±10%)/DC200V~1000V | ||||||
Box material | Hot galvanized steel/stainless steel/cold rolled sheet/engineering plastics | ||||||
Ingress protection | IP65 | ||||||
Volume (W×H×D) | 800mm*500mm*180mm | 720mm*500mm*180mm | 690mm*500mm*180mm | 650mm*500mm*180mm | |||
Weight | 10~35kg | ||||||
3. IP65 2 IN 1 OUT 2 Strings 25A 1000V DC Off grid solar panel PV Array Plastic Combiner BoxFunctional characteristics
1.Ingress protection of the combiner box reaches IP65, it is featured with waterproof, dustproof, rustproof, salt fog proof, can be used outdoors.
2.Put in 24 channels of PV strings at most.
3.Positive and negative poles of each PV string are equipped with special fuse wire, which protects the PV string from fault, use matchable fuse holder and fuse wire to reduce later maintenance cost for owner, and guarantee safety of maintenance personnel.
4.It uses photovoltaic purposed HV lightning protector to carry out protection to the positive pole-to-ground and negative pole-to-5.ground of bus after combination, the continuous operating voltage (Uc) reaches 1000VDC.
5.The power supply module in the combiner box can accept PV voltage as high as PV Intelligent Lightning Protection Combiner Box.
6.The measure-control module of combiner box adopts high-performance Honeywell Hall elements (DC CT sensor), which 8.carries out monitoring, alarm and local fault location to each PV string, meanwhile, it measures the temperature inside the combiner box, carries out status inspection to the lightning protector and output circuit breaker.
7.Monitoring module in the combiner box has function of digital display, it indicates the current of each PV string, bus voltage, temperature inside the box, status of circuit breaker and lightning protector, system power, equipment address and other relevant information.
8.It is equipped with RS485/MODBUS-RTU serial port communication.
9.All external interfaces have lightning protection, Solar power generation system solar panel combiner box.
10.Receive and download the parameters of local monitoring device, and carry out analysis processing.
11.Working power supply for combiner box can be 220VAC/DC from outside, also can be supplied by the self-contained power supply of combiner box. When using the self-contained power supply, users need not to arrange additional wiring for the power supply, Solar power generation system solar panel combiner box supply.

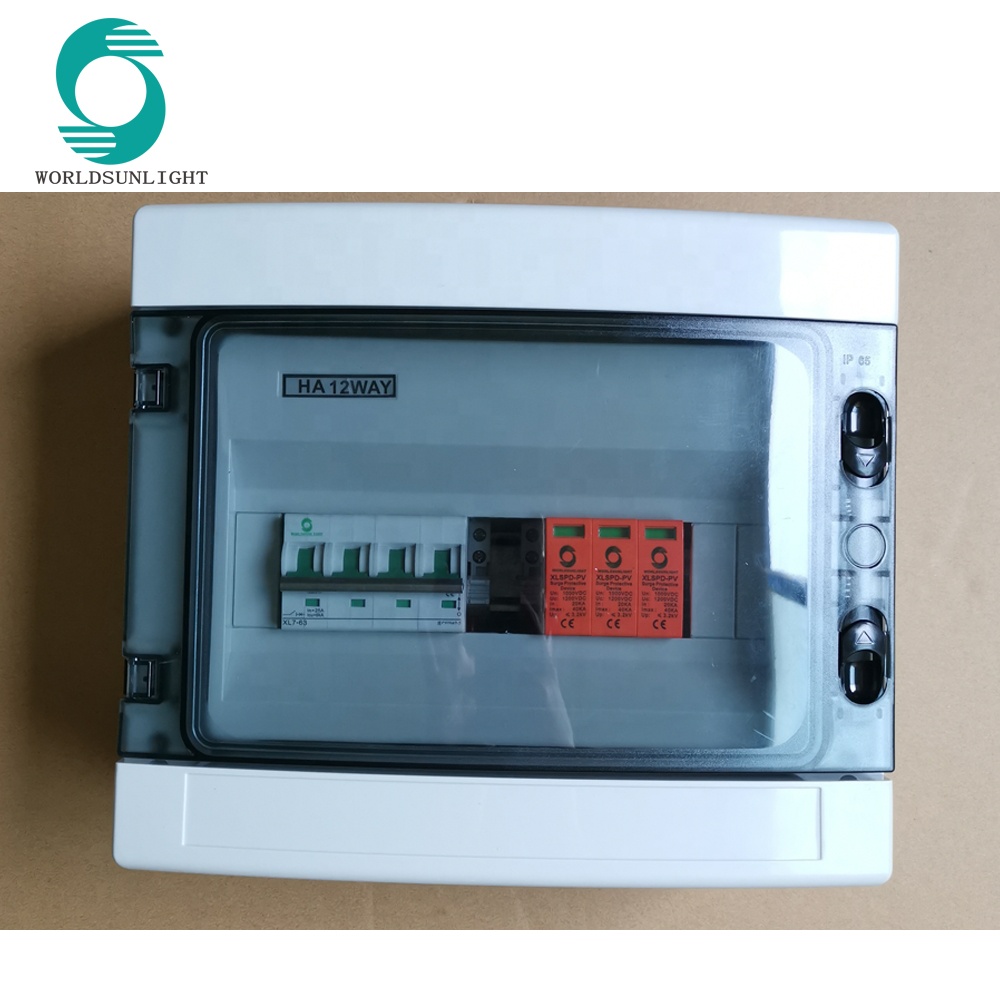

4. IP65 2 IN 1 OUT 2 Strings 25A 1000V DC Off grid solar panel PV Array Plastic Combiner BoxPictures
|
|
|
5. WSDB-PV2/1 IP65 2 INOUT 1 OUTPUT 2 Strings 16A 1000V DC Solar PV Array Combiner Box Packing
|
6. WSDB-PV2/1 IP65 2 INOUT 1 OUTPUT 2 Strings 16A 1000V DC Solar PV Array Combiner Box After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of solar products and electronic environmental protection products.
These lines cover solar panel, solar charge controller, on/off solar inverter, solar home system, solar light kit, solar cable etc. We focus on all types of solar products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
