Home > Products > LAY5-EJ21 selector for elevator electric long handled black button

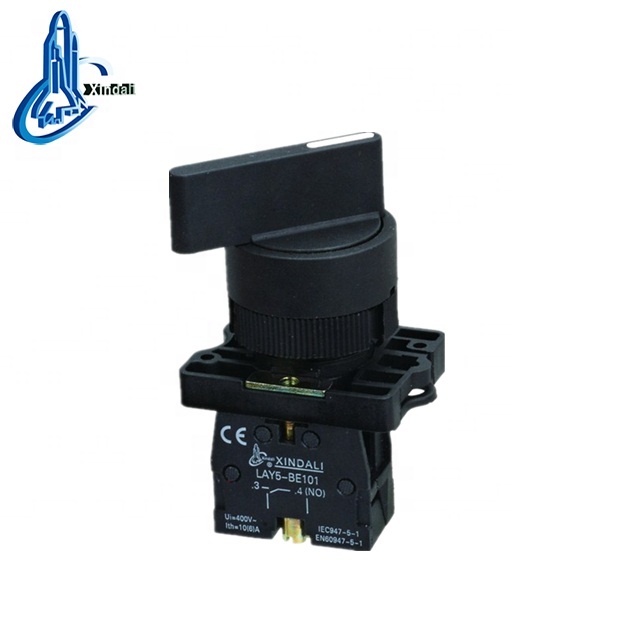

LAY5-EJ21 selector for elevator electric long handled black button
Click on the image to view the original image
Product: views:4LAY5-EJ21 selector for elevator electric long handled black button
Branch: XINDALI
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
XINDALI
Model Number:
LAY5-EJ21
Protection Level:
IP45
Max. Current:
10A
Max. Voltage:
220V
Operation type:
2 Position
Material:
Plastic
Color:
Black
Certificate:
CQC CE ROHS ISO9001

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
43.5X24X37.5 cm
Gross weight per batch:
13.0 kg
Lead Time:
Quantity(Piece)1 - 240241 - 2400>2400
Est. Time(days)515To be negotiated
Product Description

Product Application

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Main technical parameter
Basic technical parameter of button
Basic technical parameter of signal lamp
Rated insulation
AC 600V(50Hz/60Hz)
Insulation resistance
≥50MΩ
Conventional heating current
10A
Contact resistance
≤25MinΩ
Insulation resistance
≥50MΩ
Pf withstand voltage
AC 2.5KV/min
Contact resistance
≤25MinΩ
Voltage wave
±20%
Mechanical life
100x10000
pushbutton
50x10000
selector switch
Brightness
60cd/m2
Electrical life
500x10000
pushbutton
25x10000
Selector switch
Continuous working life
10x10000h

Main Features

1)Surrounding temperature:-25℃~+55℃
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m

Use environment
