Product Description
Product Application

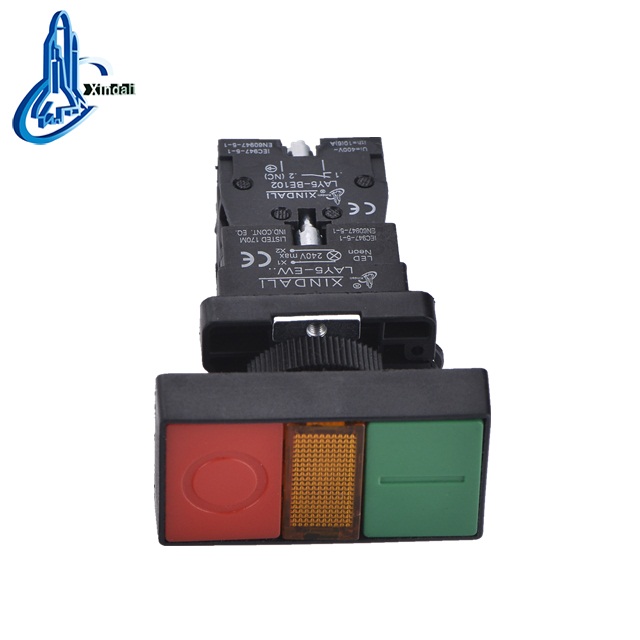

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Main technical parameter | ||||||||
Basic technical parameter of button | Basic technical parameter of signal lamp | |||||||
Rated insulation | AC 600V(50Hz/60Hz) | Insulation resistance | ≥50MΩ | |||||
Conventional heating current | 10A | Contact resistance | ≤25MinΩ | |||||
Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min | |||||
Contact resistance | ≤25MinΩ | Voltage wave | ±20% | |||||
Mechanical life | 100x10000 pushbutton | 50x10000 selector switch | Brightness | 60cd/m2 | ||||
Electrical life | 500x10000 pushbutton | 25x10000 Selector switch | Continuous working life | 10x10000h | ||||
Main Features
1)Surrounding temperature:-25℃~+55℃
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.
5) Altitude:≤2000m.
Use environment
Certifications
Our Company
Factory
Our Factory
Workshop
Our Workshop
Mold
Our Mold
Mold development
Our Mold development
Warehouse
Our Warehouse
Team
Our Team
Office
Our Office
Office
Our Office
Sample room
Our Sample room
Sample room
Our Sample room
Our Agent
Welcome to join us to be our agent!Conact us!
Packing & Delivery
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
