Home > Products > BS211B industrial control switches onoff switch plastic power push button

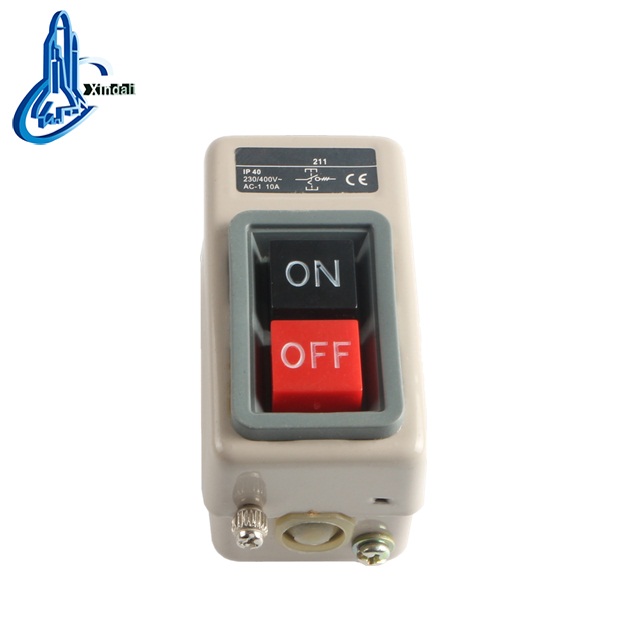

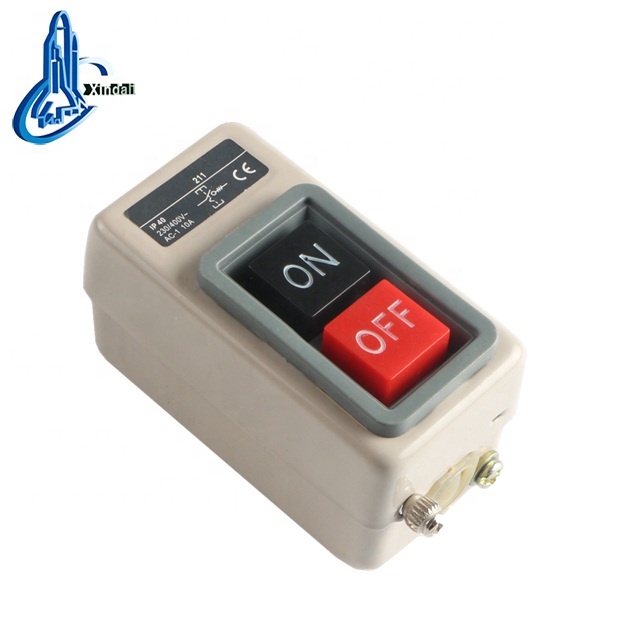

BS211B industrial control switches onoff switch plastic power push button
Click on the image to view the original image
Product: views:2BS211B industrial control switches onoff switch plastic power push button
Branch: xindali
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
xindali
Model Number:
BS211B
Protection Level:
ip40
Max. Current:
15a
Max. Voltage:
380v
Operation type:
On-off
Material:
Plastic
Color:
Gray
Certificate:
CQC CE ROHS ISO9001
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Inner box: 20 pcs 23.5*14*6.5 CM
Carton: 200 pcs 38*25*42.5 CM
Port
shanghai/ningbo
Lead Time:
Quantity(Pieces)1 - 100101 - 200 >200
Est. Time(days)515To be negotiated
Product Description

Three-pole power push button switch switch

- Closed type
- Applicable to the motor for directly starting run and breaking
- Applicable to infrequently turning on and off loaded current
- Widely used in machine tools, textile machinery, etc
- Accurate on-off
- Safe and reliable
- High intensity of machinery

- Output Contacts rated 30A at 250 VAC or 30 VDC
- Screw mounting method
- The bottom of the base shell fixed
- Screw terminal connections

Rated voltage
600V
Resistance load
30A
Applicable motor capacity
3.7KW
Dielectric strength
Between open contacts :1500VAC rms
Between contacts and case:2000VAC rms
Resistance insulation
≥ 100MΩ(DC 500V)
Product Show
