Home > Products > XDL21-BS542 water proof diameter 22mm emergency stop switch 542 emergency stop

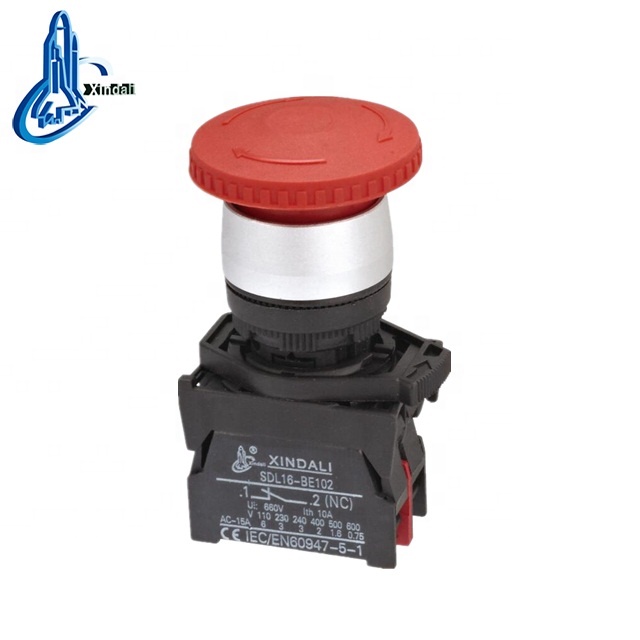

XDL21-BS542 water proof diameter 22mm emergency stop switch 542 emergency stop
Click on the image to view the original image
Product: views:4XDL21-BS542 water proof diameter 22mm emergency stop switch 542 emergency stop
Branch: xindali
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:33
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
xindali
Model Number:
XDL21-BS542
Protection Level:
ip65
Max. Current:
10a
Max. Voltage:
220v
Operation type:
Emergency Stop Button
Material:
Plastic
Color:
Red
Certificate:
CQC CE ROHS ISO9001
Head shape:
Mushroon

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
53X23X35 cm
Gross weight per batch:
19.0 kg
Lead Time:
Quantity(Piece)1 - 240241 - 2400>2400
Est. Time(days)515To be negotiated
Product Description
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Basic Characteristic
Conforming to standards as
IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature
operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity
35~85%RH
Vibration frequency
Conforming to IEC 68-2-6
Impact resistance
Conforming to IEC 68-2-27
Pollution grade
3
Installation sort
ClassⅢ
Protection grade
Ordinary:IP40 IP54
Protection:IP65 IP66 IP67 IP68
Mechanical life
pushbutton:300*10 push and pull type
emergency button:30*10
Fastening torque
0.8Nm(MAX:1.2Nm)
Product Show
