Home > Products > LAY4-EJ21handle switch electric long handled buttons handle plastic

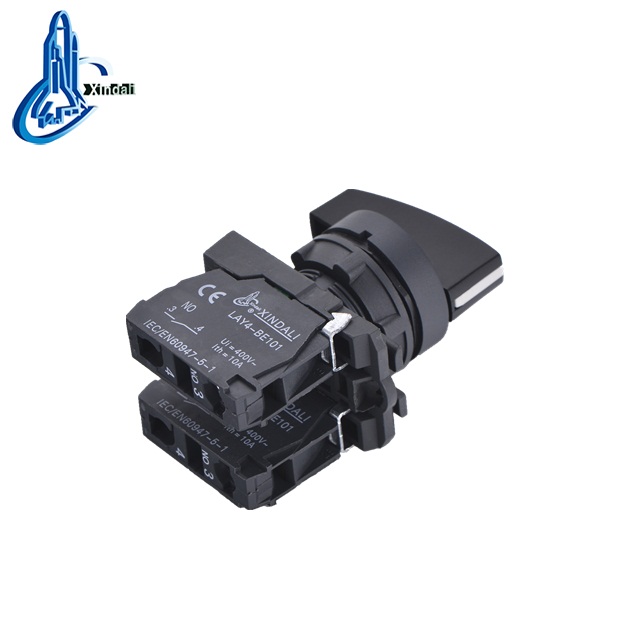

LAY4-EJ21handle switch electric long handled buttons handle plastic
Click on the image to view the original image
Product: views:1LAY4-EJ21handle switch electric long handled buttons handle plastic
Branch: xindali
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
xindali
Model Number:
LAY4-EJ21
Protection Level:
ip54
Max. Current:
10a
Max. Voltage:
220v
Operation type:
3 Position
Material:
Plastic
Head shape:
Long Handle Knob Pushbutton Switches
Color:
Black
Certificate:
CQC CE ROHS ISO9001

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
43.5X24X37.5 cm
Gross weight per batch:
12.0 kg
Lead Time:
Quantity(Piece)1 - 240241 - 2400>2400
Est. Time(days)515To be negotiated
Product Description

Product Application

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Main technical parameter
Basic technical parameter of button
Basic technical parameter of signal lamp
Rated insulation
AC 600V(50Hz/60Hz)
Insulation resistance
≥50MΩ
Conventional heating current
10A
Contact resistance
≤25MinΩ
Insulation resistance
≥50MΩ
Pf withstand voltage
AC 2.5KV/min
Contact resistance
≤25MinΩ
Voltage wave
±20%
Mechanical life
100x10000
pushbutton
50x10000
selector switch
Brightness
60cd/m2
Electrical life
500x10000
pushbutton
25x10000
Selector switch
Continuous working life
10x10000h

Main Features

1)Surrounding temperature:-25℃~+55℃
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m

Use environment
Certifications
Our Company

Factory

Our Factory

Workshop

Our Workshop

Mold

Our Mold

Mold development

Our Mold development

Warehouse

Our Warehouse

Team

Our Team

Office

Our Office

Office

Our Office

Sample room

Our Sample room

Sample room

Our Sample room
Our Agent
Welcome to join us to be our agent!Conact us!
Packing & Delivery
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
