Home > Products > Manufacturer Sale Good Quality Waterproof IP67 Selector Push Button Switch with LED SDL22-CK3365

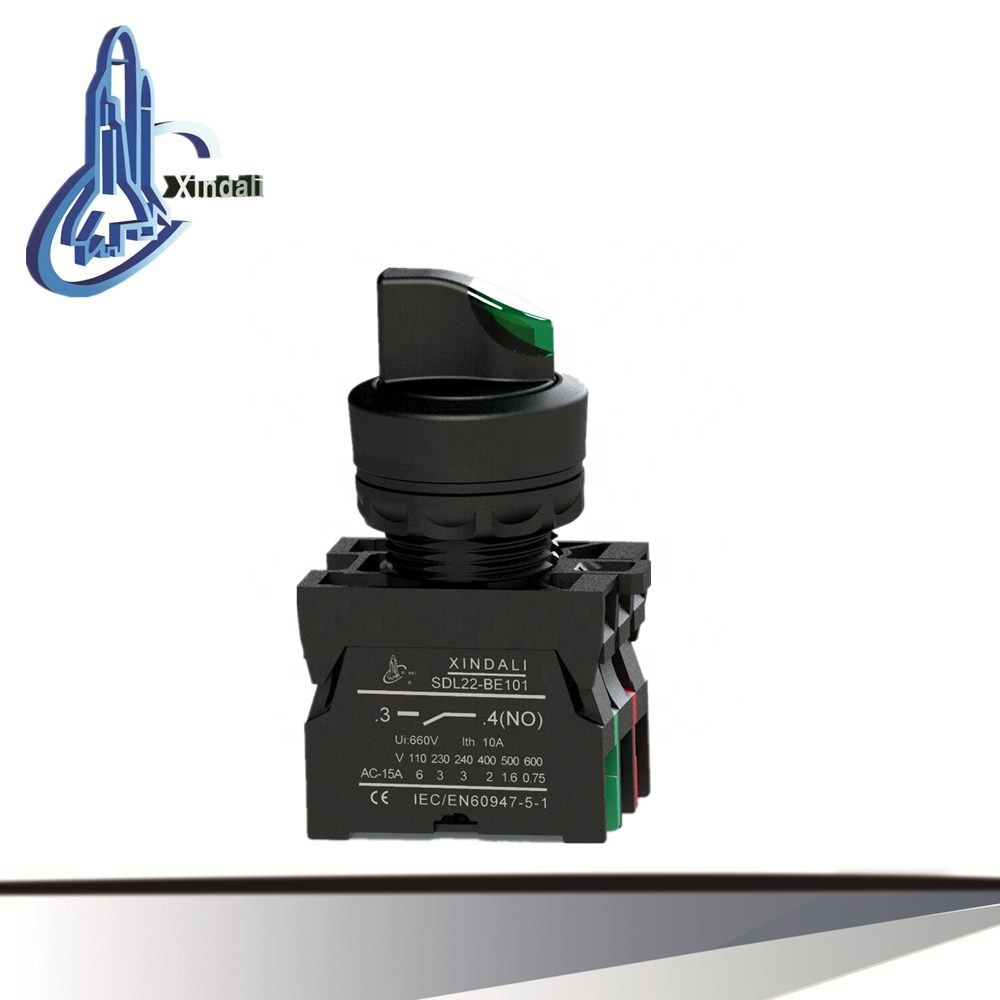

Manufacturer Sale Good Quality Waterproof IP67 Selector Push Button Switch with LED SDL22-CK3365
Click on the image to view the original image
Product： views：1Manufacturer Sale Good Quality Waterproof IP67 Selector Push Button Switch with LED SDL22-CK3365
Branch： xindali
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:34
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
xindali
Model Number:
SDL22-CK3365
Protection Level:
IP65
Max. Current:
10A
Max. Voltage:
380V
Color:
Black
Material:
Plastic
Operation type:
Self-locking Momentory
Certificate:
CQCCERoHS ULISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Port
ningbo/shanghai
Product Description

Product Application

The push buttton series are used in controlling circuit of AC voltage up to 660V/AC 50Hz or 60Hz.rated voltage below 415V and DC voltage below 250V.Which are applied to CNC machine,machinery,power sector,telecommunicqations,shipping metallurgy and chemical engineering,etc.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.The main body of the push button is alloy and plastic.
The signal lamp serial are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz(60Hz),and the rated DC voltage below 380V,It is used as indicating signals,warning signals and emergency signals,etc.The product confirms to the standards of GB/T14048.1,GB/T14048.5 and IEC60947-5-1.

Basic Characteristic
Conforming to standards as
IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature
operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity
35~85%RH
Vibration frequency
Conforming to IEC 68-2-6
Impact resistance
Conforming to IEC 68-2-27
Pollution grade
3
Installation sort
ClassⅢ
Protection grade
Ordinary:IP40 IP54
IEC60947-5-1:GB/T14048.GB14048.5
Mechanical life
pushbutton:300*10 push and pull type emergency button:30*10
Fastening torque
0.8Nm(MAX:1.2Nm)
Certifications
Our Company

Factory

Our Factory

Team

Our Team

Warehouse

Our Warehouse

Workshop

Our Workshop

Our Agent

Welcome to join us to be our agent!

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
