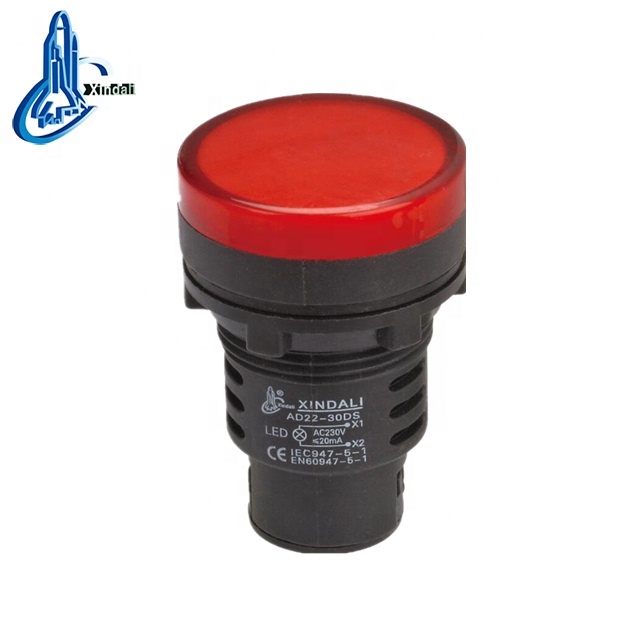

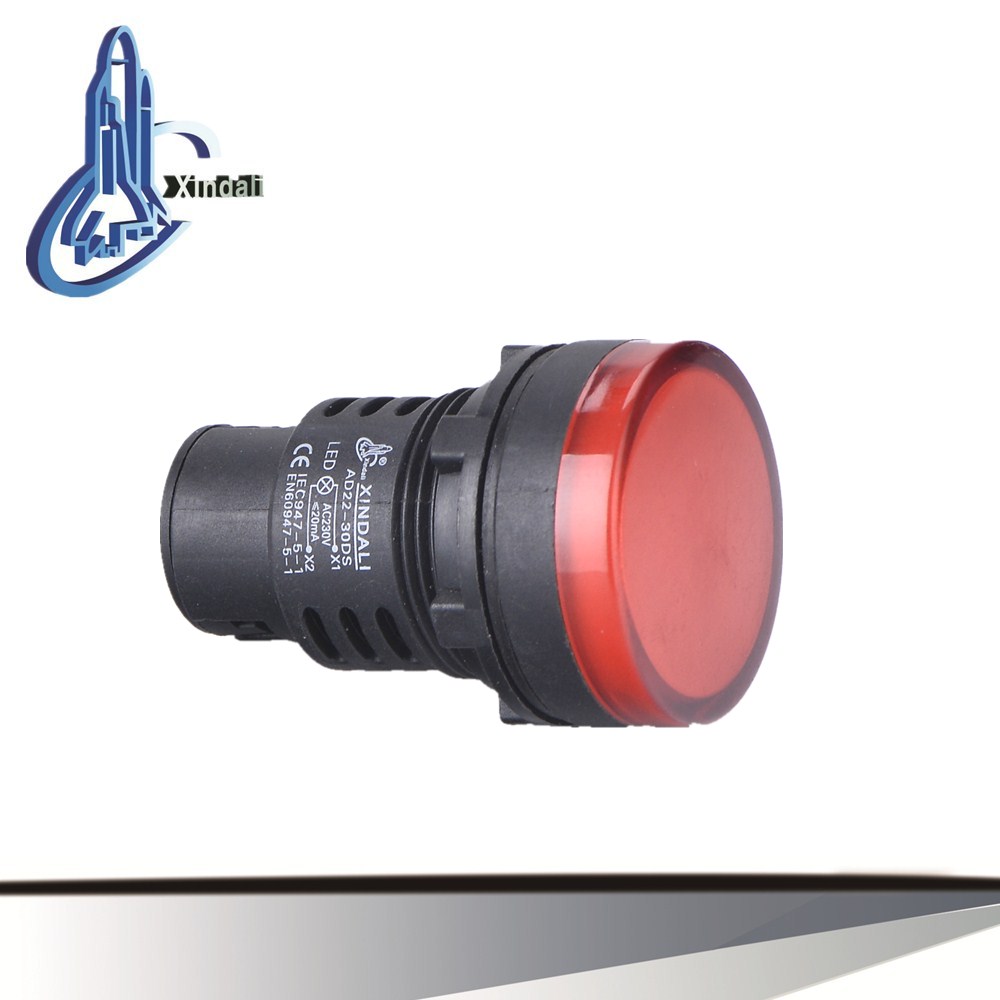

high quality LED dc indicator light/220v ad22 led signal lamp AD22-30DS
Click on the image to view the original image
Product: views:1high quality LED dc indicator light/220v ad22 led signal lamp AD22-30DS
Branch: xindali
Type: Equipment Indicator Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:34
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED
Input Voltage(V):
3V~380V
Lamp Power(W):
0.5
Lamp Luminous Flux(lm):
100cd/m2
Lamp Luminous Efficiency(lm/w):
98
CRI (Ra):
98
Color Temperature(CCT):
Cool White
Beam Angle(°):
Signal Light
IP Rating:
IP54
Certification:
CCC, CE, CQC, RoHS, UL
Emitting Color:
Red
Lamp Body Material:
Plastic
Base Type:
BA9s
Place of Origin:
Zhejiang, China
Brand Name:
xindali
Panel mounting hole:
22mm
Color:
Red Green Yellow Blue White
Terminals:
Pin Terminal Indicating Lamp
Material:
Plastic Signal Lamp
LIFE:
25000h(red Light)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Port
ningbo/shanghai
Product Description

D22(LED)series of indicator is equally used LED shining chip as light source.Because of long life,low consumption,small volume and light weight,it is a new tpye of product replaced the older incandescent lamp and indicator of neon lamp.AD22 indicators are pioduced by our factory enjoying following characters:high brighness,good reliability,beautiful shape and careful manufactured.Products are well praised by lots of clients. In order to fit in with top quailly and aestheticdemand of user,we develop AD22-22B,C,D,E,G,Hdouble-color lamp,position indicator,shining buzzer and mini short indicator,as well as design shape of AD22-22G/22GS series button and it is possible to meet all kinds of international srandard Lampshade,which is made of polycarbonate with high intension and enjoying better anti-surge performance,and bolt-type connector designed will make it safer and more convenient.All improvement will be provided to make your choice more convenient and your design perfect.

Applicable environment:

1) Surrounding temperature:-25℃~+55℃.
2) Relative humidity:≤98%.
3)It can normally work under theconditions of 2~80Hz vibration frequency and 0.7g/h accelerated speed.
4) Pollution grade:III;Installed sort:III.
5) It is possible to work under the moist tropical environment if there is a "TH" sign.

Voltage of working frequency
2.5kV(AC valid value),1min
Insulated resistance
≥2MΩ
Voltage wave allowed by AC indicator
±20%
Continual working life
≥30000h
Brightness
≥60cd/m2
Index of leakage CT1
≥100
Protection grade is IP40,and it is possible to be made to up to IP67
Using frequency:
AC50~60Hz
