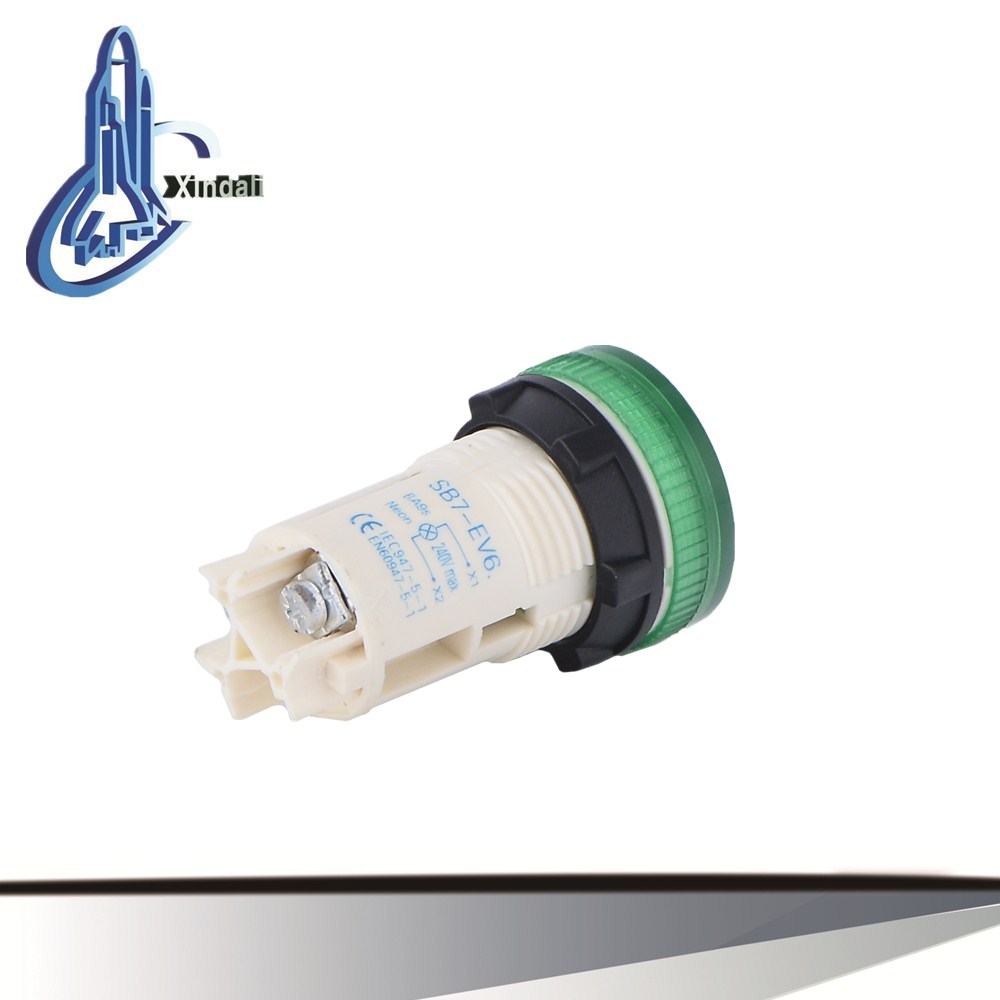

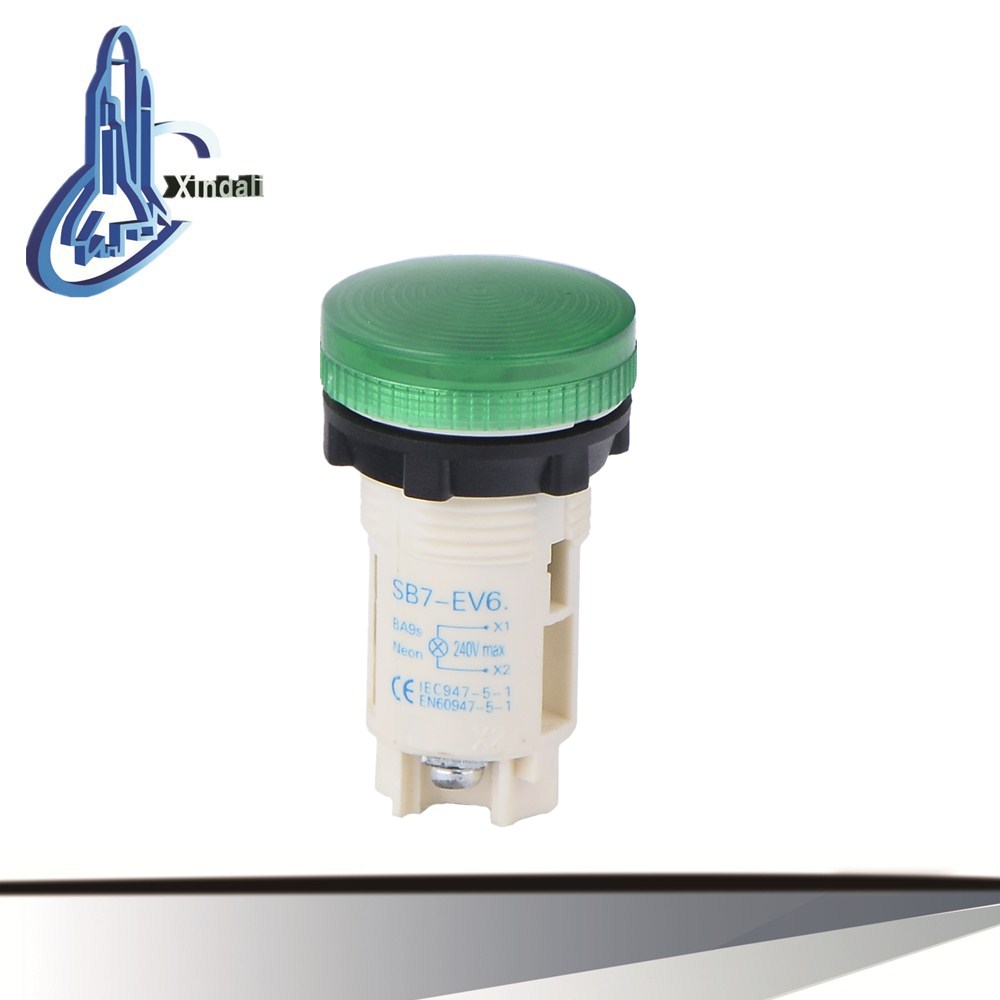

Xindali SB7-EV63 Signal Lamp Indicator Lamp
Click on the image to view the original image
Product： views：2Xindali SB7-EV63 Signal Lamp Indicator Lamp
Branch： XINDALI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
XINDALI
Model Number:
SB7-EV63
Protection Level:
IP65
Max. Current:
10A
Max. Voltage:
380V
Color:
Green
Operation type:
Momentary
Material:
Plastic
Certificate:
ROHS SGS ISO9001/14001
Product name:
Electrical Push Button
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10pcs in inner box
500pcs in outer carton box
Port
shanghai/ningbo
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)8To be negotiated
Product Description

Xindali SB7-EV63 Signal Lamp Indicator Lamp

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances
circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.

Main technical parameter
Basic technical parameter of button
Basic technical parameter of signal lamp
Rated insulation
AC 600V(50Hz/60Hz)
Insulation resistance
≥50MΩ
Conventional heating current
10A
Contact resistance
≤25MinΩ
Insulation resistance
≥50MΩ
Pf withstand voltage
AC 2.5KV/min
Contact resistance
≤25MinΩ
Voltage wave
±20%
Mechanical life
100x10000
pushbutton
50x10000
Selector switch
Brightness
60cd/m2
Electrical life
500x10000
pushbutton
25x10000
selector switch
Continuous working life
10x10000h

Work environment

1)Surrounding temperature:-25℃~+55℃
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.
5) Altitude:≤2000m.
