Home > Products > industrial flush push button switch with waterproof cover LAY5-BP31

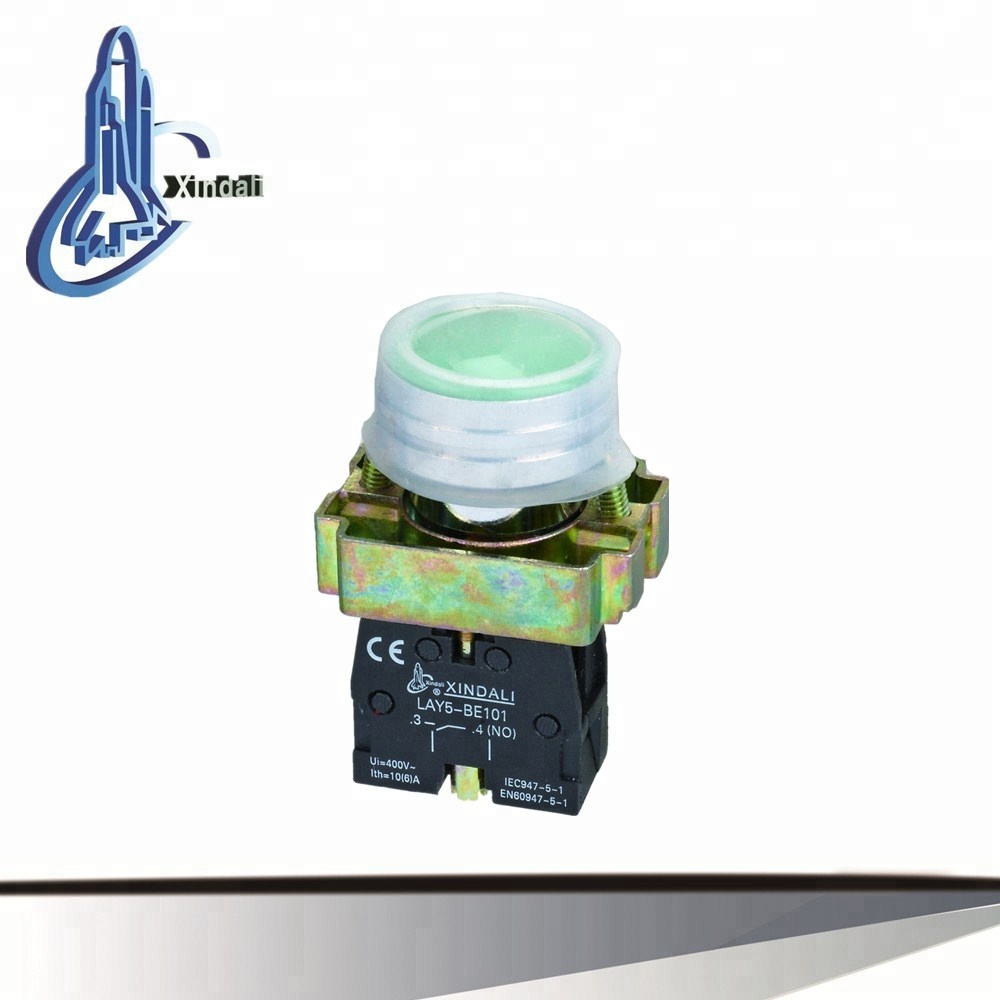

industrial flush push button switch with waterproof cover LAY5-BP31
Click on the image to view the original image
Product： views：1industrial flush push button switch with waterproof cover LAY5-BP31
Branch： XINDALI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
XINDALI
Model Number:
LAY5-EP31
Protection Level:
IP65
Max. Current:
10A
Max. Voltage:
380V
Material:
MATEL
Color:
Green
Operation type:
Self-locking
Certificate:
ROHS SGS ISO9001/14001
Product name:
Electrical Push Button
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs/box;
240pcs/ctn;
17kg/15.5kg;
43.5cm*24cm*28cm.
Port
SHANGHAI/NINGBO
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)10To be negotiated
Product Description

Product Application

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances
circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.

Main technical parameter
Basic technical parameter of button
Basic technical parameter of signal lamp
Rated insulation
AC 600V(50Hz/60Hz)
Insulation resistance
≥50MΩ
Conventional heating current
10A
Contact resistance
≤25MinΩ
Insulation resistance
≥50MΩ
Pf withstand voltage
AC 2.5KV/min
Contact resistance
≤25MinΩ
Voltage wave
±20%
Mechanical life
100x10000
pushbutton
50x10000
selector switch
Brightness
60cd/m2
Electrical life
500x10000
pushbutton
25x10000
selector switch
Continuous working life
10x10000h

Work environment

1)Surrounding temperature:-25℃~+55℃

2) Air relative humidity:≤85%

3) It can be normally work under following condition:

Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:

4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m.

Certifications
Our company

Factory

Our Factory

Team

Our Team

Workshop

Our Workshop

Warehouse

Our Warehouse

Agent

Welcome to join us to be our agent!

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
