Home > Products > factory price lay5 push button switch protective cover LAY5-EA131

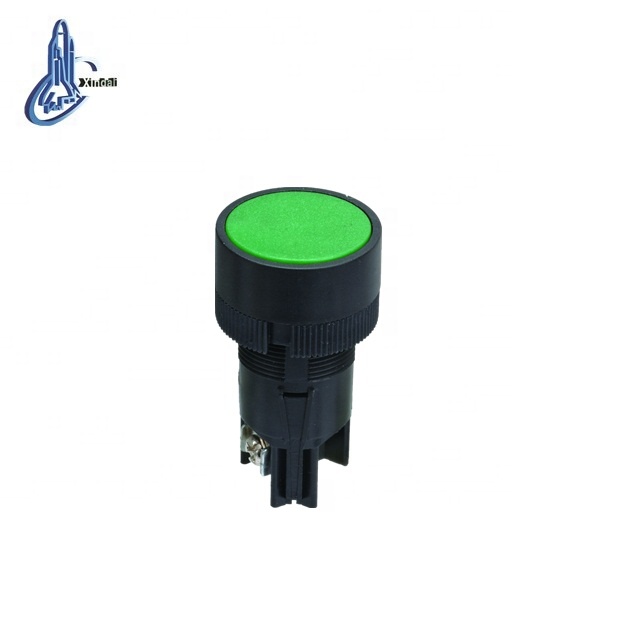

factory price lay5 push button switch protective cover LAY5-EA131
Click on the image to view the original image
Product: views:1factory price lay5 push button switch protective cover LAY5-EA131
Branch: XINDALI
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
XINDALI
Model Number:
LAY5-EA131
Protection Level:
IP40
Max. Current:
10A
Max. Voltage:
380V
Contact:
N/O or N/C
Spec:
LAY5-EA131
Certification:
CCC,CE,TUV,UL,ROHS,ISO9001
Brand:
xindali
Payment:
T/T,L/C
Port:
Shanghai/Ningbo
Dimension:
according to drawing
Advantage:
fast delivery,good quality

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
32.5X31X30 cm
Gross weight per batch:
13.0 kg
Package Type:
1 box =500pcs
Picture Example:
package-img
Lead Time:
Quantity(Piece)1 - 500>500
Est. Time(days)15To be negotiated
Product Description

Product Application

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.

                                                                                  Main technical parameter
Basic technical parameter of button
Basic technical parameter of signal lamp
Rated insulation
AC 600V(50Hz/60Hz)
Insulation resistance
≥50MΩ
Conventional heating current
10A
Contact resistance
≤25MinΩ
Insulation resistance
≥50MΩ
Pf withstand voltage
AC 2.5KV/min
Contact resistance
≤25MinΩ
Voltage wave
±20%
Mechanical life
100x10000
pushbutton
50x10000
selector switch
Brightness
60cd/m2
Electrical life
500x10000
pushbutton
25x10000
selector switch
Continuous working life
10x10000h

Main Features

1)Surrounding temperature:-25℃~+55℃

2) Air relative humidity:≤85%

3) It can be normally work under following condition:

Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:

4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m..
