Home > Products > 2015 Hot Sale Waterproof IP67 Emergency Stop mushroom push button switch with light XDL22-ESW542 dia. 40mm

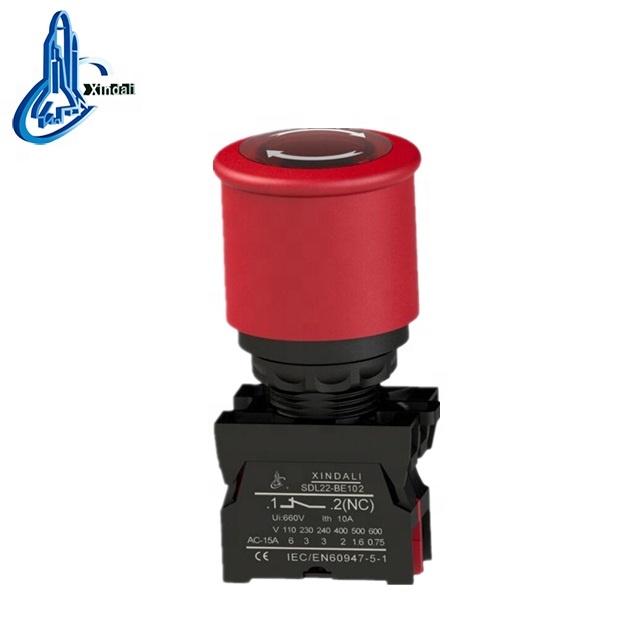

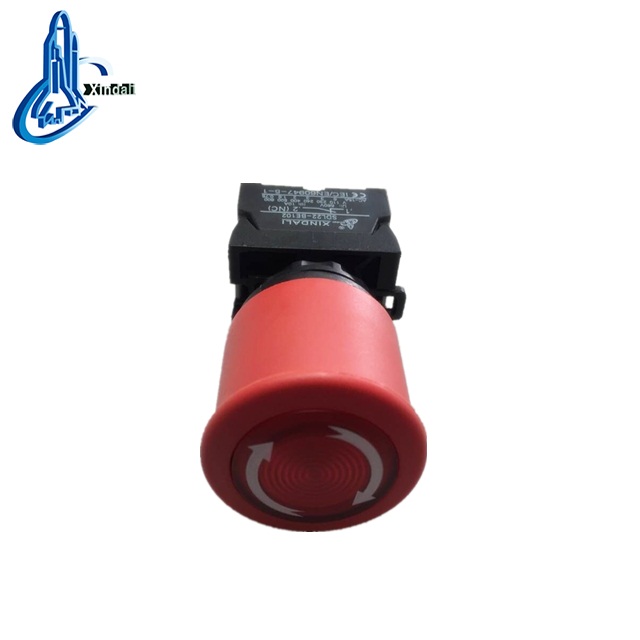

2015 Hot Sale Waterproof IP67 Emergency Stop mushroom push button switch with light XDL22-ESW542 dia. 40mm
Click on the image to view the original image
Product： views：62015 Hot Sale Waterproof IP67 Emergency Stop mushroom push button switch with light XDL22-ESW542 dia. 40mm
Branch： Xindali
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:35
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Xindali
Model Number:
XDL22-ESW542
Protection Level:
IP67
Max. Current:
10A
Max. Voltage:
415V
Description:
Emergency Stop Push Button Switch with lamp,turn to release
Mushroom Diameter:
40mm
Contact:
N/C
IP Degree:
IP67/ IP65
Certificate:
CCC,CE,TUV,UL,ROHS,ISO9001
Payment:
T/T,L/C
Port:
Shanghai/Ningbo
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
20pcs in inner box
240pcs in outer carton box
Port
Ningbo or Shanghai
Product Description

2015 Hot Sale Waterproof IP67 Emergency Stop mushroom push button switch with light XDL22-ESW542 dia. 40mm


Product Application

The push buttton series are used in controlling circuit of AC voltage up to 660V/AC 50Hz or 60Hz.rated voltage below 415V and DC voltage below 250V.Which are applied to CNC machine,machinery,power sector,telecommunicqations,shipping metallurgy and chemical engineering,etc.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.The main body of the push button is alloy and plastic.

The signal lamp serial are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz(60Hz),and the rated DC voltage below 380V,It is used as indicating signals,warning signals and emergency signals,etc.The product confirms to the standards of GB/T14048.1,GB/T14048.5 and IEC60947-5-1.

Basic Characteristic
Conforming to standards as
IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature
operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity
35~85%RH
Vibration frequency
Conforming to IEC 68-2-6
Impact resistance
Conforming to IEC 68-2-27
Pollution grade
3
Installation sort
ClassⅢ
Protection grade
Ordinary:IP40 IP54
Protection:IP65 IP66 IP67 IP68
Mechanical life
pushbutton:300*10 push and pull type emergency button:30*10
Fastening torque
0.8Nm(MAX:1.2Nm)

Contactor Characteristics

1) Rated operating characteristics:AC-15:A600 or Ue=240v and le=3A
                                                              DC-13:Q~600 or Ue=250V and le=0.27A conforming to ice 947-5-1

2) Rated geopolitical voltage:Ui=600V,pollution degree 3 according to IEC60947-1,Ui-600V

3) Rated impact resistance voltage:Uimp=6kV in accordance with IEC 60947-1

4) Contactor actions:slow break(NC or NO)

5) Reliable operation:salety device(emergency stop mushroom button):NC should be separated

6)Operation pressure:flash and convex button-NO with 1 NC with 1,auxiliary contactor-NO NC

7)Wiring section:single ship wire:0.75mm2-2.5mm2,strand wire:0.5mm2-1.5mm2
