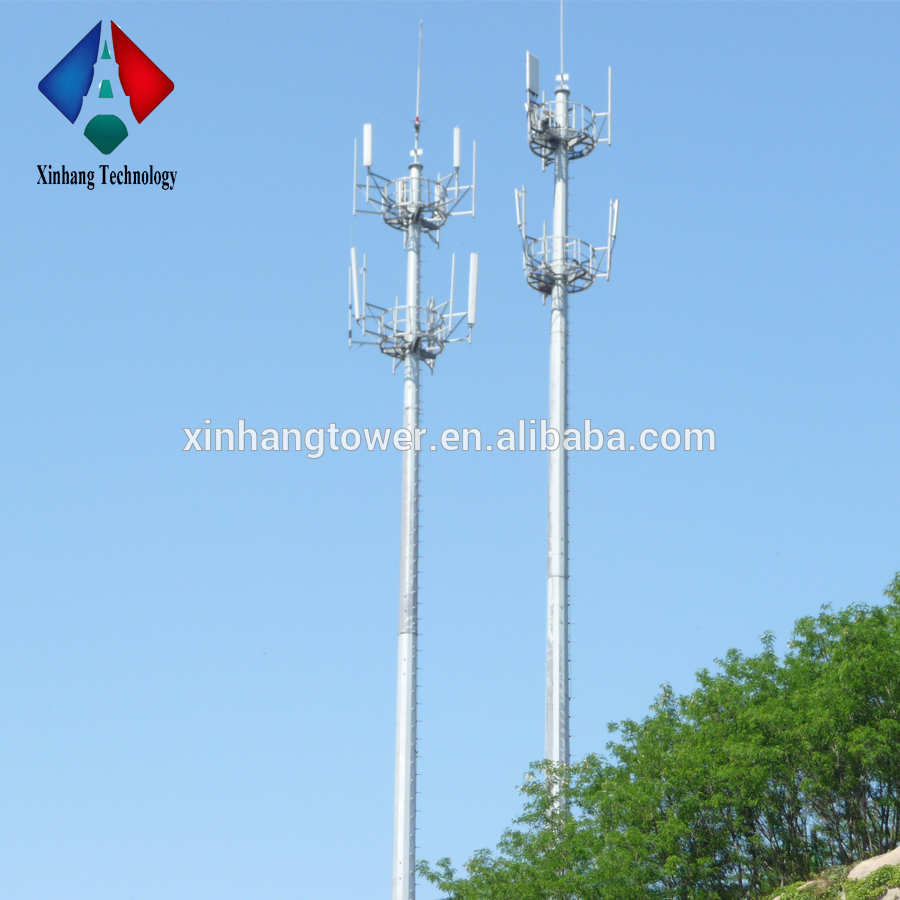

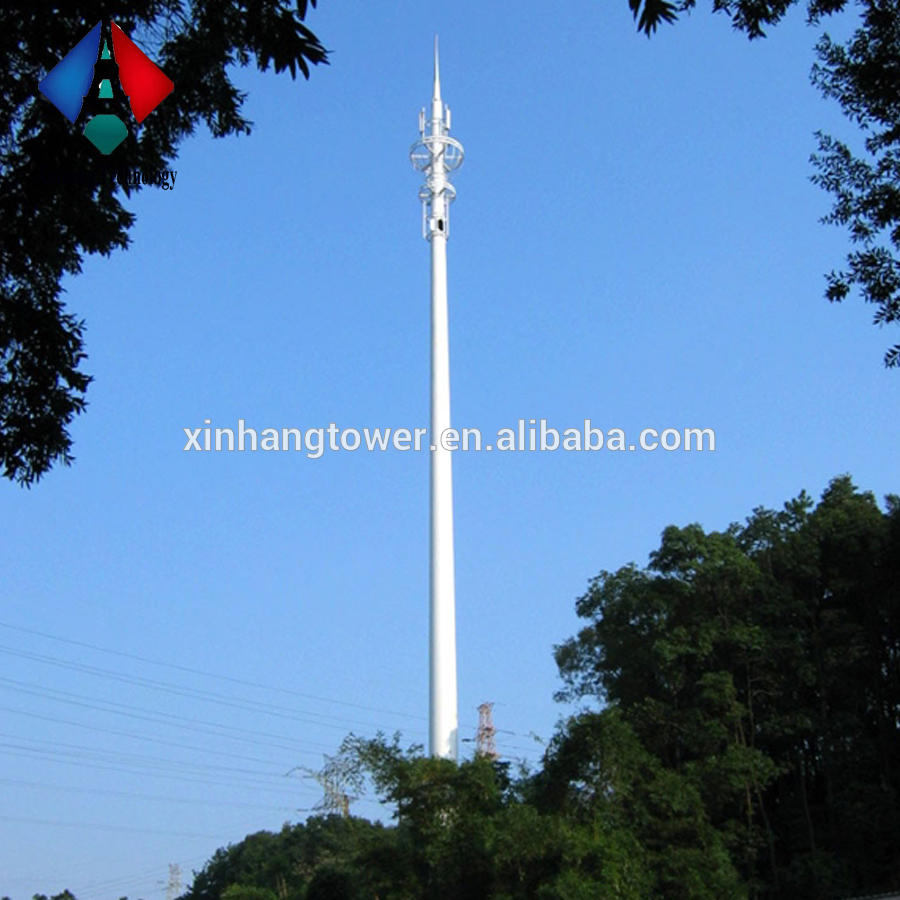

Telecommunication Cellular Antenna Tower
Telecommunication Cellular Antenna Tower Specifications
Fast-2 hours to complete
Overall modular room
Overall small footprint site
High-quality, fast, reliable, beautiful
Reusable
The integrated base depot including the engine room and the correspondence tower, its characteristic lies in the engine room fixed establishment outside the engine room in the frame, outside the engine room the frame foundation one side permanent connection correspondence tower, the correspondence tower constitutes by section of or a section of above section arm. The structure is compact, the design is reasonable, the entire base depot assembly convenience is flexible, does not need to weld, uses the bold fastening completely, the tower body and the engine room integration design, the entire base depot can complete the station construction rapidly in 2 hours, strengthened the fast station construction, emergency communication ability, has solved the difficulty which the construction permanent base depot aspect meets.
Material:Q235/Q345
Height: 10-45m
Lifetime:15-25 Years
Telecommunication Cellular Antenna Tower Feature
Avaivable Height | 5-80M |
Wind Pressure | 5-180 KM/H |
Material | Q345B/A572,minimum yield strength >=345N/mm2; Q235B/A36,minimum yiled strenght>=235N/mm2; |
Good Description | Cable and Ladder are inside or outside as per request |
Appearance | Hot Dip Galvanization and Color Paint as customer"s request |
Lifetime | Minimum 15 years |
Working & Resting Platform Quantity | 1-3 PCS |
Antenna Support Quantity | 3-18 PCS |
Microwave Dish Quantity | 3-10 PCS |
Shape | Pyramid or Round |
Feature | Less space, elegant appearance, |
Spare Parts | All necessary parts for installation and connection |
Design | ANSI/TIA-222-G |
We have a complete quality control and inspection process to make sure good quality of our steel towers:
physical properties test | chemical analysis |
dimension check | salt spray |
wielding inspection | zinc coating inspection |
