Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC11-18V
- Lamp Power(W):
- 15
- Lamp Luminous Flux(lm):
- 3400
- Lamp Luminous Efficiency(lm/w):
- 20
- CRI (Ra):
- 80
- Color Temperature(CCT):
- RD
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- E27
- Light Source:
- Induction Lamps
- Place of Origin:
- Shandong, China
- Brand Name:
- XINHANG
- Model Number:
- XH-122B
- Color:
- Red/white
- Life:
- 1000,000h
- Hight:
- <150m
- Weight:
- 13kg
- Flash intensity:
- white>40000cd, red>6000cd
- Flashing Frequency:
- 20(Adjustable)
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 47X37X66 cm
- Single gross weight:
- 13.0 kg
- Package Type:
- In carton
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 5

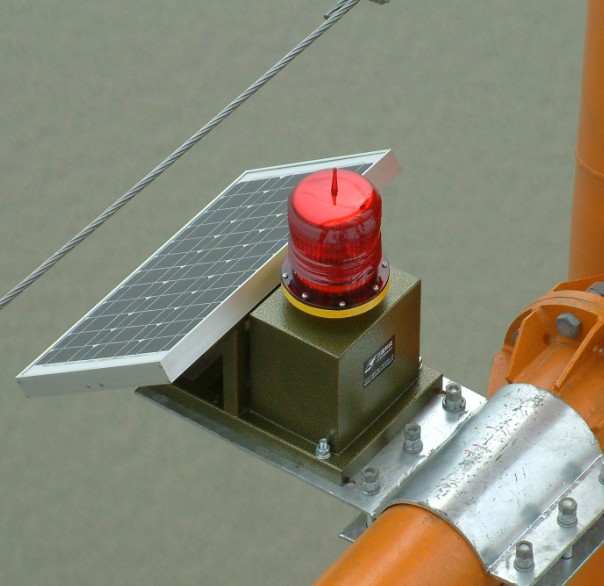

XH-122B solar LED aircraft light for Airport runway, telecom tower and high building
Product Description
This silicon solar intelligent aviation obstruction lights a new generation OB light. It comes with compact-size and light-weight, which makes delivery and installation more convenient.
The optical part is based on the 122mm Fresnel lens molding from polyacylate plastic mold, which can concentrate light to a small specific angel to meet with ICAO requirements, resistant to shock and acid. The base is built of die-casting light weight aluminum alloy---offer excellent corrosion and weather resistance, anti-UV anti-shock. Perfect combination of high-efficiency mono-crystal silicon solar panel and high-capacity storage cells provides adequate power. During the day, the solar module will charge the battery for storage at night to provide power to ensure the continuous light rain for 10 days light-emitting, automatically work during the day and night and shut down. The lights are color available by red, white, yellow, and blue. The small light features efficiency, reliability, longevity, and is energy-saving and environmental-friendly.
This kind of solar aviation warning lights are especially suitable for the inconvenient maintenance communication towers, chimney, and exploration wells. We also offer aviation obstruction light designs according your demand.
Feature
- Built with miti-arrays LED source. Extremely long life up to 100,000 hours
- Two control circuits work simultaneously
- If one of the circuits fails it does not effect the other circuit
- Lampbase:made from casting aluminum alloy-----excellent resistance to corrosion
- 155mm Frensel lens molded with polyacrylic acid--excellent resistance to weather and corrosion
- Standard interface/port, can set different position of constructure to achieve synchronized flash effect.
- Photo-sensor(apply for intelligent type) and single-chip control circuit
- form the automatic light-control switch which is turned on by itself at night and when it is foggy and turned off at day time.
- Color Available in red,white,yellow,green, blue
- work over 10-15 rainy or cloudy days after charging fully
Specifications
| Operating Voltage | DC12V |
| Quiescent Current | ≤10mA |
| Flash Intensity | White>40000cd Red >6000cd |
| Light Control Sensitivity | 50~3000LX (adjustable) |
| Light source | 2-4 xenon lamp |
| Maitenance-free battery | DC12V 24AH |
| Solar panels power | 11-15w |
| Protection Class | IP65 |
| Dimensions | 470mm*365mm*660mm |
| Weight | 13kg |
Flash:
A. Smart: synchronous lines to connect the way,the multi-sync flash lamp.
B.common:focus on intelligent control box to be synchronized flash control.
C.base economy(picture lamp0:the single main light control,the Deputy lord lights synchronized with the lights flashing.
Operating system:
A. Ordinary type---connect lights to a controller box to achieve synchronous flash.
B. Intelligent type-use synchronous wires to achieve synchronous flash in a hand-in-hand way.
C. Economic type----use one main controlling light to control several auxiliary lights to achieve synchrounous flash.
Applications:
--High-rise building & Industrial Chimneys
--Telecom towers marking
--Road obstruction marking
--Marine navigation marking
Packaging & Delivery
Packaging Details: 1 pcs/carton
Carton size: 36*47*66cm
Delivery Detail: 1-2 weeks after order confirmed
Payments Terms
1.TT, Western Union or Paypal: 30% in advance,70% before delivery or 100% paid in advance.
2. L/C is available for large quantity order.
We offer customized products developed as per your requirements and specifications.
Please send us an enquiry detailing your requirements for a quick response.
More products
as per yur request, we have variety of type for your choice.
