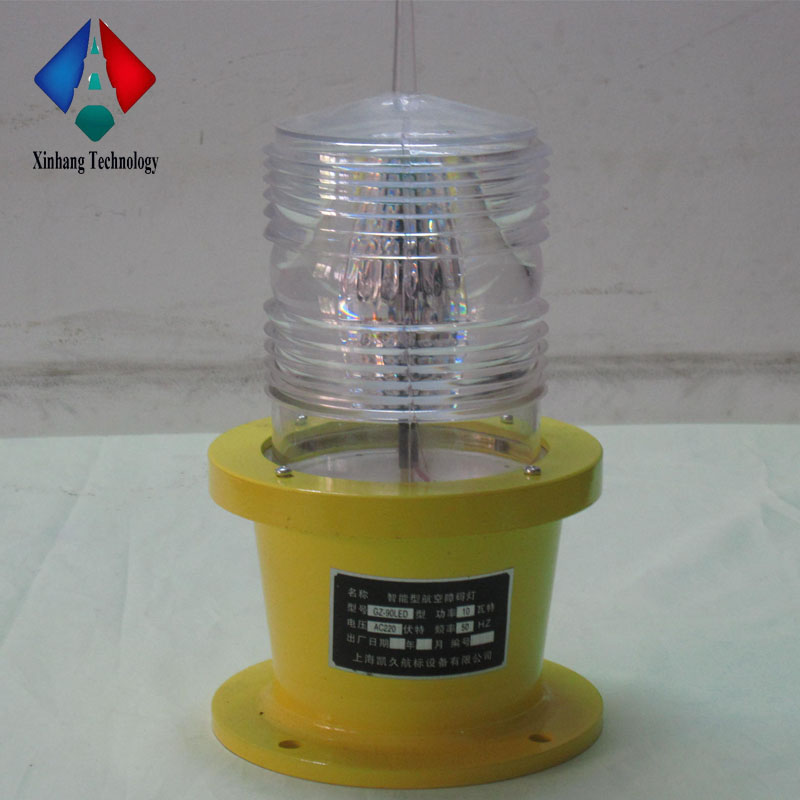

High quality Led Medium Intensity Red Aviation Obstruction Light
Introduction
Our solar powered tower aviation lights use the pulse xenon lamps. Multi layer light source panels are stacked into a light emitter. The light is controlled by a single chip microcomputer control circuit, which includes a high quality electronic component. The core components are imported that could ensure the quality and working life of the lights. The lampshade is made of 155MM Fresnel lens made of poly carbonate, which is resistant to shock and acid. The base is built of heavy-duty die-casting aluminum alloy---offer customer"s excellent corrosion and weather resistance.The lamp will automatically begin operation at dusk-----once the ambient light threshold drops sufficiently. The lights are color available by red, white, yellow, and blue. With standard communication interfaces, the light could be built in different locations for other applications. We also offer aviation obstruction light designs

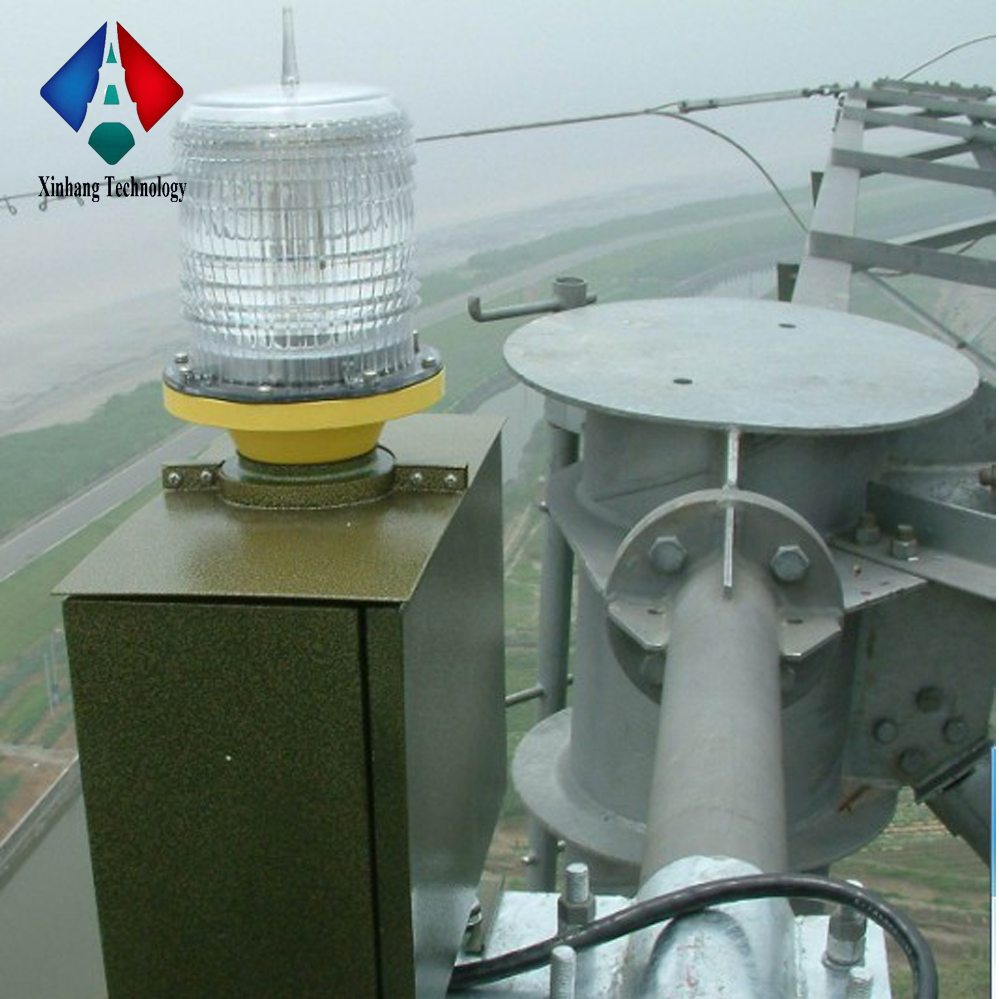

Our solar powered tower aviation lights have been widely supplied to Kuwait, U.A.E, Saudi Arabia and Oman. The light is mainly used for high-rise buikding, television and telecom towers, chimneys, and airport facilities.
Feature
- 155mm Frensel lens molded with polycarbonate plastics —better light transmittance, unaffected by ultraviolet radiation and excellent resistance to shock(esp. hail) and acid
- Lampbase: made from die-casting aluminum alloy-----excellent resistance to corrosion
- Standard interface/port, can set different position of structure to achieve synchronized flash effect.
- Photo-sensor -------- turn off at daytime and automatically turn on at nighttime or insufficient light
- Light circuit controlled by microprocessor single-chip
- Built-in double core circuit-controlled boards-----The serivce board fails, the spare will be operated automatically
- Completely customizable to deployment and operation conditions
- Micro Processor based charge controller ensures long battery life
- Will withstand wind in excess of 150 mph (240 kph), (150 knots)
- Fog, Rain Humidity : 100%
- Does not create Electromagnetic Interference
- Does not create Radio Frequency Interference
- Color Available in red,white,yellow,green
Specifications
| Model | Medium intensity | High intensity |
| Voltage | AC220V | AC220V |
| Rated Power | 30w | >60w |
| Light control sensitivity | 50~300LX (adjustable) | 50~300LX (adjustable) |
| Work environment | -40℃~60℃ | -40℃~60℃ |
| Flash frenquency | 20 (adjustable) | 20 (adjustable) |
| Light source | 2 ppulsed xennon lamp (imported) | 8 ppulsed xennon lamp (imported) |
| Light source life | 108h | 108h |
| Waterproof | IP65 | IP65 |
| Dimensions | 480mm*220mm | 480mm*220mm |
| Weight | 4.5kg | 5kg |
| Scope | <200m | >200m |
Flash:
A. Smart: synchronous lines to connect the way,the multi-sync flash lamp.
B.common: focus on intelligent control box to be synchronized flash control.
C.base economy: the single main light control,the Deputy lord lights synchronized with the lights flashing.
Applications
- Telecom tower, electic power tower, broadcast tower
- Industry chimneys, high-rise building
- airport lighting
- wind turbine and wind farm light
- Exploratory well
- Ideal for Power transmission towers and telecom pylons, Natural obstructions like Hilltops and all other locations where carrying electricity is difficult.
Packaging & Delivery
Packaging Details: 1 pcs/carton
Delivery Detail: 1-2 weeks after order confirmed
Other Products
We offer customized products developed as per your requirements and specifications.
Please send us an enquiry detailing your requirements for a quick response.
Contact us:
Jeff Zhu
Tel: 0086 532 55578185
Fax: 0086 532 55578411
Web:www.xinhangtower.com
FAQ
1. Q: What is your payment method?
A: T/T, Western Union, Credit Card, Paypal T/T 30% deposit and left pay after receive the copy of BL within 7 days
2. Q: How about the packaging of your product?
A: Most of the packaging for the product is Standard Export Carton. Some are woven bag. It depend products.
3. Q: What is the delivery time?
A: Normally the manufacture process need take 15days. For the hot sales product, we will have some stock.
4. Q: Does your company have the quality guarantee?
A: We have test per product before the shipment. We will undertake the responsibility for the quality issue. Because our product belongs traffic consumables, so we do not have special quality guarantee.
5. Q: Do you offer OEM service?
A: Yes, we will meet customer request. We will stamp the logo and label on our products.
