2ft 4ft 5ft Single Fitting Linear Strip Integrated T5 Led Tube Lighting Lamp Fixture Batten
T5 LED TUBE
Certificates: CE, RoHS
Product Features:
- Ø High Energy Efficiency: Low Power consumption, energy saving;
- Ø Reliable Quality:
- Good heat dissipation with professional designed aluminum housing
- Built-in constant current driver
- Ø Aluminum body and milk PC cove
- Ø Working Temperature: -20~+55°
- Ø Eco-Friendly: No UV and infrared radiations
- Ø Long lasting life, up to 50,000hrs
- Ø Easy Installation: can be directly replaced to G13based fluorescent lamps
Product Specifications:
| Specification Sheet for T5 LED Fixture | ||||
| Model Number | T5LED-TS07-1500 | T5LED-TS07-1200 | T5LED-TS07-900 | T5LED-TS07-600 |
| Voltage | 90-265V/50/60Hz | |||
| Nominal Power | 24W | 18W | 14W | 8W |
| Rated Power | 24±0.5W | 18±0.5W | 14±0.5W | 8±0.5W |
| LED Chip | SMD2835 120pcs | SMD2835 96pcs | SMD2835 72pcs | SMD2835 48pcs |
| Driver | Isolated Constant Current Driver | |||
| PF | 0.9 | 0.9 | 0.9 | 0.9 |
| Color Temprature | 3000/4000/5000/6000K | |||
| Lumen/Watt | 85-90LM/W | 85-90 | 85-90 | 85-90 |
| Total Lumens | 2380-2520LM | 1530-1710LM/W | 1190-1260LM/W | 680-720LM/W |
| Ra | ≥70 | ≥70 | ≥70 | ≥70 |
| Beam Angle | 120° | |||
| Housing | Aliminum Housing + PC Cover | |||
| End Caps | PC end cap, three pins | |||
| Product Size | 1500x23x32mm | 1200x23x32mm | 900x23x32mm | 600x23x32mm |
| Inner Packing Size | 1530x40x28mm | 1240x40x28mm | 930x40x28mm | 630x40x28mm |
| PCS/CTN | 25 | 25 | 25 | 25 |
| Master Carton | 1550x215x165mm | 1250x215x165mm | 950x215x165mm | 650x215x165mm |
Applications:
Certificates:
Packaging & Shipping
Packing:
- One piece in one polybag;
- One polybag in a individual carton
- 25pcs in a standard export carton
| Inner Packing Size | 1530x40x28mm | 1240x40x28mm | 930x40x28mm | 630x40x28mm |
| PCS/CTN | 25 | 25 | 25 | 25 |
| Master Carton | 1550x215x165mm | 1250x215x165mm | 950x215x165mm | 650x215x165mm |
Shippings:
- By express: Such as DHL,UPS, TNT, FEDEX ect. The dispatch time is about 3-5 will search for a economical shipping company to transport the goods safely
- Air Freight: When you order more than 100kg which will be more economical than express,
- Sea freight: We will update sea freight later once we know to which sea port goods will be delivered
- Agent designated by client: Please tell us the contact details of your shipping agent/forwarder

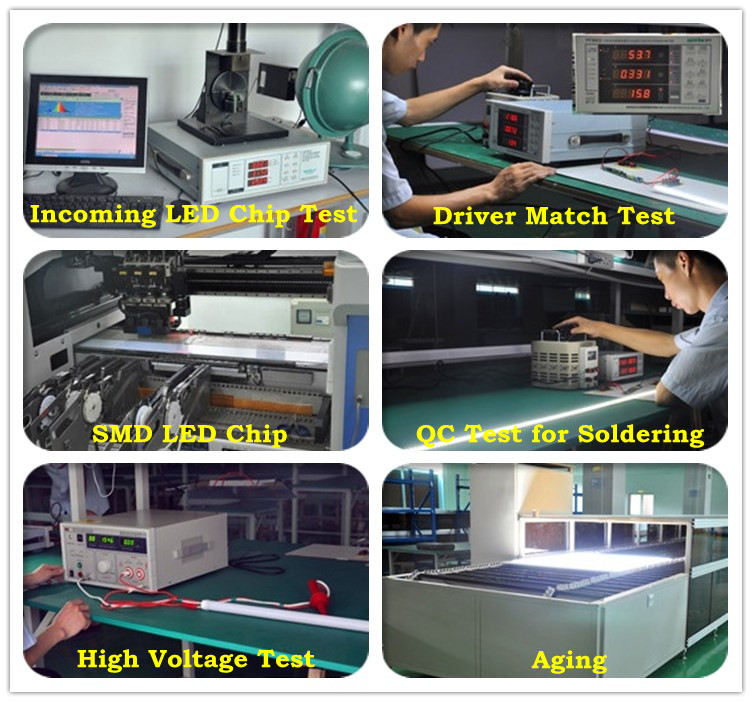

Production Process:
Our Ability:
- over 14 years experience in fluorescent tubes and fixture, we believe we can do well in LED
- 500 workers, short delivery time
- ISO 9001:2008 International Quality System authorization
- 11 years member credit of alibaba organization
- best service based on lowest price and good quality
Our QC:
- We have obtained the ISO9001 Quality Control Management System since 2000;
- We have 16 QC staff in our factory and another 10 QC staff doing in-line inspections;
Sample Service:
Small quanitty of sampels are free of charge, buyer shoulder the freight cost
Sample delivery time is around 3-7 days after confirmation
Customized Service
We accept OEM order and we can help customer design
We also offer ODM service to customer when needed
After-sale Service
We offer 7/24 Service
Any quality issue, once confirmed is our responbility, we will compesate our customer.
