- Place of Origin:
- Hebei, China
- Brand Name:
- XUPURUI
- Rated Power:
- 1.8kw
- Voltage:
- 220V, 220v
- Product name:
- UV Lamp
- Application:
- for card printer/ clothes printer
- certification:
- CE IEC
- Shape:
- Tubular
- material:
- GE Quartz Glass Tube
- Overall length:
- 230mm
- Arc length:
- 110mm
- Diameter:
- 23mm
- Lifetime:
- >800 hours
- Packaging Details
- Carton and Wooden box
product packaging carefully
protection of product safety

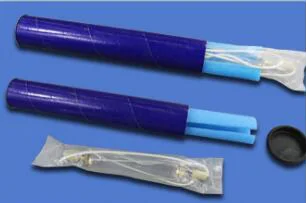

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 7 >7 Est. Time(days) 15 To be negotiated

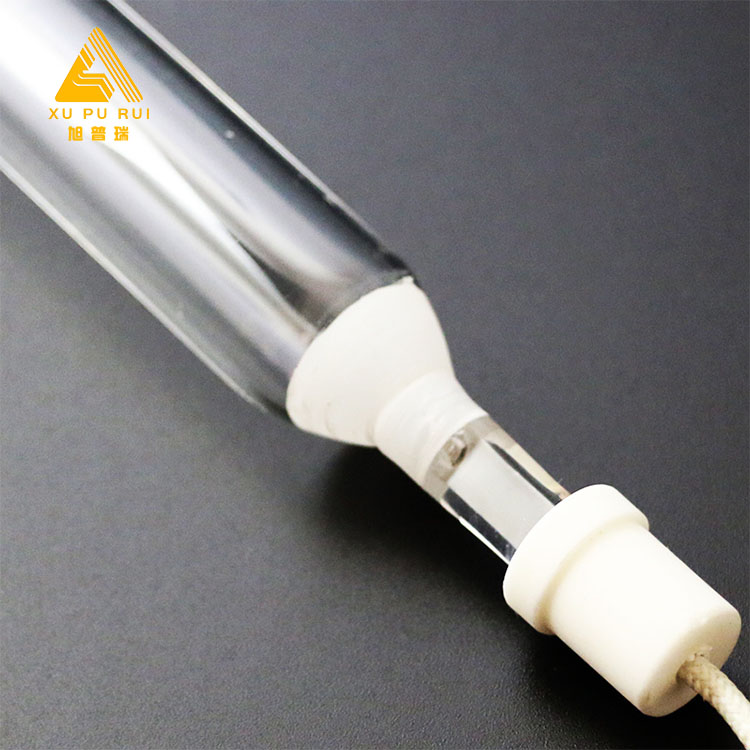

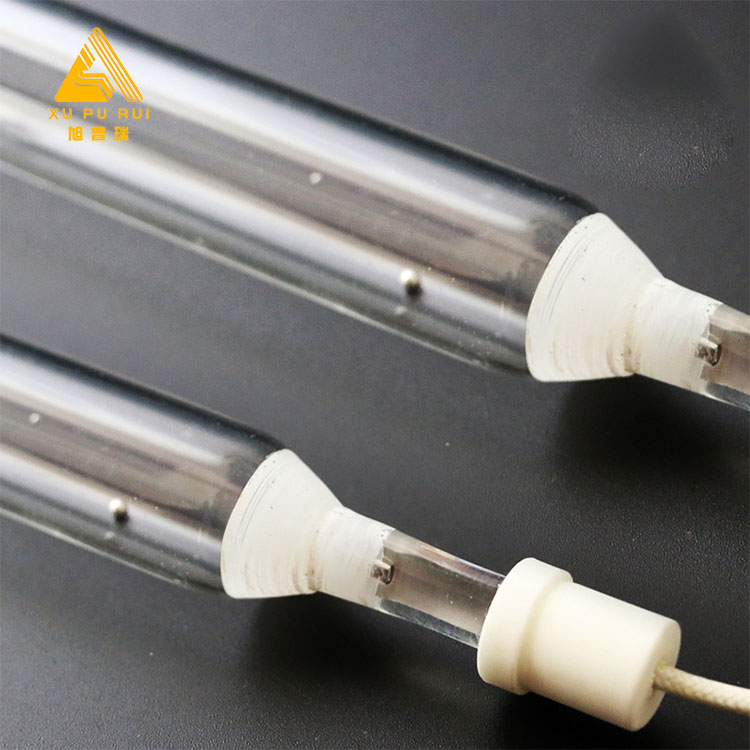

Glass tube 220v 230mm 1.8kw printing machine uv ultraviolet lamp
Another name is Ultraviolet high pressure mercury lamp, is a kind of lighting source which use 365nm long-wave ultraviolet spectrum, lamp power density generally is 50w/cm-250w/cm, power is 200w-22kw. Should be work with the transformer and ballast in same specifications. This kind of lamp is mainly used for printing, platemaking, label printing, paper polishing, metal printing and curing for all kinds of materials coated with photosensitive ink & paint, is agenerally used of ultraviolet light source.
| Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XPR86010028 | 1KW | 230mm | 128mm | 22.5mm | ceramic |
| XPR86010082 | 1.5KW | 370mm | 245mm | 20mm | ceramic |
| XPR86010018 | 1.8KW | 240mm | 150mm | 25mm | ceramic |
| XPR86020096 | 2KW | 380mm | 250mm | 22.5mm | metal |
| XPR86020061 | 2.32kw | 251mm | 165mm | 18mm | ceramic |
| XPR86030160 | 3KW | 473mm | 335mm | 20.5mm | ceramic |
| XPR86030023 | 3.2KW | 550mm | 405mm | 22.5mm | metal |
| XPR86030119 | 3.6KW | 240mm | 150mm | 28mm | ceramic |
| XPR86030075 | 3.6KW | 400mm | 300mm | 22.5mm | ceramic |
| XPR86040101 | 4KW | 460mm | 385mm | 20mm | ceramic |
| XPR86040018 | 4.8KW | 500mm | 400mm | 22.5mm | ceramic |
| XPR86050113 | 5KW | 436mm | 353mm | 22.5mm | ceramic |
| XPR86050125 | 5KW | 380mm | 255mm | 25mm | ceramic |
| XPR86060008 | 6KW | 930mm | 775mm | 21mm | ceramic |
| XPR86060023 | 6.3KW | 650mm | 525mm | 22.5mm | ceramic |
| XPR86070028 | 7KW | 335mm | 270mm | 30mm | ceramic |
| XPR86070015 | 7.5KW | 778mm | 620mm | 25mm | ceramic |
| XPR86080066 | 8KW | 630mm | 520mm | 25mm | ceramic |
| XPR86090032 | 9KW | 850mm | 770mm | 25mm | ceramic |
| XPR86100003 | 10KW | 1386mm | 1230mm | 21mm | ceramic |
| XPR86110001 | 11KW | 1575mm | 1430mm | 22.5mm | ceramic |
| XPR86120060 | 12KW | 870mm | 770mm | 25mm | ceramic |
| XPR86160026 | 16.5KW | 1575mm | 1430mm | 25mm | ceramic |
- GE Pure Quartz Tube
We use the quartz tubes provided by the American GE company, which have a high UV transmittance and low hydroxyl content .
- CE and IEC Certification
Ouruv lamps are of data accuracy , high strength and long life.
- 800 Hours Warranty
If properly installed and maintained, the lifetime is often more than 1000 hours, which is the feedback we get from our customers.
- Customer-made Specification
Different overall length, arc length, and tube diameter can be customized.
- Engineers available to provide after-sales service
Our technicians, with more than 20 years experience in special light source, will provide pre-sales and after-sales technical support within 24 hours.
