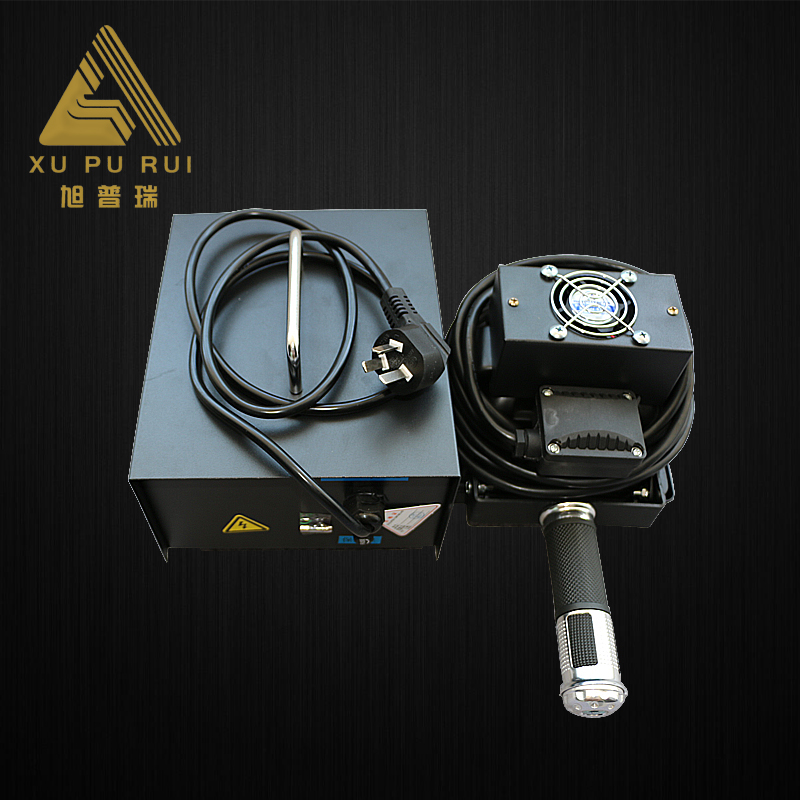

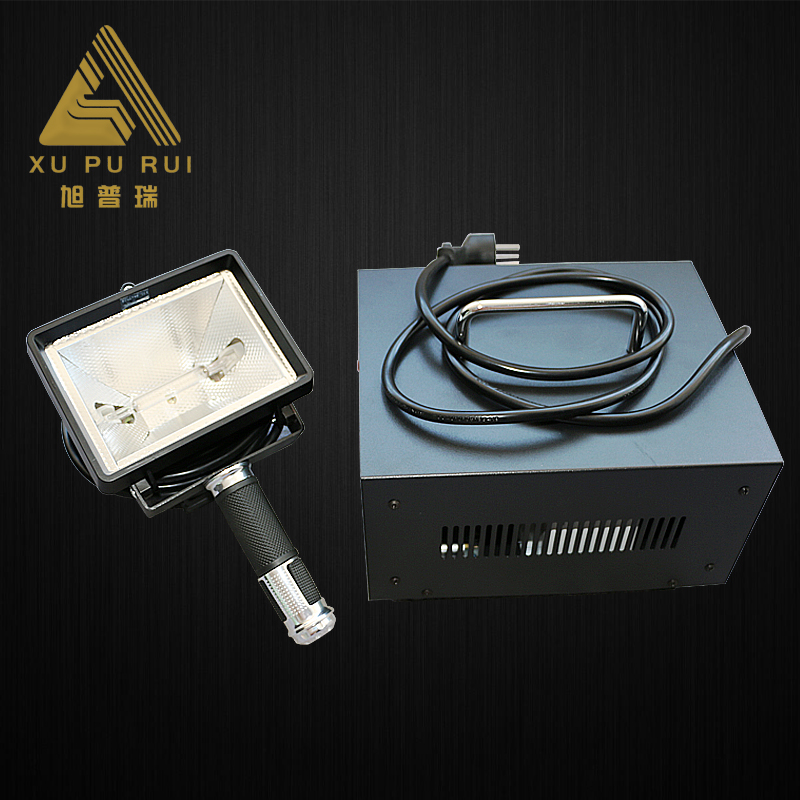

Portable UV curing machine
Benefits:
l Cost-effective
l Energy efficient
l Long lifetime UV lamp
l Imported aluminum UV reflector
Operating:
1. After the power is turned on, you can direct the work. If you want to stop working, simply cut off the power supply.
2.Avoid turning off the power frequently. Delay of 5-10 minutes after cooling before re-starting.
Notice:
1.Avoid exposure directly to ultraviolet light. Operator must wear sunglasses, long-sleeved clothes and packed rubber gloves.
2. Ventilation working environment is necessary.
3.Do not turn on and off the lamp frequently. It will affect efficiency and lamp life.
Specification:
| Irradiation distance | 80-200mm |
| Input | AC220V/380V,45-60HZ |
| Input | High pressure mercury lamp |
| UV Intensity | 80-120w/cm |
| Peak wavelength | 365nm |
| Cooling method | Air-cooled exhaust |
| Power cord length | 3m |
| Connection wire length | 2m |
| UV Power | Lamp length | Arc length | Input |
| 250w | 120mm | 70mm | 220v 50hz |
| 500w | 170mm | 75mm | 220v 50hz |
| 1kw | 230mm | 150mm | 220v 50hz |
| 2kw | 400mm | 250mm | 220v/380v 50hz |
| 3kw | 500mm | 350mm | 220v/380v 50hz |
| Portable UV curing machine | 250w simplify | 250W Standard | 400W | 500W | 1kw simplify | 1kw Standard | 2kw | 3kw |
| Light box weight | 0.5 kg | 1 kg | 1 kg | 3 kg | 2 kg | 3 kg | 4 kg | 5.5 kg |
| Power box weight | 3.5 kg | 4 kg | 4.5 kg | 8.5 kg | 10 kg | 11 kg | 15 kg | 18 kg |
| Lamp length | 120mm | 120mm | 120mm | 170mm | 230mm | 230mm | 400mm | 500mm |
| Input voltage | 220v | 220v | 220v | 220v | 220v | 220v | 220/380v | 220/380v |
| Lightbox size | 240*170 *85mm | 170*180 *160 | 200*160 *160mm | 280*160 *160mm | 340*130 *130mm | 320*160 *200mm | 530*180 *220mm | 650*200 *240mm |
| Power Box size | 220*180 *170mm | 220*180 *170mm | 200*160 *180mm | 350*160 *220mm | 420*160 *200mm | 430*160 *270mm | 480*180 *240mm | 580*200 *260mm |
| Remark | with a cooling fan | Suitable for short-term operation |
