380v 3kw portable ultraviolet uv machine for silk screen printer
Description

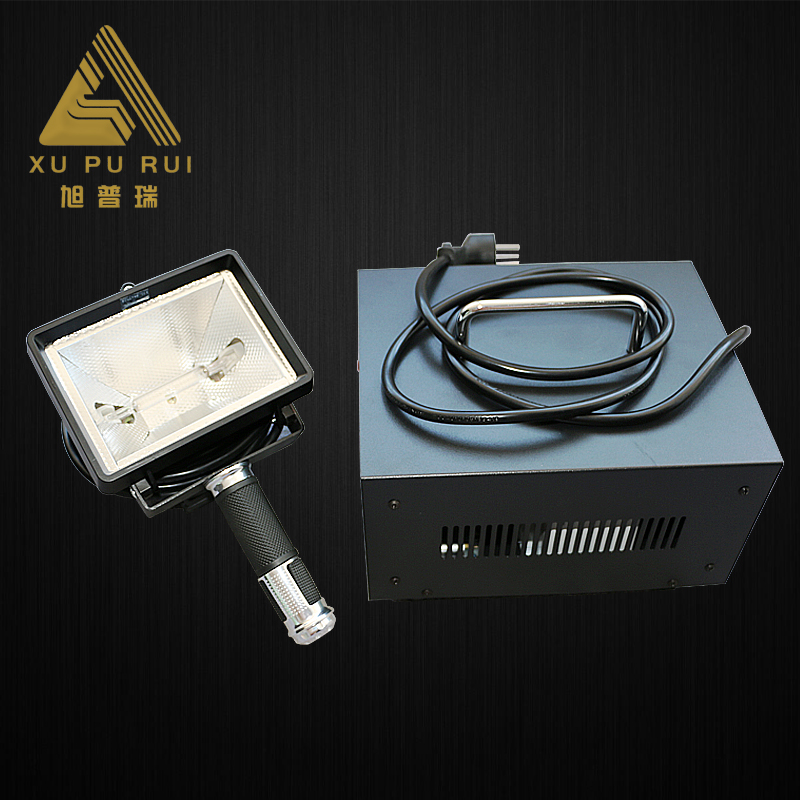

This machine is a set of portable ultraviolet curing equipment, which is suitable for small batch production. It is designed to split structure, consisting of UV lamp box and power supply box. Due to its high flexibility and versatility, This UV curing machine has been widely used in UV curing process.
Features
- Wide usage range
- Instant curing
- Large irradiation area
- Easy and convenient
- Easy-to-use and removable
- Multi-angle curing available
- Optional quartz filters
- Enhanced cooling system
- Automatic air switch, safe to use
- Constant work
Benefits
- Cost-effective
- Energy efficient
- Long lifetime UV lamp
- Imported aluminum UV reflector
Specification
Irradiation distance | 80-200mm |
Input | AC220V/380V,45-60HZ |
Light source | High pressure mercury lamp |
UV Intensity | 80-120w/cm |
Peak wavelength | 365nm |
Cooling method | Air-cooled exhaust |
Power cord length | 3m |
Connection wire length | 2m |
Application
- Furniture, floor paint curing
- Marble surface polishing
- Automotive UV painting
- Paint aging test, scientific experiments
- UV glue fast curing
- Model making, crafts molding
- Laboratory and temporary simple construction maintenance
Model
UV Power | Lamp length | Arc length | Input |
250w | 120mm | 70mm | 220v 50hz |
500w | 170mm | 75mm | 220v 50hz |
1kw | 230mm | 150mm | 220v 50hz |
2kw | 400mm | 250mm | 220v/380v 50hz |
3kw | 500mm | 350mm | 220v/380v 50hz |
Products show
Our Services
- PROFESSIONAL SKILL
We hanve professionaltechnology to add the top production equipment,focused on each step working procedure,through innovation and continuous improvement,produce tubes stable performance and longer life.
- QUALITY INSPECTION
It began making lamps from the source to produce a complete product,both through the layers of strict checks to ensure that production out of each lamp is a perfect qualified lamps.
- MASSIVE STOCKS
We are the manufacturer,with a large inventory of conventional products shipped quickly,without waiting for special custon-made products need to wait for delivery.
1.
Q: Is your company a factory or trading business?
A: We are a factory manufacturing UV products.
2.
Q: Can you make custom size lamp?
A: If you didn"t find the UV lamp model which you need , please give us the specification,we can customize the uv lamp for you.
3.
Q: Quality assurance?
A: Guarantee lifetime is 800 hours, but it can reach more than 1000 even 2000 hours, that’s our clients’ feedback. If can’t reach, we’ll replace for you.
4.
Q: How do you control the quality of the company?
A:We begin quality control from raw materials.20 years experience engineers guide production.And stable and professional technical workers engaged in production.
5.
Q: How aobut the after Sales?
A:Every lamp will tested by our QC department before shipping.
Company solemn promise: If the lamp transport damage and quality problems [free replacement] Please rest assured to buy!
6.
Q:What types of payment do you support?
A:We accpect TT/ PayPal/ Western Union.
