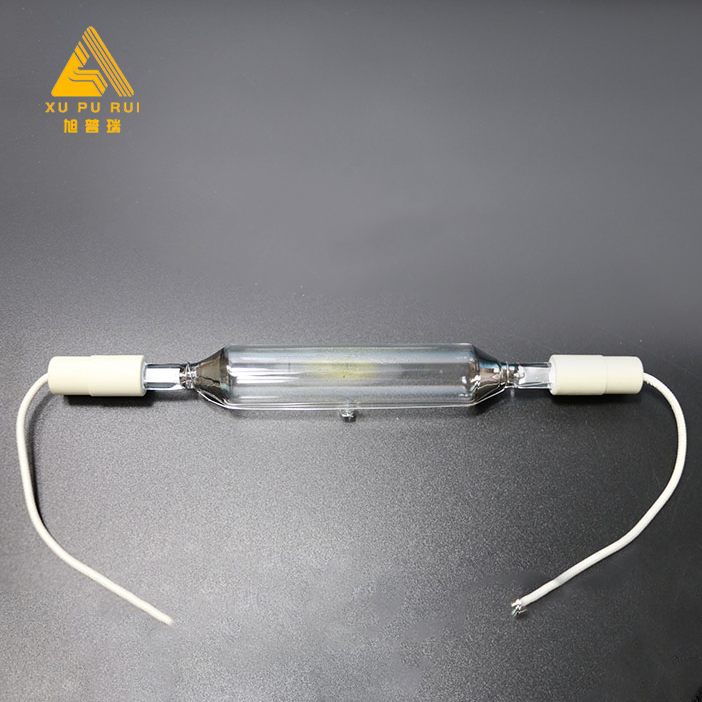

UV metal halide lamp
1. Products descriptions
High-intensity UV metal halide lamp is the development of high pressure mercury lamp. Filled with gallium iodide, iron iodide as well as some rare metal halide, This lamps have addtional wavelength-- 380nm, 403nm and 417nm.
2. Application
Iron iodide UV lamp in 380nm:
hardening reaction in film, screen, PCB, diazo film, photopolymer photopolymer and daylight film exposure systems.
Gallium iodide UV lamp in 403nm and 417nm:
photochemistry photographic plate, S plate, lithography resin plate and other light-cured areas.
3. Advantages
- Quicker start
- Shorter exposure time
- Higher intensity
- Longer lifetime
- More stable
4. Specification
| Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XUP68000002 | 400W | 118mm | 35mm | 22.5mm | metal |
| XPR16010001 | 1KW | 187mm | 95mm | 17mm | ceramic |
| XPR68010019 | 1.2KW | 136.5mm | 88mm | 18mm | ceramic |
| XPR68010015 | 1.5KW | 215mm | 125mm | 25mm | ceramic |
| XPR16020009 | 2KW | 120mm | 110mm | 28mm | ceramic |
| XPR68020011 | 2.4kw | 267mm | 195mm | 26mm | ceramic |
| XPR16030009 | 3KW | 230mm | 102mm | 25mm | ceramic |
| XPR68030023 | 3.6KW | 430mm | 330mm | 25mm | ceramic |
| XPR16040002 | 4KW | 280mm | 150mm | 25mm | ceramic |
| XPR68040007 | 4.8KW | 400mm | 300mm | 25mm | ceramic |
| XPR16050007 | 5KW | 188mm | 102mm | 28mm | ceramic |
| XPR68050002 | 5.6KW | 926mm | 806mm | 22.5mm | ceramic |
| XPR68060001 | 6KW | 600mm | 500mm | 22.5mm | ceramic |
| XPR16060001 | 6.7KW | 676mm | 560mm | 25mm | ceramic |
| XPR68070003 | 7.5KW | 725mm | 625mm | 22.5mm | ceramic |
| XPR16080003 | 8KW | 778mm | 645mm | 25mm | ceramic |
| XPR68080006 | 8.4KW | 800mm | 715mm | 25mm | ceramic |
| XPR68090003 | 9KW | 850mm | 730mm | 25mm | ceramic |
| XPR16090001 | 9.6KW | 1490mm | 1330mm | 25mm | ceramic |
| XPR68100001 | 10KW | 1050mm | 950mm | 25mm | ceramic |
| XPR68110002 | 11.2KW | 1550mm | 1380mm | 22.5mm | ceramic |
| XPR68120006 | 12KW | 1110mm | 990mm | 22.5mm | ceramic |
| XPR16130002 | 13KW | 884mm | 770mm | 28mm | ceramic |
| XPR68150001 | 15KW | 1270mm | 1150mm | 25mm | ceramic |
Note:These are just a list of some products.We can offer customized products as you need.
5.Product pictures
1. Our factory
2. Main products
3. Why choose us
- GE Pure Quartz Tube
We use the quartz tubes provided by the American GE company, which have a high UV transmittance and low hydroxyl content .
- CE and IEC Certification
Each lamp has a high data accuracy, stable and reliable performance.
- 800 Hours Warranty
If properly installed and maintained, the lifetime is often more than 1000 hours, which is the feedback we get from our customers.
- Customer-made Specification
More than 1000 kinds of uv lamps are provided. Rated Power range from 250W to 36KW.Power Density range from 30w/cm to 300w/cm. Ozone and ozone free are both available.
3.Certificates
- OEM available;
- Customize available;
- If you are not sure which specification you need,please fill the drawing below.We could produce as your require.
