High quality 940mm UV light customized 6000w uv curing lamp
1. Products descriptions
High-intensity UV metal halide lamp is the development of high pressure mercury lamp. Filled with gallium iodide, iron iodide as well as some rare metal halide, This lamps have addtional wavelength-- 380nm, 403nm and 417nm.
2. Application
Iron iodide UV lamp in 380nm:
hardening reaction in film, screen, PCB, diazo film, photopolymer photopolymer and daylight film exposure systems.
Gallium iodide UV lamp in 403nm and 417nm:
photochemistry photographic plate, S plate, lithography resin plate and other light-cured areas.
3. Advantages
- Quicker start
- Shorter exposure time
- Higher intensity
- Longer lifetime
- More stable
4. Specification
| Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XUP68000002 | 400W | 118mm | 35mm | 22.5mm | metal |
| XPR16010001 | 1KW | 187mm | 95mm | 17mm | ceramic |
| XPR68010019 | 1.2KW | 136.5mm | 88mm | 18mm | ceramic |
| XPR68010015 | 1.5KW | 215mm | 125mm | 25mm | ceramic |
| XPR16020009 | 2KW | 120mm | 110mm | 28mm | ceramic |
| XPR68020011 | 2.4kw | 267mm | 195mm | 26mm | ceramic |
| XPR16030009 | 3KW | 230mm | 102mm | 25mm | ceramic |
| XPR68030023 | 3.6KW | 430mm | 330mm | 25mm | ceramic |
| XPR16040002 | 4KW | 280mm | 150mm | 25mm | ceramic |
| XPR68040007 | 4.8KW | 400mm | 300mm | 25mm | ceramic |
| XPR16050007 | 5KW | 188mm | 102mm | 28mm | ceramic |
| XPR68050002 | 5.6KW | 926mm | 806mm | 22.5mm | ceramic |
| XPR68060001 | 6KW | 600mm | 500mm | 22.5mm | ceramic |
| XPR16060001 | 6.7KW | 676mm | 560mm | 25mm | ceramic |
| XPR68070003 | 7.5KW | 725mm | 625mm | 22.5mm | ceramic |
| XPR16080003 | 8KW | 778mm | 645mm | 25mm | ceramic |
| XPR68080006 | 8.4KW | 800mm | 715mm | 25mm | ceramic |
| XPR68090003 | 9KW | 850mm | 730mm | 25mm | ceramic |
| XPR16090001 | 9.6KW | 1490mm | 1330mm | 25mm | ceramic |
| XPR68100001 | 10KW | 1050mm | 950mm | 25mm | ceramic |
| XPR68110002 | 11.2KW | 1550mm | 1380mm | 22.5mm | ceramic |
| XPR68120006 | 12KW | 1110mm | 990mm | 22.5mm | ceramic |
| XPR16130002 | 13KW | 884mm | 770mm | 28mm | ceramic |
| XPR68150001 | 15KW | 1270mm | 1150mm | 25mm | ceramic |
Note:These are just a list of some products.We can offer customized products as you need.

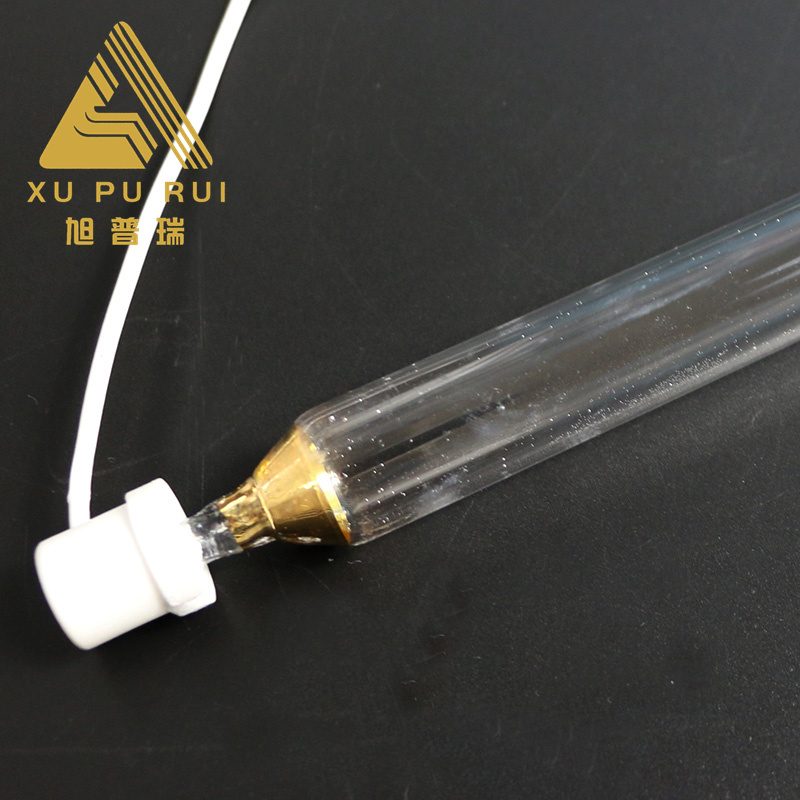

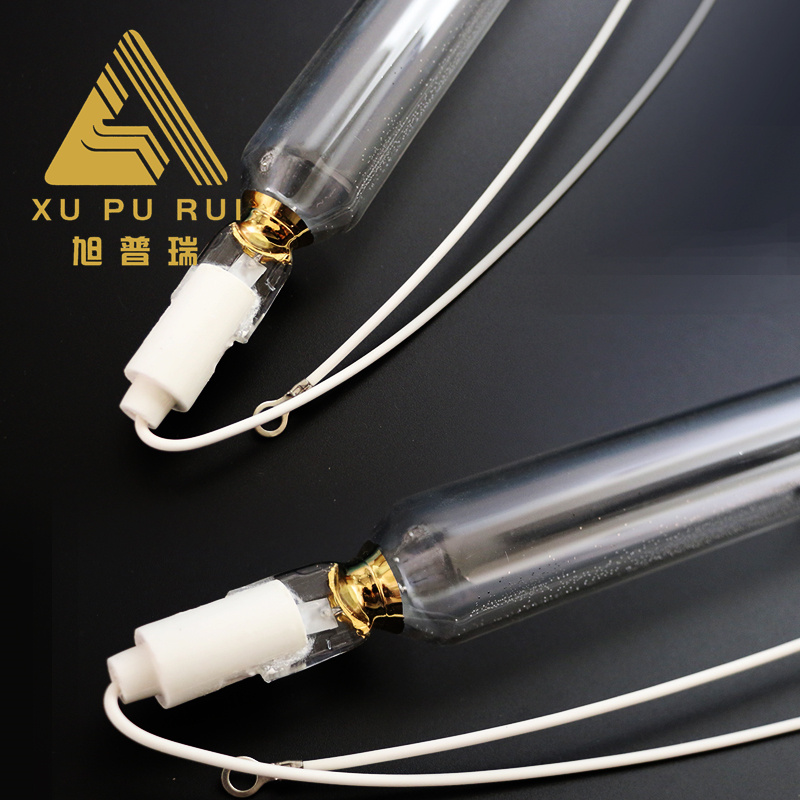

5.Product pictures
