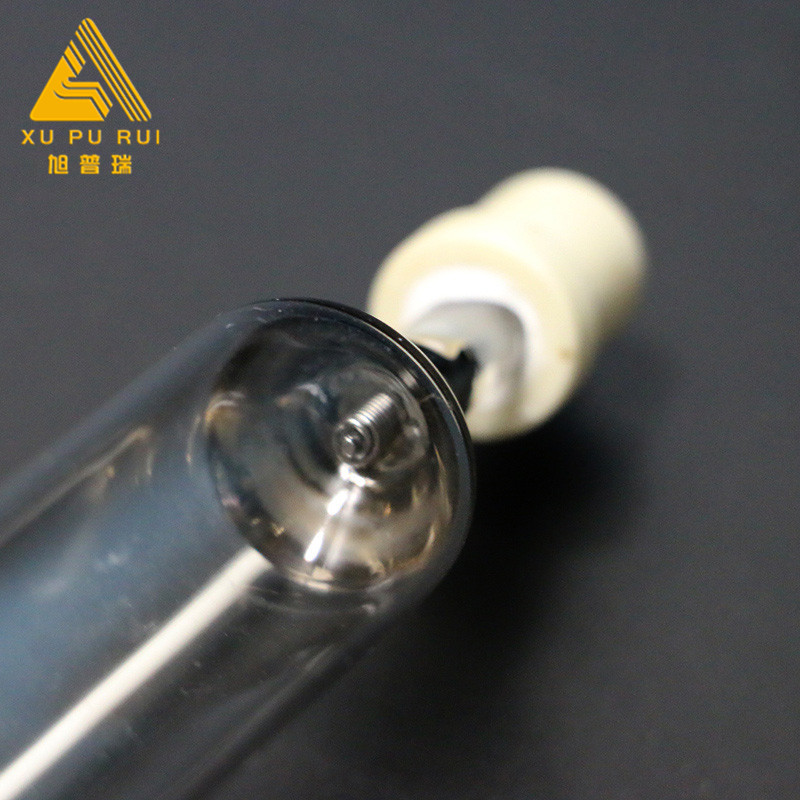

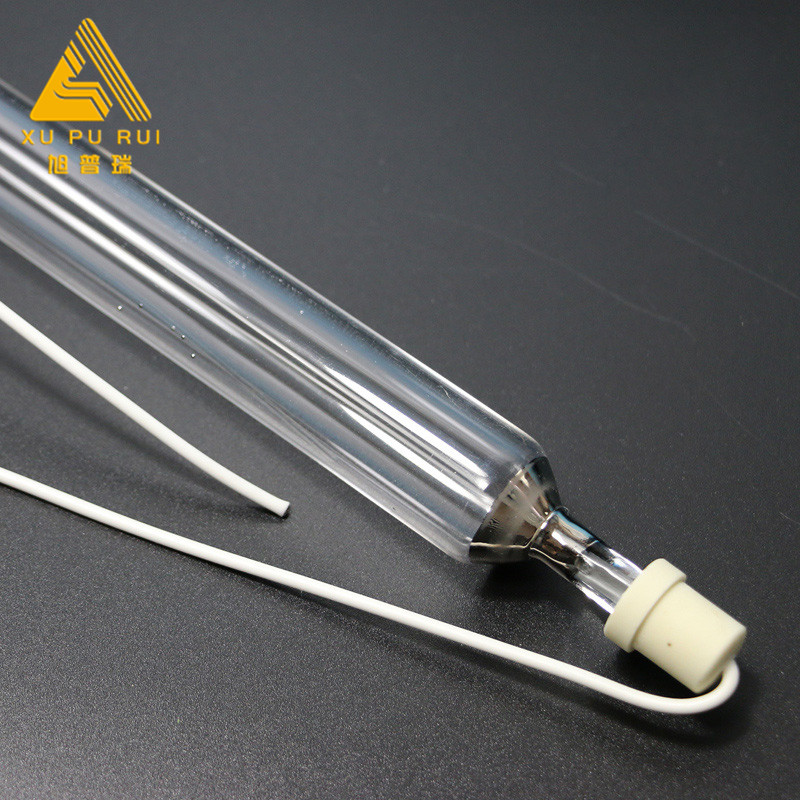

Ultraviolet lamp
Another name is Ultraviolet high pressure mercury lamp, is a kind of lighting source which use 365nm long-wave ultraviolet spectrum, lamp power density generally is 50w/cm-250w/cm, power is 200w-22kw. Should be work with the transformer and ballast in same specifications. This kind of lamp is mainly used for printing, platemaking, label printing, paper polishing, metal printing and curing for all kinds of materials coated with photosensitive ink & paint, is agenerally used of ultraviolet light source.
Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XPR86010028 | 1KW | 230mm | 128mm | 22.5mm | ceramic |
| XPR86010082 | 1.5KW | 370mm | 245mm | 20mm | ceramic |
| XPR86010018 | 1.8KW | 240mm | 150mm | 25mm | ceramic |
| XPR86020096 | 2KW | 380mm | 250mm | 22.5mm | metal |
| XPR86020061 | 2.32kw | 251mm | 165mm | 18mm | ceramic |
| XPR86030160 | 3KW | 473mm | 335mm | 20.5mm | ceramic |
| XPR86030023 | 3.2KW | 550mm | 405mm | 22.5mm | metal |
| XPR86030119 | 3.6KW | 240mm | 150mm | 28mm | ceramic |
| XPR86030075 | 3.6KW | 400mm | 300mm | 22.5mm | ceramic |
| XPR86040101 | 4KW | 460mm | 385mm | 20mm | ceramic |
| XPR86040018 | 4.8KW | 500mm | 400mm | 22.5mm | ceramic |
| XPR86050113 | 5KW | 436mm | 353mm | 22.5mm | ceramic |
| XPR86050125 | 5KW | 380mm | 255mm | 25mm | ceramic |
| XPR86060008 | 6KW | 930mm | 775mm | 21mm | ceramic |
| XPR86060023 | 6.3KW | 650mm | 525mm | 22.5mm | ceramic |
| XPR86070028 | 7KW | 335mm | 270mm | 30mm | ceramic |
| XPR86070015 | 7.5KW | 778mm | 620mm | 25mm | ceramic |
| XPR86080066 | 8KW | 630mm | 520mm | 25mm | ceramic |
| XPR86090032 | 9KW | 850mm | 770mm | 25mm | ceramic |
| XPR86100003 | 10KW | 1386mm | 1230mm | 21mm | ceramic |
| XPR86110001 | 11KW | 1575mm | 1430mm | 22.5mm | ceramic |
| XPR86120060 | 12KW | 870mm | 770mm | 25mm | ceramic |
| XPR86160026 | 16.5KW | 1575mm | 1430mm | 25mm | ceramic |
UV lamp reflector can enhance the light energy of UV light source and maintain the operating temperature of the tube so as to directly affect product quality through the reflection of the strong UV light on the surface of the curing matter. The UV light is reflected on the surface of the product to greatly enhance work efficiency!
When you inquiry,please inform us the following details:
1.Operating voltage and operating current you need.
2.Power and outside dimension you need.
3.Special requirements if you have.
