Chinese products wholesale transformer rectifier
Product Description
1. Product Description

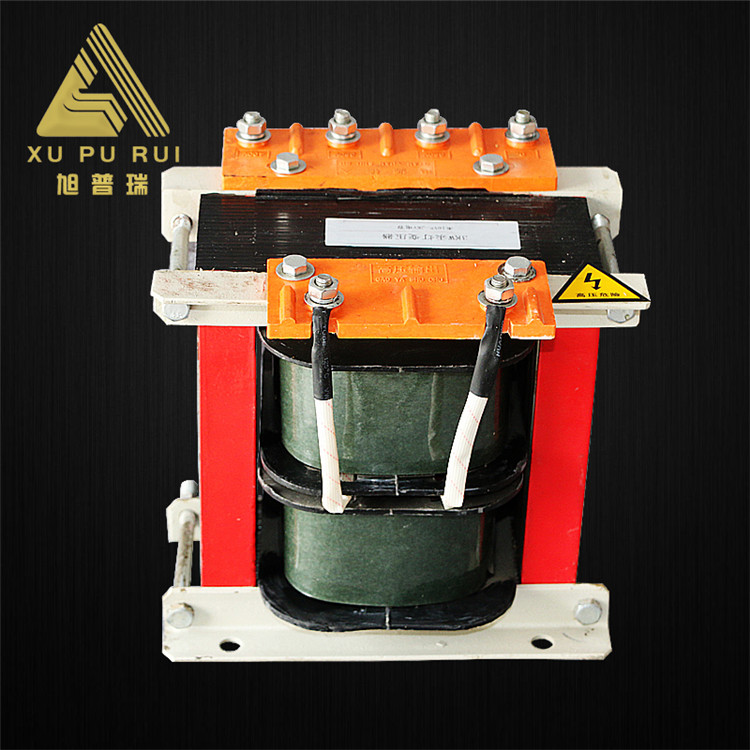

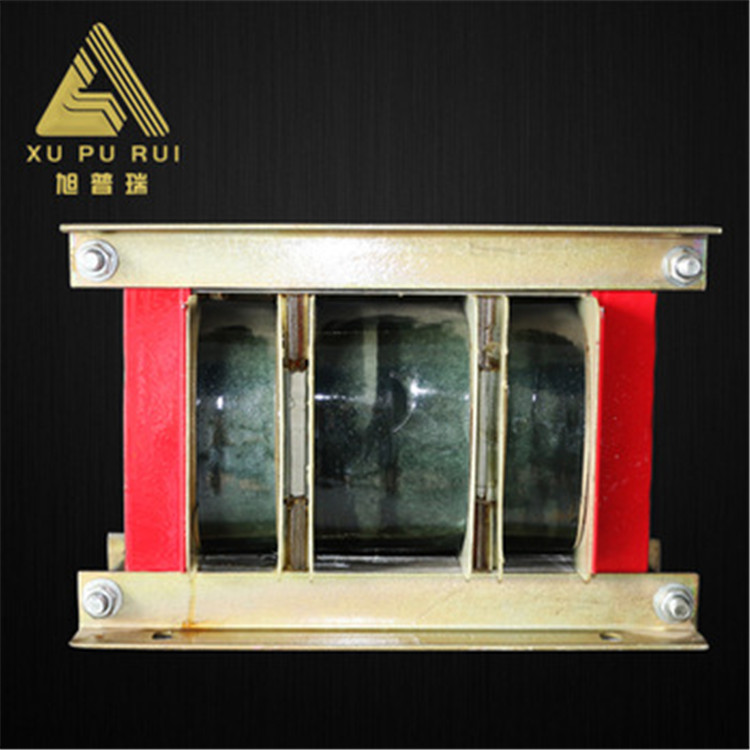

This transformer is designed specially for uv lamp and metal halide lamp, in order to achieve the effective UV output.
2. Features
- Iron core adopts imported silicon steel sheet.
- High quality oxygen- free copper wire, with F-class insulating material outside.
- Using Vacuum Pressure Impregnation Technology.
- Special item can be produced according to your request.
3. Specification
3.1 Properties
| Usage | Watts | Input Voltage | Phase | Material | Coil Structure | Frequency |
| power supply for uv lamp | 3kw-25kw | 220v/380v | 3 | copper | toroidal | 50-60hz |
3.2 Dimensions
| Material | Watts | Input Voltage | Frequency | Dimension(mm) | Weight |
| Copper | 3kw | 220v 380v | 50-60hz | 245*210*270 | 32kg |
| 5-6kw | 220v 380v 440v | 50-60hz | 275*255*300 | 56kg | |
| 9.6kw | 220v | 50-60hz | 365*280*380 | 100kg | |
| 11.2kw | 380v | 50-60hz | 340*280*370 | 90kg | |
| 16kw | 380v | 50-60hz | 385*300*375 | 112kg |
4. Details
5. Our Advantages
