Description

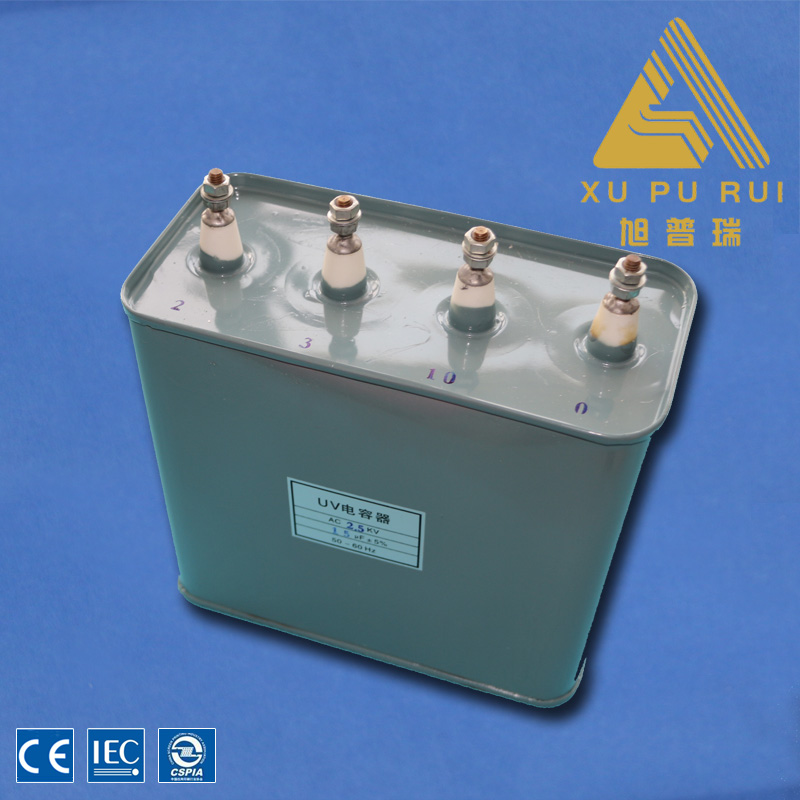

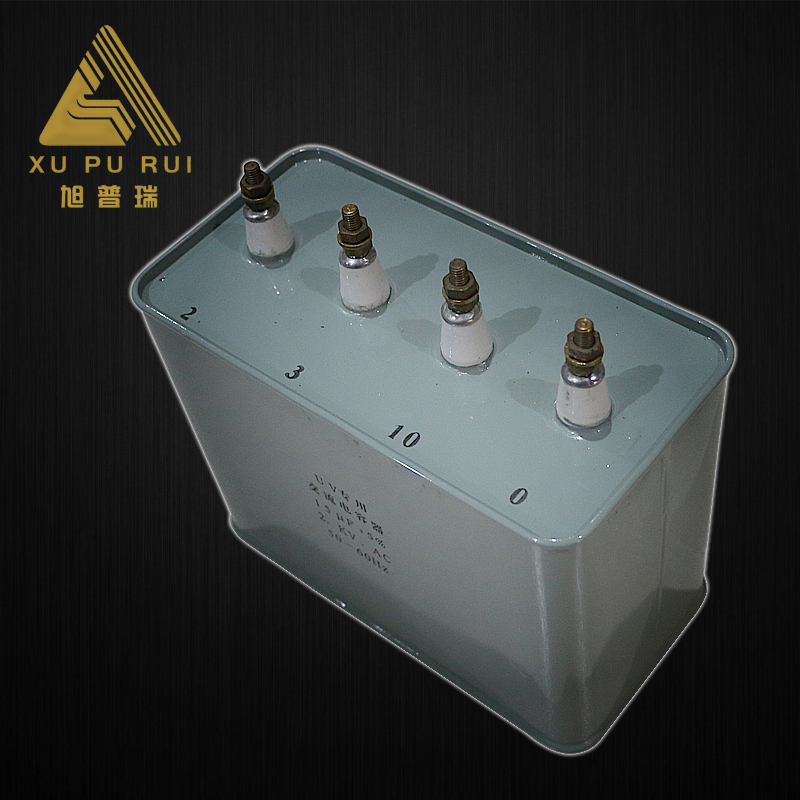

UV capacitor, with advanced production technologies (non-inductive winding and high vacuum impregnation), high-voltage testing, high-precision RLC electrical parameter testing, electrophoresis appearance treatment, uniform color and elegant streamlines, is characterized by strong corrosion resistance, high security and reliability (a built-in explosion-proof device), durability and superior performance (for high-frequency high-voltage terminals). With terminals ranging from 2 to 6, voltage from 500V to 4,500V, and capacity from 1.5UF to 40UF, these products can be customized.
Technical Parameters
| Operating Voltage(KV) | withstand voltage(UF) | Long(MM) | Width(MM) | High(MM) | Short Distance(MM) |
| 2 | 0+10+2+2/15 | 200 | 100 | 140 | 135 |
| 2 | 0+10+3+3/15 | 200 | 100 | 140 | 135 |
| 2 | 0+10+5+3/15 | 275 | 125 | 150 | 135 |
| 2 | 0+10+5/15 | 150 | 105 | 212 | 70 |
| 2.5 | 0+10+3+3/15 | 275 | 125 | 190 | 135 |
| 2.5 | 0+10+3+3/18 | 275 | 125 | 190 | 135 |
| 2.5 | 0+10+5+3/18 | 275 | 125 | 150 | 135 |
| 3 | 0+10+3+2/15 | 275 | 125 | 150 | 135 |
| 3 | 0+10+5+3/15 | 275 | 125 | 150 | 135 |
| 3.5 | 0+10+3+2/15 | 275 | 125 | 150 | 135 |
| 3.5 | 0+10+3+3/18 | 275 | 125 | 240 | 135 |
| 4 | 0+10+3+3/18 | 275 | 125 | 320 | 135 |
