Description
Description

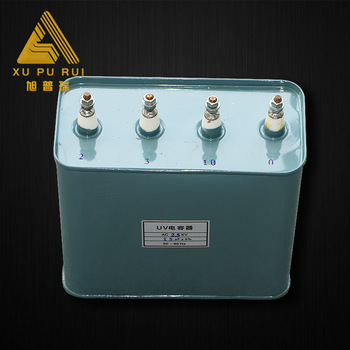

UV capacitors, used together with transformer, play a role in providing consistent curing performance by power compensation and current balance.
Xupurui UV capacitors are applied in advanced production technologies as below:
Ø Non-inductive winding
Ø High vacuum impregnation
Ø High-precision RLC electrical parameter testing
Ø High-voltage testing
Ø Built-in explosion-proof device
Features
l Easy installation and use
l Reliable performance
l Excellent moisture resistance
l Special capacitors can be customized
Specifications
| Volume | 2kv/ 2.5kv/ 3kv/ 3.5kv |
| Micro Farads Range | 1.5uf to 40uf |
| Voltage Range | 500v - 4500v |
| Terminal Type | 2 - 6 |
Any question? Please inquiry us directly or Call us at 0086-13603243830.
Technical Parameters
| Operating Voltage(KV) | withstand voltage(UF) | Long(MM) | Width(MM) | High(MM) | Short Distance(MM) |
| 2 | 0+10+2+2/15 | 200 | 100 | 140 | 135 |
| 2 | 0+10+3+3/15 | 200 | 100 | 140 | 135 |
| 2 | 0+10+5+3/15 | 275 | 125 | 150 | 135 |
| 2 | 0+10+5/15 | 150 | 105 | 212 | 70 |
| 2.5 | 0+10+3+3/15 | 275 | 125 | 190 | 135 |
| 2.5 | 0+10+3+3/18 | 275 | 125 | 190 | 135 |
| 2.5 | 0+10+5+3/18 | 275 | 125 | 150 | 135 |
| 3 | 0+10+3+2/15 | 275 | 125 | 150 | 135 |
| 3 | 0+10+5+3/15 | 275 | 125 | 150 | 135 |
| 3.5 | 0+10+3+2/15 | 275 | 125 | 150 | 135 |
| 3.5 | 0+10+3+3/18 | 275 | 125 | 240 | 135 |
| 4 | 0+10+3+3/18 | 275 | 125 | 320 | 135 |
