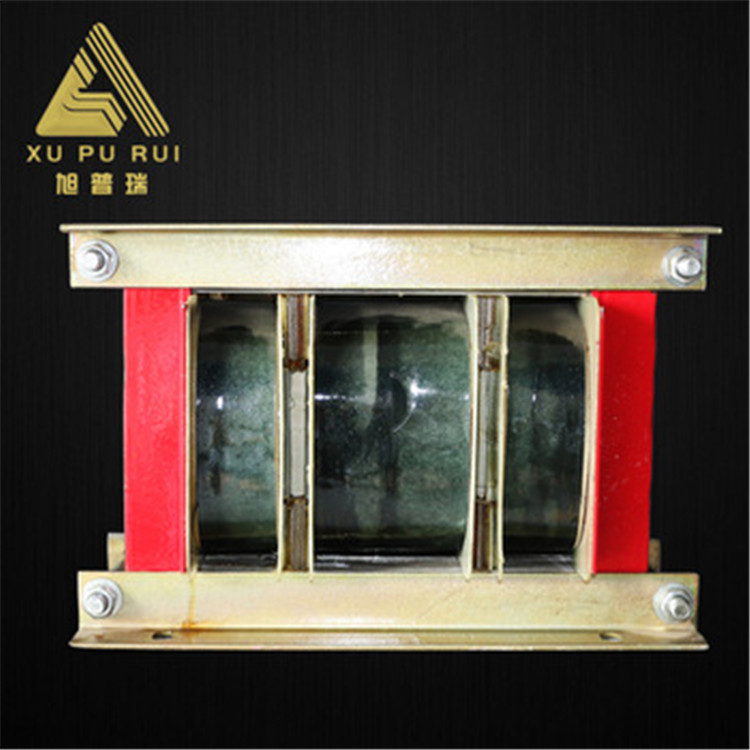

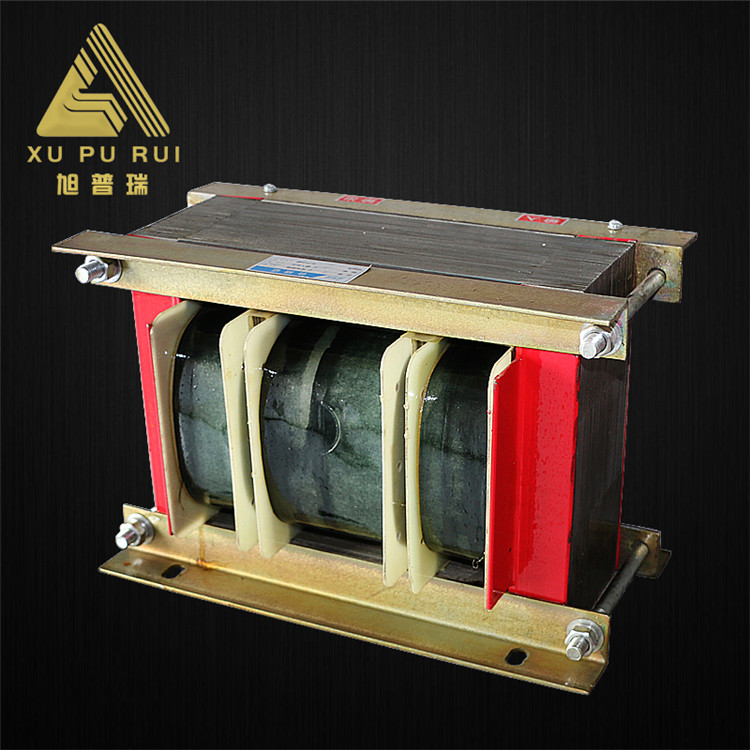

Autotransformer 380v 50HZ lighting 6 kw uv lamp transformers
1. Product Description
This transformer is designed specially for uv lamp and metal halide lamp, in order to achieve the effective UV output.
2. Features
- Iron core adopts imported silicon steel sheet.
- High quality oxygen- free copper wire, with F-class insulating material outside.
- Using Vacuum Pressure Impregnation Technology.
- Special item can be produced according to your request.
3. Specification
3.1 Properties
| Usage | Watts | Input Voltage | Phase | Material | Coil Structure | Frequency |
| power supply for uv lamp | 3kw-25kw | 220v/380v | 3 | copper | toroidal | 50-60hz |
3.2 Dimensions
| Material | Watts | Input Voltage | Frequency | Dimension(mm) | Weight |
| Copper | 3kw | 220v 380v | 50-60hz | 245*210*270 | 32kg |
| 5-6kw | 220v 380v 440v | 50-60hz | 275*255*300 | 56kg | |
| 9.6kw | 220v | 50-60hz | 365*280*380 | 100kg | |
| 11.2kw | 380v | 50-60hz | 340*280*370 | 90kg | |
| 16kw | 380v | 50-60hz | 385*300*375 | 112kg |
4. Details
5. Our Advantages
1. Company Information
XUPURUI Lighting Source was established in 1995, located in Zhuozhou City.
Through more than 20 years development, we had become one of the leading factories in designing, manufacturing, and selling products including UV/IR lamps, ,uv transformers, uv capacitors, uv ballasts and uv lamp reflectors.
With quality control and considerate service, we exports our goods to America, Europe, Middle East, Asia, Australia, and Africa under approval of CE and IEC.
2. Plant Show
3. Products Sketch
4. Shipping
DHL / EMS / UPS / FedEx / TNT / Ocean Shipping / Air Transportation
1.OEM/ODM available.
2. Customization for special specification and requirement is available.
3.Your inqury about our products will be replied within 24 hours.
Skype | Tel | Trademanager | Fax | |
beckyxpr | +86-15194973615 | 2463039213 | +86-312-3601595 | |
JaneXPR | +86-15230289581 | 2461540752 | ||
xupurui002 | +86-15194973615 | 2584936419 |
Q1: Is your company a factory or trading business?
A1: We are a factory manufacturing UV products.
Q2: MOQ?
A2: 7 pieces if don’t have in store.
Q3: Where is your factory located?How can I visit there?
A3: Our fatory is located in Zhuozhou city, Hebei Province, China. About 1.5 hours bus ride away form Beijing.
Q4: What types of payment do you support?
A4: TT / PayPal / Western Union / Aliexpress.
