1. Product introduction

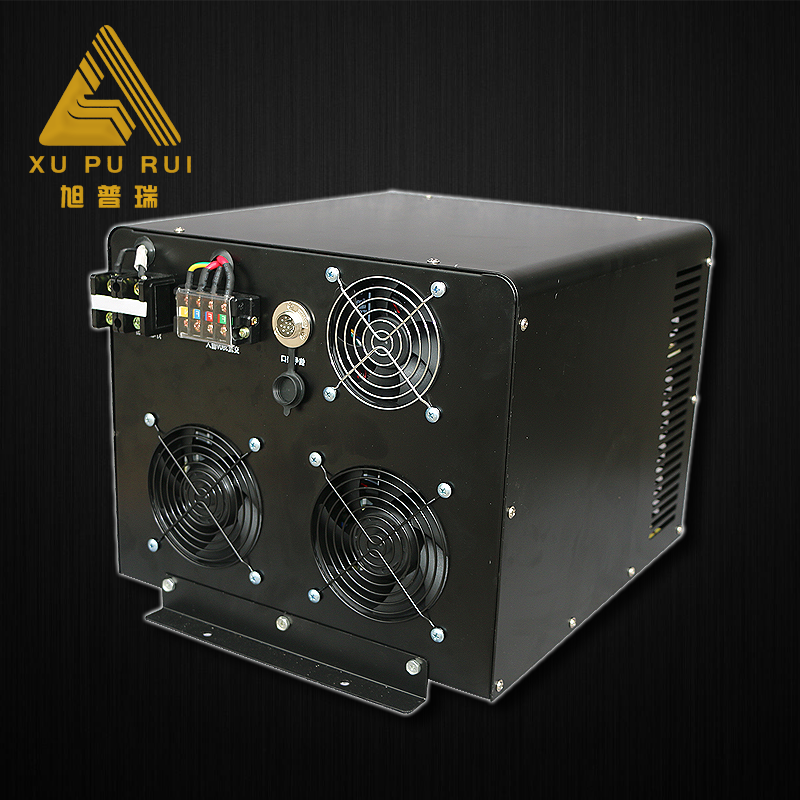

UV electronic power supply is the replacement for traditional UV transformer, which can light up both UV lamp and metal halide lamp.
2. Features
(1). High frequency square wave output (20-35khz): the output waveform is stable, and the photoelectric conversion efficiency is high.
(2).Stepless output adjustment: regulate output power of UV lamp from 10% to 100% steplessly.
(3).Anti-disturbance control system: the power control system will not affected by the electromagnetic wave, and the output intensity of the UV lamp will not changed with the input voltage.
(4).Fast power conversion: From standby to working status, the conversion time is less than 1s. So power supply can be matched with fast intermittent drying equipment.
(5).Intelligent fan control system: electronic power supply directly control the exhaust system so it will not appear that the fan exhaust too early or too much.
(6).Extending the life of UV lamp: light arc become more thick when electronic power supply light up UV lamp. So it reduce the damage to the UV lamp.
(7).Multi circuit protection: reduce the damage to power supply by mistake operation
(8).Small size and light weight: 15-20KG, reduce the load and space requirements for electric cabinet .
3. Parameters
Model | 6k | 8k | 10k | 12k | 15k |
description | 6kw | 8kw | 10kw | 12kw | 15kw |
Input | |||||
Input voltage | 380v | ||||
Input current | 9A | 12A | 15A | 18A | 23A |
Input frequency | 50/60hz | ||||
Output | |||||
Output voltage | 750v | 750v | 1000v | 1200v | 1400V |
Output current | 8A | 10.6A | 10A | 10.4A | 10.7A |
Output frequency | 35khz | 30Hhz | 30Hhz | 24Khz | 20khz |
4. Detail Sketch
5. Compared with Traditional UV Transformer
Index | Traditional transformer& capacitor | Electronic power supply |
Working frequency | 50/60hz | 20-35khz |
Photoelectric conversion efficiency | 60%-100% | 90% |
Power regulation range | 60%(the number of gears is small) | 10%-100%(Stepless output adjustment) |
Standby power | 60% | 10% |
power conversion speed | Slow | <= 1s |
Starting time | 180s | 30-90s(according to the lamp length) |
UV lamp life | 800-1000h | >2000h |
weight | Heavy | Light |
range of use | Unable applied in special industries | Meet the need of special industry |
6. Instructions
1. Power Start: first press the "screen switch" to open the screen, then press the "power switch" to start the power.
2. Manual Operation: when the power is started, the power supply will enter in working state (can be adjust to the maximum power steplessly).
3. Power Off: directly press the "screen switch" power can be shut down.(Note: When the power is off, do not press the "power on" and then press the "screen switch", which will make the power to restart. It must be directly press the "screen switch" to turn off the power. )
7. Wiring diagram
