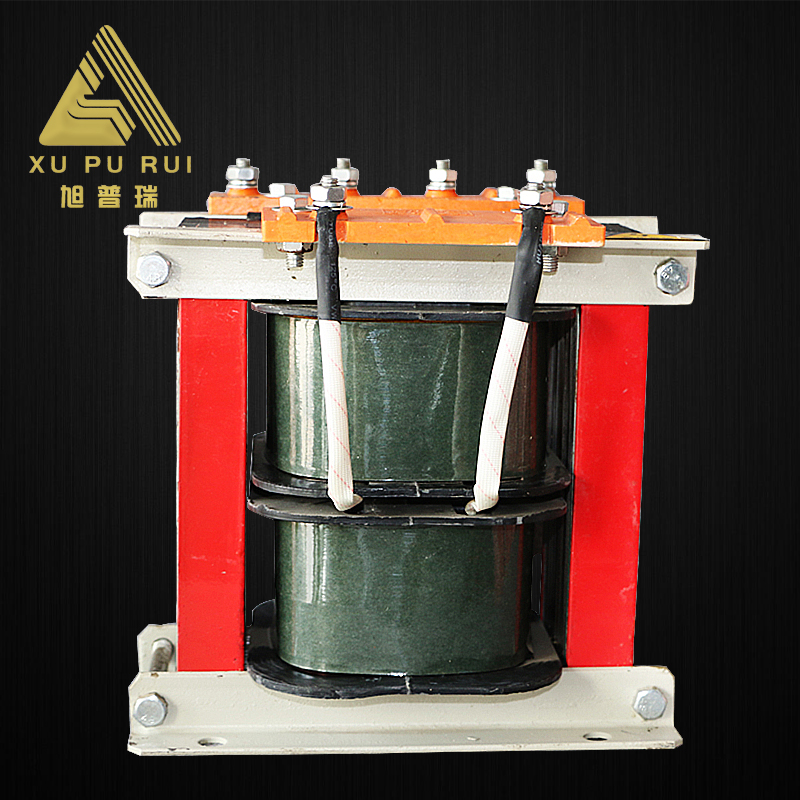

Hot products 3 phase 50HZ 380v power supply transformer for uv light
Description
This transformer is designed especially for UV lamp and metal halide lamp, in order to achieve the effective UV output.
Features
- Iron core adopts imported silicon steel sheet.
- High quality oxygen- free copper wire, with F-class insulating material outside.
- Using Vacuum Pressure Impregnation Technology.
- Independent noise reduction design
- vertical, horizontal and imitation imports style available
- Special specification can be produced according to your request.
Benefits
- Low noise
- Long lifetime
- Strong power
- Stable performance
- Low energy consumption
Dimensions:
| Coil | Watts | Input Voltage | Frequency | Dimension(mm) | Weight |
| Copper | 3kw | 220v 380v | 50-60hz | 245*210*270 | 32kg |
| Copper | 5-6kw | 220v 380v 440v | 50-60hz | 275*255*300 | 56kg |
| Copper | 9.6kw | 380v | 50-60hz | 365*280*380 | 100kg |
| Copper | 11.2kw | 380v | 50-60hz | 340*280*370 | 90kg |
| Copper | 16kw | 380v | 50-60hz | 385*300*375 | 112kg |
Specification:
| Usage | Watts | Input Voltage | Phase | Material | Coil Structure | Frequency |
| power supply for UV lamp | 3kw-25kw | 220v/380v | 3 | copper | toroidal | 50-60hz |
The following are some of our company"s other products, if you are interested can click to view.
20 years work experience,Customer-centered,Service-oriented,Credit & Quality
Main Products:
Lamps: UV tubes, metal halide (ME lamps), iron lamps, plate exposure lamps, iodine gallium lamps (M lamps), infrared lamps (IR lamps). UV light sources: UV transformers, ballasts, triggers, capacitors, UV lampshades. Consumables: Transparent quartz insulation films, coated quartz reflective films, quartz sleeves, UV energy meters, UV radiation meters, UV glasses. UV machines: Portable UV light curing machines, desktop curing machines, UV ovens.
