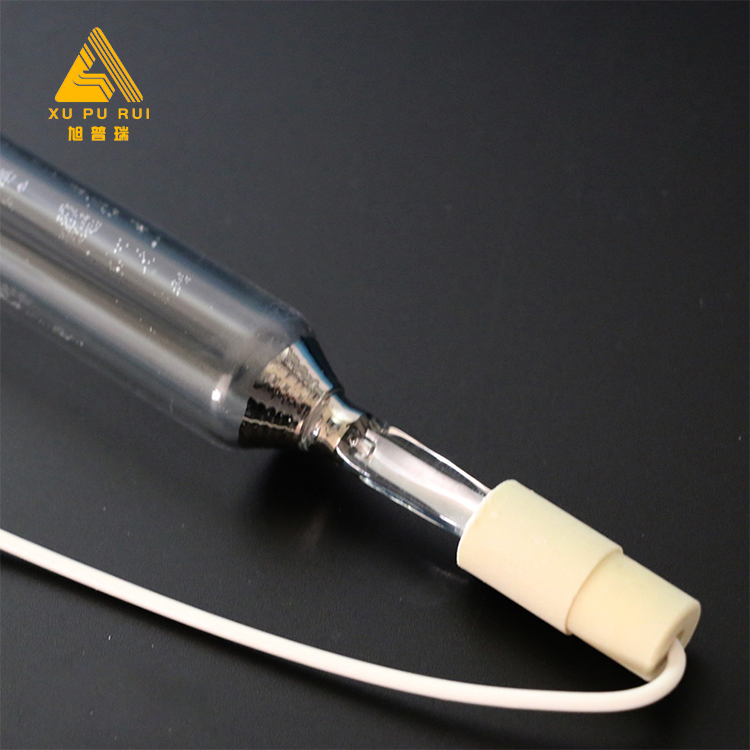

Glass tube 18kw 2500mm ink printing uv light bulb mercury lamp
| Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XPR86010028 | 1KW | 230mm | 128mm | 22.5mm | ceramic |
| XPR86010082 | 1.5KW | 370mm | 245mm | 20mm | ceramic |
| XPR86010018 | 1.8KW | 240mm | 150mm | 25mm | ceramic |
| XPR86020096 | 2KW | 380mm | 250mm | 22.5mm | metal |
| XPR86020061 | 2.32kw | 251mm | 165mm | 18mm | ceramic |
| XPR86030160 | 3KW | 473mm | 335mm | 20.5mm | ceramic |
| XPR86030023 | 3.2KW | 550mm | 405mm | 22.5mm | metal |
| XPR86030119 | 3.6KW | 240mm | 150mm | 28mm | ceramic |
| XPR86030075 | 3.6KW | 400mm | 300mm | 22.5mm | ceramic |
| XPR86040101 | 4KW | 460mm | 385mm | 20mm | ceramic |
| XPR86040018 | 4.8KW | 500mm | 400mm | 22.5mm | ceramic |
| XPR86050113 | 5KW | 436mm | 353mm | 22.5mm | ceramic |
| XPR86050125 | 5KW | 380mm | 255mm | 25mm | ceramic |
| XPR86060008 | 6KW | 930mm | 775mm | 21mm | ceramic |
| XPR86060023 | 6.3KW | 650mm | 525mm | 22.5mm | ceramic |
| XPR86070028 | 7KW | 335mm | 270mm | 30mm | ceramic |
| XPR86070015 | 7.5KW | 778mm | 620mm | 25mm | ceramic |
| XPR86080066 | 8KW | 630mm | 520mm | 25mm | ceramic |
| XPR86090032 | 9KW | 850mm | 770mm | 25mm | ceramic |
| XPR86100003 | 10KW | 1386mm | 1230mm | 21mm | ceramic |
| XPR86110001 | 11KW | 1575mm | 1430mm | 22.5mm | ceramic |
| XPR86120060 | 12KW | 870mm | 770mm | 25mm | ceramic |
| XPR86160026 | 16.5KW | 1575mm | 1430mm | 25mm | ceramic |
- GE Pure Quartz Tube
We use the quartz tubes provided by the American GE company, which have a high UV transmittance and low hydroxyl content .
- CE and IEC Certification
Our uv lamps are of data accuracy , high strength and long life.
- 800 Hours Warranty
If properly installed and maintained, the lifetime is often more than 1000 hours, which is the feedback we get from our customers.
- Customer-made Specification
Different overall length, arc length, and tube diameter can be customized.
- Engineers available to provide after-sales service
Our technicians, with more than 20 years experience in special light source, will provide pre-sales and after-sales technical support within 24 hours.
When you inquiry, please inform us the following details:
1.Operating voltage and operating current you need.
2.Power and outside dimension you need.
3.Special requirements if you have.
