380nm 403nm 417nm metal halide replacement bulb
1. Products descriptions
High-intensity UV metal halide lamp is the development of high pressure mercury lamp. Filled with gallium iodide, iron iodide as well as some rare metal halide, This lamps have addtional wavelength-- 380nm, 403nm and 417nm.
2. Application
Iron iodide UV lamp in 380nm:
hardening reaction in film, screen, PCB, diazo film, photopolymer photopolymer and daylight film exposure systems.
Gallium iodide UV lamp in 403nm and 417nm:
photochemistry photographic plate, S plate, lithography resin plate and other light-cured areas.
3. Advantages
- Quicker start
- Shorter exposure time
- Higher intensity
- Longer lifetime
- More stable
4. Specification
| Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XUP68000002 | 400W | 118mm | 35mm | 22.5mm | metal |
| XPR16010001 | 1KW | 187mm | 95mm | 17mm | ceramic |
| XPR68010019 | 1.2KW | 136.5mm | 88mm | 18mm | ceramic |
| XPR68010015 | 1.5KW | 215mm | 125mm | 25mm | ceramic |
| XPR16020009 | 2KW | 120mm | 110mm | 28mm | ceramic |
| XPR68020011 | 2.4kw | 267mm | 195mm | 26mm | ceramic |
| XPR16030009 | 3KW | 230mm | 102mm | 25mm | ceramic |
| XPR68030023 | 3.6KW | 430mm | 330mm | 25mm | ceramic |
| XPR16040002 | 4KW | 280mm | 150mm | 25mm | ceramic |
| XPR68040007 | 4.8KW | 400mm | 300mm | 25mm | ceramic |
| XPR16050007 | 5KW | 188mm | 102mm | 28mm | ceramic |
| XPR68050002 | 5.6KW | 926mm | 806mm | 22.5mm | ceramic |
| XPR68060001 | 6KW | 600mm | 500mm | 22.5mm | ceramic |
| XPR16060001 | 6.7KW | 676mm | 560mm | 25mm | ceramic |
| XPR68070003 | 7.5KW | 725mm | 625mm | 22.5mm | ceramic |
| XPR16080003 | 8KW | 778mm | 645mm | 25mm | ceramic |
| XPR68080006 | 8.4KW | 800mm | 715mm | 25mm | ceramic |
| XPR68090003 | 9KW | 850mm | 730mm | 25mm | ceramic |
| XPR16090001 | 9.6KW | 1490mm | 1330mm | 25mm | ceramic |
| XPR68100001 | 10KW | 1050mm | 950mm | 25mm | ceramic |
| XPR68110002 | 11.2KW | 1550mm | 1380mm | 22.5mm | ceramic |
| XPR68120006 | 12KW | 1110mm | 990mm | 22.5mm | ceramic |
| XPR16130002 | 13KW | 884mm | 770mm | 28mm | ceramic |
| XPR68150001 | 15KW | 1270mm | 1150mm | 25mm | ceramic |
Note: These are just a list of some products. We can offer customized products as you need.

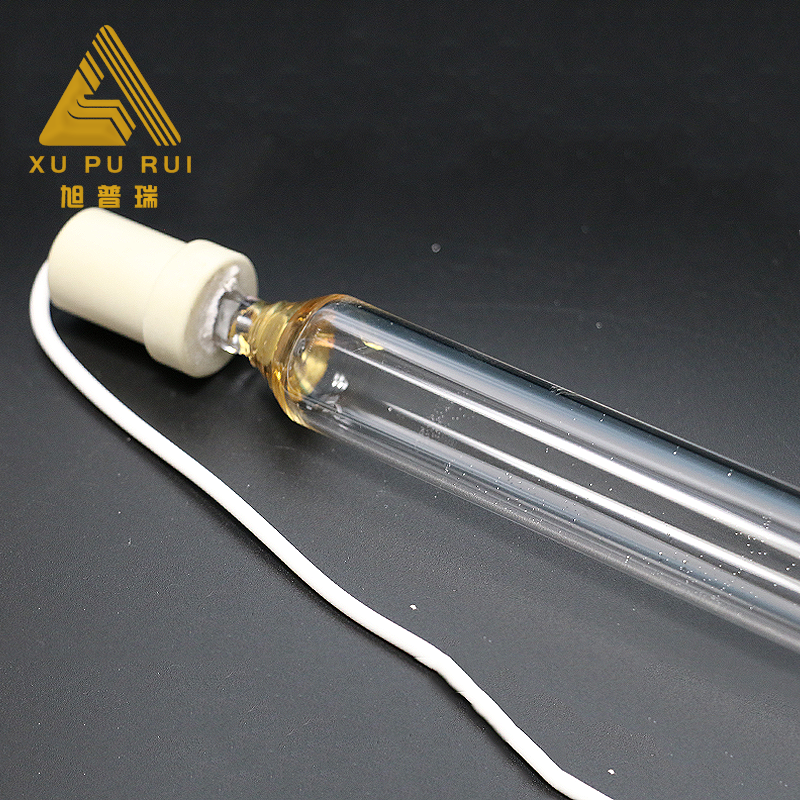

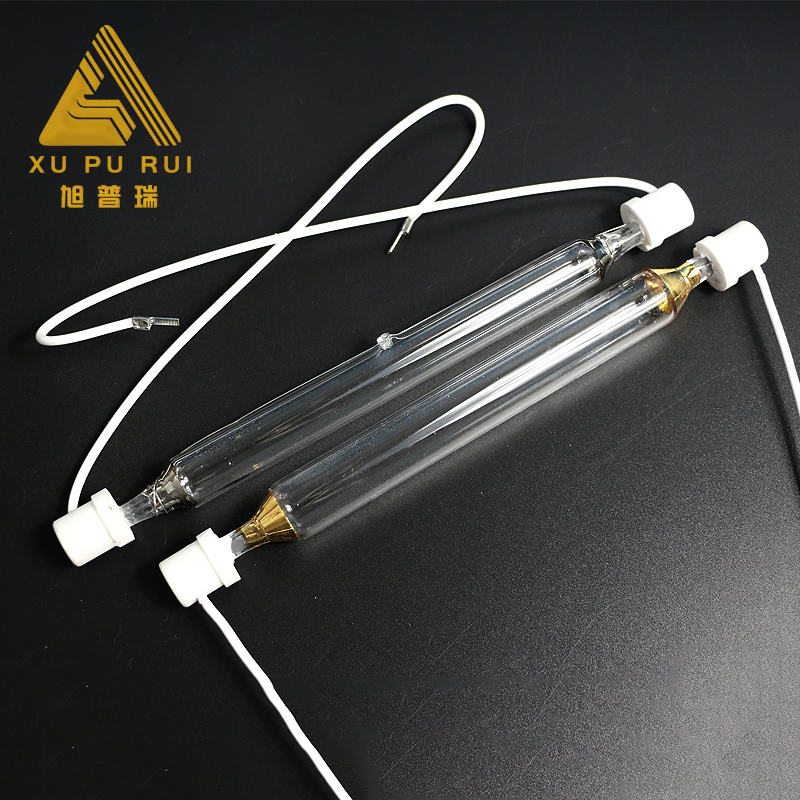

5.Product pictures
1. Our factory
2. Main products
3. Why choose us
- GE Pure Quartz Tube
We use the quartz tubes provided by the American GE company, which have a high UV transmittance and low hydroxyl content .
- CE and IEC Certification
Each lamp has a high data accuracy, stable and reliable performance.
- 800 Hours Warranty
If properly installed and maintained, the lifetime is often more than 1000 hours, which is the feedback we get from our customers.
- Customer-made Specification
More than 1000 kinds of uv lamps are provided. Rated Power range from 250W to 36KW.Power Density range from 30w/cm to 300w/cm. Ozone and ozone free are both available.
3.Certificates
- OEM available;
- Customize available;
- If you are not sure which specification you need,please fill the drawing below.We could produce as your require.
- Any problem just contact global trading managers:
Skype
Tel
Trademanager
QQ
Fax
beckyxpr
+86-15194973615
cn220191713
2463039213
+86-312-3601595
rachelxpr
+86-15188976077
cn220191987
2412734390
JaneXPR
+86-15230289581
cn1000755795
2461540752
xupurui002
+86-15194973615
cn100075138
2584936419
Q: Is your company a factory or trading business?
A: We are a factory manufacturing UV products.
Q: MOQ?
A: 7 pieces if don’t have in store.
Q: Quality assurance?
A: Guarantee lifetime is 800 hours, but it can reach more than 1000 even 2000 hours, that’s our clients’ feedback. If can’t reach, we’ll replace for you.
Q: How do you control the quality of the company?
A: We begin quality control from raw materials. 20 years experience engineers guide production. And stable and professional technical workers engaged in production.
Q: Where is your factory located?How can I visit there?
A: Our fatory is located in Zhuozhou city, Hebei Province, China. From Beijing to Zhuozhuo is about 1.5 hours bus ride.
Q:What types of payment do you support?
A:TT / PayPal / Western Union / MoneyGram.
