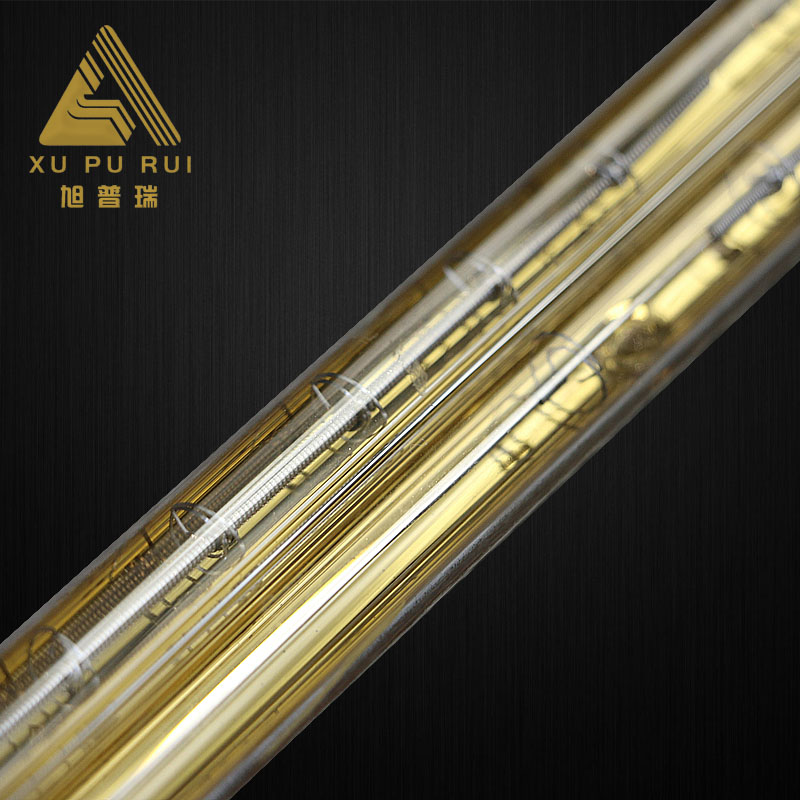

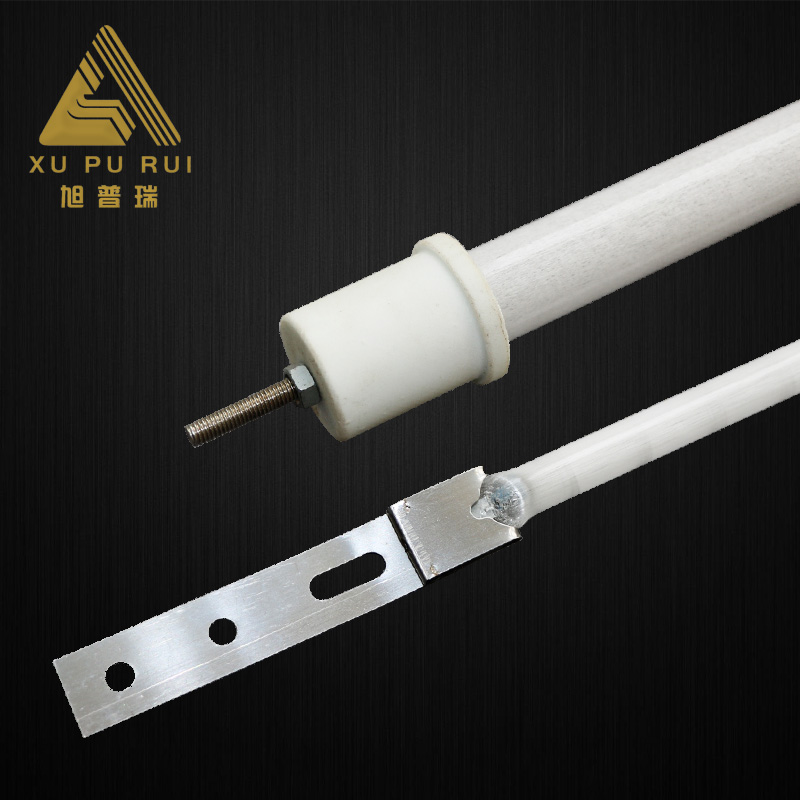

CE 6kw 380v heating infrared halogen quartz heating lamp for printer
IR lamp series
IR lamp, also known as infrared heating lamp, is the main component of the radiation in the infrared spectral range of the lamp. Infrared light can provide accurate control of energy radiation, can be used for heating, infrared lamps are widely used in machinery, automotive, food, medical and other industries.
carbon fiber features
Imported spiral carbon filament has high thermal stability. Heating up quickly, than the traditional metal materials more than 30% energy saving, acid resistance, corrosion resistance.
| product name | infrared lamp |
| Usage | infrared heating and drying |
| Wavelength | 1.2 ~ 1.4 microns |
| Rated Power | 300w ~ 6000w |
| Input Voltage | 110v/ 220v/ 380v |
| Overall Length | 50 ~ 2800mm |
| Tube Diameter | 18 ~ 20mm |
| Tube Material | high purity quartz |
| Tubular | Standard, U-shape, H-shape, Bended |
| Response Time | 1 s |
| Certification | CE |
| Warranty | 8000 hours |
| Custom Available | Yes |
Space heating: sauna, outdoor heater, bathroom heater, farm incubating
Automotive: primer coat, color coat, powder coat, seat de-wrinkling
Plastics: melting, welding, forming
PVC/PET: bottle blowing, film shrinkable packing
Food: baking, browning, dehydrating, pasteurizing
Electronics: re-flow soldering, water dry-off, silk screening
Glass/Ceramics: heating safety glass, drying mirrors, drying frit
