UV electronic power supply for uv lamp
Click on the image to view the original image
Product： views：6UV electronic power supply for uv lamp
Branch： xupurui
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 17:36
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
xupurui
Model Number:
uv supply
Output Power:
Other
Output Type:
TRIPLE
Input Voltage:
380v
Output Frequency:
50/60Hz
Output Current:
8-10.7A
Product Name:
UV electronic power supply
Usage:
uv transformer replacement
Application:
lighting uv lamp/ metal halide lamp
Working:
20-35khz
Photoelectric conversion efficiency:
90%
Power Regulation Range:
10%-100%(Stepless output adjustment)
Standby power:
10%
Starting time:
30-90s
power conversion speed:
<= 1s
UV lamp life:
>2000h
Output Voltage:
750v-1400v
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
woorden case
Port
Beijing, Shenzhen, kongHong, Tianjin
Lead Time:
Shipped in 7 days after payment

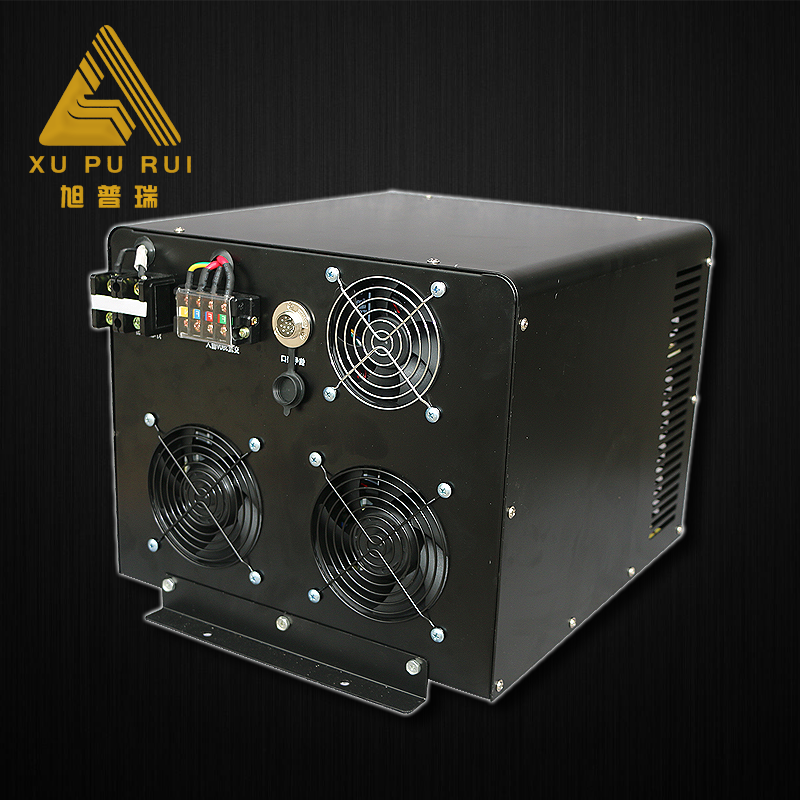

UV electronic power supply

UV electronic power supply is the replacement for traditional UV transformer, which can light up both UV lamp and metal halide lamp.

With unique switching power supply and nano-materials technology, UV electronic power supply has many advantages such as: efficient energy , advanced features, small size, light weight, high reliability, etc. providing high quality power supplies for UV curing industry, printing industry, paint industry and many other industries. Output power can be adjusted in 10% -100% steplessly. electronic power supply is a high-performance UV power supply and has become completely replacement for UV transformer. It can replace UV transformer and show a high performance.





 •20% -30% increase of the energy output compared with traditional transformer


•Operating in flash mode and reducing energy consumption

•Reducing start time (about 45 seconds) and extending the lamp life

•Easy to install: 1/5 Weight and 1/8 volume of conventional power supply



UV Electronic power supply

Environmental friendly/ Energy saving/ Low operating cost

Stepless adjustment from 10% to 100%





  Manual control



                   PLC control

Product advantage

High frequency square wave (18KHz out put)
Compared with traditional power, it has an 20% -30% increase of energy output.
Operating in flash mode and reducing energy consumption.

Soft switch Start System
Reducing start time (about 45 seconds) and extending lamp life
SCM Dynamic Control technology
Make power supply conversion efficient.
Automatically reach to the optimum operating voltage and current.
Real-time monitoring and automatically adjusting the operating parameters of the lamp

High-speed IGBT and soft-switching technology
8ms response from standby to full power output.
Power Amplitude modulation
Technology
Output power adjusted steplessly.
Long standby, only 10% of the minimum power.
Phase balance technology
Power factor 96%, no inrush current, cosφ=1
Self-test and circuit protection technology
Self-test function, a variety of circuit protection measures
Excellence structure design
1/5 weight and 1/8 volume of conventional power supply, easy to install.

Maximum 40% energy saving

The traditional transformer and capacitor cannot achieve energy saving







Compare with similar products
Traditional UV transformer+ Capacitor
SCR mode
Switch power supply mode
Working frequency
50/60 Hz
50/60 Hz
18 KHz
Efficiency
30%-80%
30%-80%
>90%
Power factor
Very low
Very low
Stabilized at 90%
Cosφ
Poor
Poor
1
Control mode
Analog control
Using analog control current and voltage phase shift
Vector power mode
Whether digital control
Simple electromagnetic control
Analog
Analog and SCM
Wave form
Sinusoidal voltage waveform generated tremendous harmonic interference
In the mode of current and voltage to produce a huge harmonic interference
Smooth square wave
Adjustment range
50%-100%(2-4 stalls)
40% -100% adjustable steplessly
10% -100% adjustable steplessly
Standby power
50%(typical)
40%(typical)
10% long standby
Preheating time
About 4 minutes
About 4 minutes
About 30 seconds
Standby to light up
20 seconds
20 seconds
8ms
Response time
2 seconds
2 seconds
2ms
Connection to PLC
complex
complex
simple
Dimension and weight(10kw for example)
100kg
100kg
10kg

                                  Technical parameters

Power model
Lamp model
Input voltage
Dimension
Weight(kg)
2K150
150V/13A
Single phase 220V
280*145*200
6
2K250
250V/8A
Single phase 220V
280*145*200
6
4K400
400V/10A
Three phase 380v
265*220*210
8
6K400
400V/15A
Three phase 380v
265*220*210
9
6K900
900V/6.8A
Three phase 380v
265*220*210
9
8K
1150V/7A
Three phase 380v
354*220*210
11.5
9.6K
1380V/7A
Three phase 380v
354*220*260
12
11K
1450V/7.5A
Three phase 380v
370*230*225
13
12K
1500V/8A
Three phase 380v
370*230*225
13
13K
1500V/8.7A
Three phase 380v
370*230*225
13.5
15K
1750V/8.6A
Three phase 380v
370*230*225
14
17K
1800V/9.5A
Three phase 380v
420*230*225
16
19K
2000V/9.5A
Three phase 380v
420*230*225
17

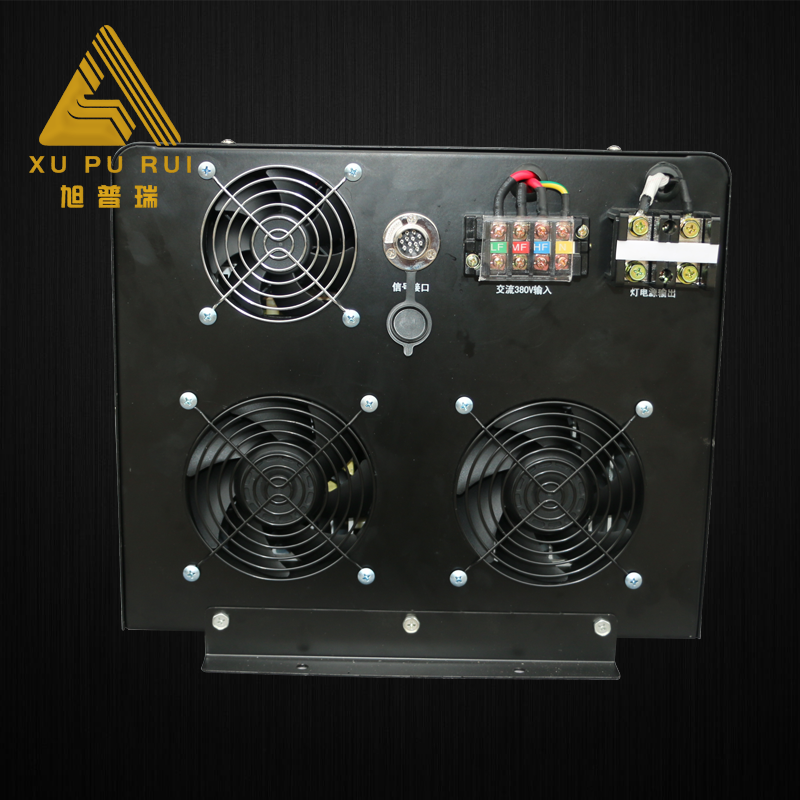

Power  input





        three-hole socket:L1,L2,L3 is alternating current input



About us

Established in 1995, Xupurui has become a specialist manufacturer in special light source offering design, production, after-sales service. All of our lamps are made of USA materials. With the help of experienced professional team, excellent quality of production, quality inspection equipments, advanced production technology, modern management system, our products has been exported to all over the world.



Xupurui supplies 2016 newest stepless adjustable electronic power supply, that compatible with UV lamps & metal halide lamps. One equipment includes cabinet, ballast and stepless adjust module, etc. Electronic power supply and UV lamp form a set of UV light source system, used in various of applications such as printing equipments, offset printing equipments, spraying equipments, etc.
