Product Description
Description:

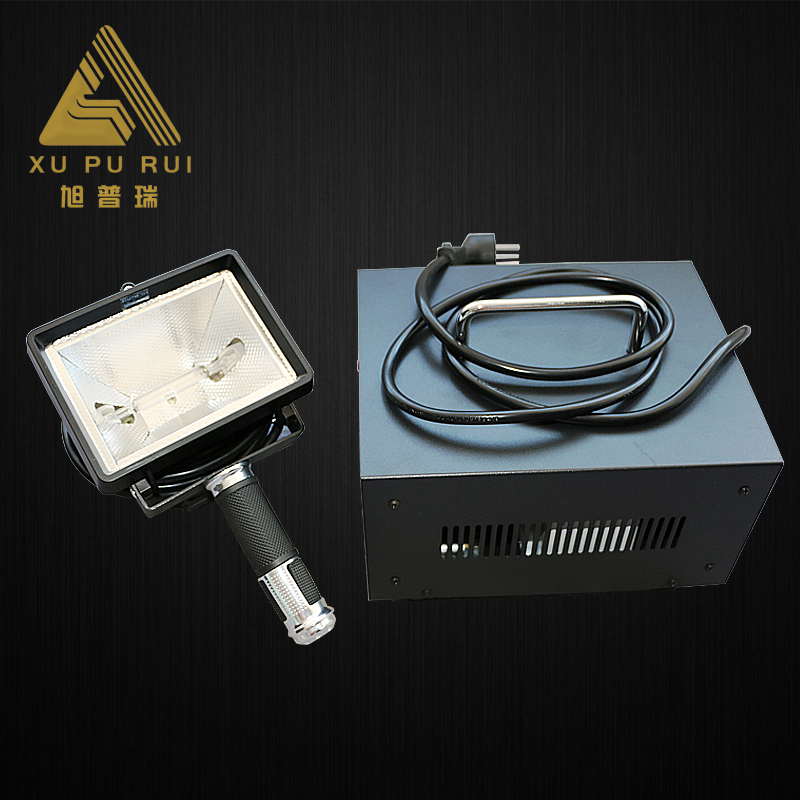

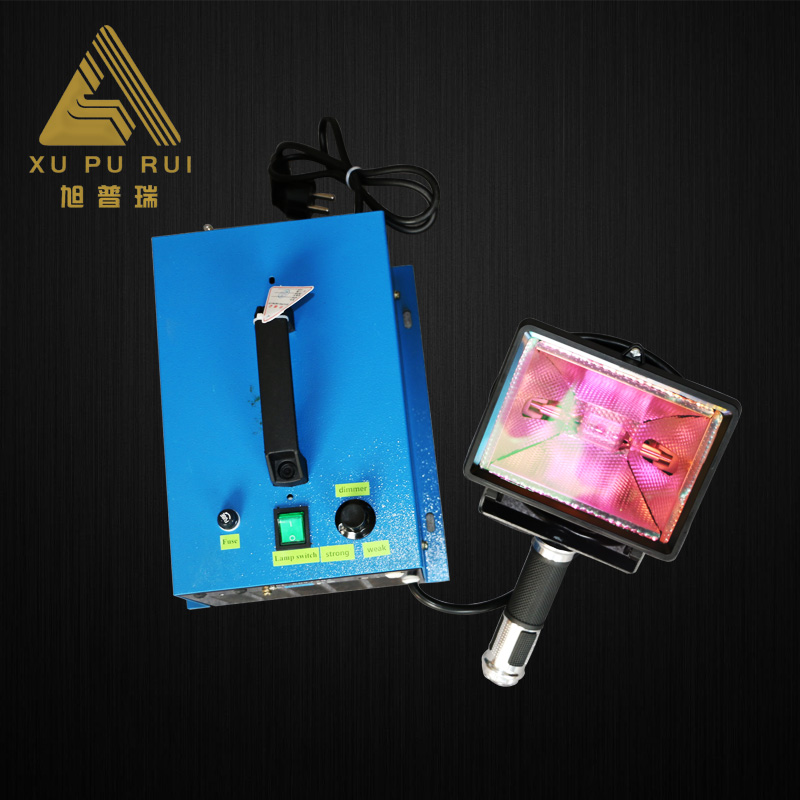

This machine is a set of portable ultraviolet curing equipment, which is suitable for small batch production. It is designed to split structure, consisting of UV lamp box and power supply box. Due to its high flexibility and versatility, This UV curing machine has been widely used in UV curing process.
Features:
- Wide usage range
- Instant curing
- Large irradiation area
- Easy and convenient
- easy-to-use and removable
- Multi-angle curing available
- Optional quartz filters
- Enhanced cooling system
- Automatic air switch, safe to use
- constant work
| Portable UV curing machine | 250w simplify | 250W Standard | 400W | 500W | 1kw simplify | 1kw Standard | 2kw | 3kw |
| Light box weight | 0.5 kg | 1 kg | 1 kg | 3 kg | 2 kg | 3 kg | 4 kg | 5.5 kg |
| Power box weight | 3.5 kg | 4 kg | 4.5 kg | 8.5 kg | 10 kg | 11 kg | 15 kg | 18 kg |
| Lamp length | 120mm | 120mm | 120mm | 170mm | 230mm | 230mm | 400mm | 500mm |
| Input voltage | 220v | 220v | 220v | 220v | 220v | 220v | 220/380v | 220/380v |
| Lightbox size | 240*170 *85mm | 170*180 *160 | 200*160 *160mm | 280*160 *160mm | 340*130 *130mm | 320*160 *200mm | 530*180 *220mm | 650*200 *240mm |
| Power Box size | 220*180 *170mm | 220*180 *170mm | 200*160 *180mm | 350*160 *220mm | 420*160 *200mm | 430*160 *270mm | 480*180 *240mm | 580*200 *260mm |
| Remark | with a cooling fan | Suitable for short-term operation |
