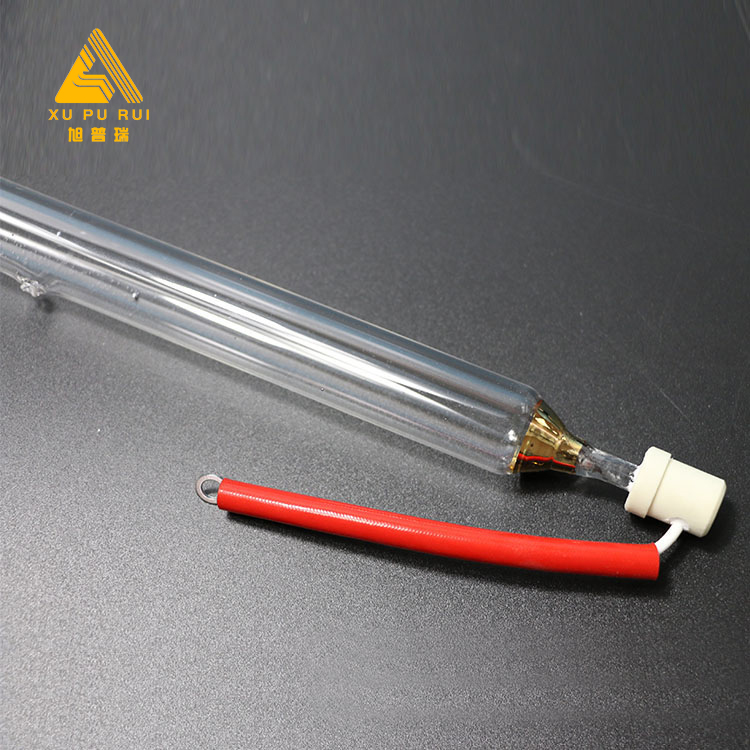

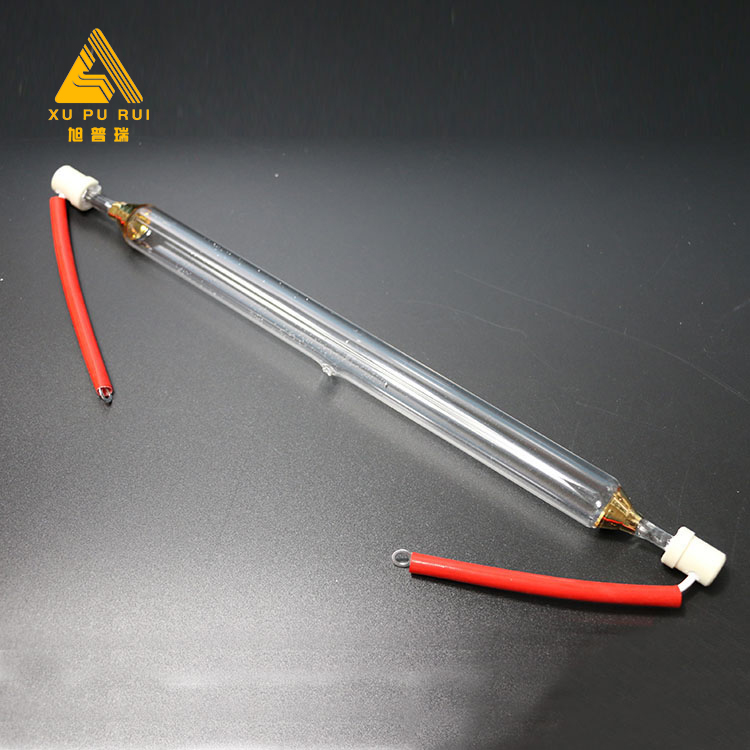

High quality customized 250w 3kw 120mm uv mercury lamp for printer
Description
This machine is a set of portable ultraviolet curing equipment, which is suitable for small batch production. It is designed to split structure, consisting of UV lamp box and power supply box. Due to its high flexibility and versatility, This UV curing machine has been widely used in UV curing process.
Features
- Wide usage range
- Instant curing
- Large irradiation area
- Easy and convenient
- Easy-to-use and removable
- Multi-angle curing available
- Optional quartz filters
- Enhanced cooling system
- Automatic air switch, safe to use
- Constant work
Benefits
- Cost-effective
- Energy efficient
- Long lifetime UV lamp
- Imported aluminum UV reflector
Specification
Irradiation distance | 80-200mm |
Input | AC220V/380V,45-60HZ |
Light source | High pressure mercury lamp |
UV Intensity | 80-120w/cm |
Peak wavelength | 365nm |
Cooling method | Air-cooled exhaust |
Power cord length | 3m |
Connection wire length | 2m |
Application
- Furniture, floor paint curing
- Marble surface polishing
- Automotive UV painting
- Paint aging test, scientific experiments
- UV glue fast curing
- Model making, crafts molding
- Laboratory and temporary simple construction maintenance
Model
UV Power | Lamp length | Arc length | Input |
250w | 120mm | 70mm | 220v 50hz |
500w | 170mm | 75mm | 220v 50hz |
1kw | 230mm | 150mm | 220v 50hz |
2kw | 400mm | 250mm | 220v/380v 50hz |
3kw | 500mm | 350mm | 220v/380v 50hz |
