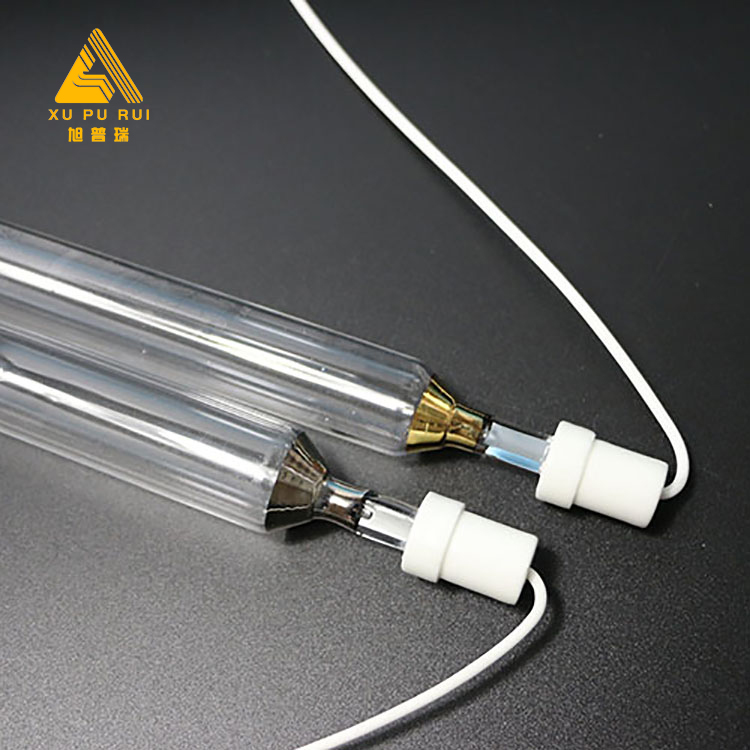

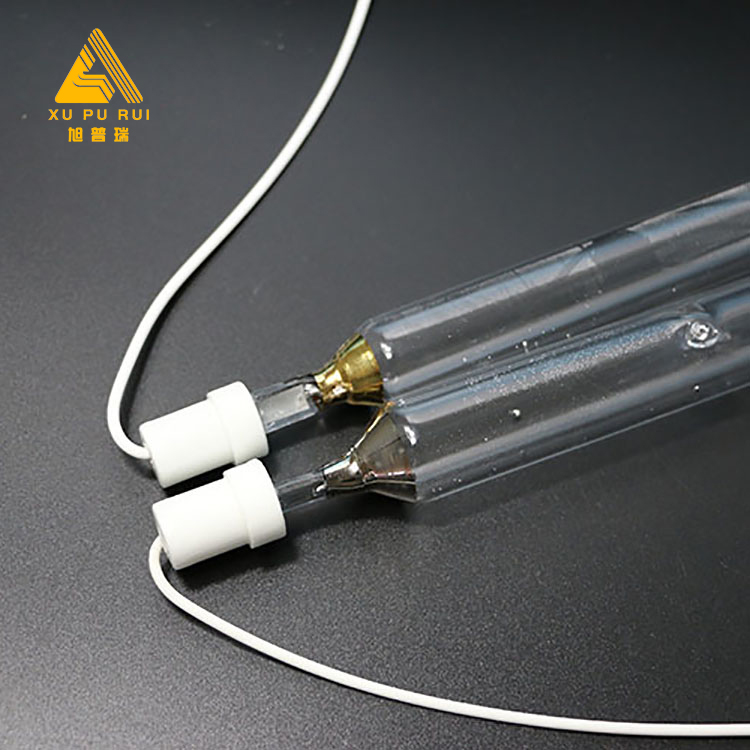

uv lamp for silk screen printing ink
Another name is Ultraviolet high pressure mercury lamp, is a kind of lighting source which use 365nm long-wave ultraviolet spectrum, lamp power density generally is 50w/cm-250w/cm, power is 200w-22kw. Should be work with the transformer and ballast in same specifications. This kind of lamp is mainly used for printing, platemaking, label printing, paper polishing, metal printing and curing for all kinds of materials coated with photosensitive ink & paint, is agenerally used of ultraviolet light source.
| Wavelength | 350nm to 380nm |
| Fill | Mercury |
| Input voltage | 220V / 380V |
| Power output | 120w to 36kw |
| Arc length | 50mm to 2000mm |
| Lamp density | 30/80/120/160/200/240/300 w/cm |
| Material | GE quartz glass tube |
| Tube Diameter | 13mm to 40mm |
| End caps | Ceramic / metal ( more than 100 kinds) |
| leads | Teflon |
Product ID | Watts | Overall Length | Arc Length | Tube Diameter | Lamp Base |
| XPR86010028 | 1KW | 230mm | 128mm | 22.5mm | ceramic |
| XPR86010082 | 1.5KW | 370mm | 245mm | 20mm | ceramic |
| XPR86010018 | 1.8KW | 240mm | 150mm | 25mm | ceramic |
| XPR86020096 | 2KW | 380mm | 250mm | 22.5mm | metal |
| XPR86020061 | 2.32kw | 251mm | 165mm | 18mm | ceramic |
| XPR86030160 | 3KW | 473mm | 335mm | 20.5mm | ceramic |
| XPR86030023 | 3.2KW | 550mm | 405mm | 22.5mm | metal |
| XPR86030119 | 3.6KW | 240mm | 150mm | 28mm | ceramic |
| XPR86030075 | 3.6KW | 400mm | 300mm | 22.5mm | ceramic |
| XPR86040101 | 4KW | 460mm | 385mm | 20mm | ceramic |
| XPR86040018 | 4.8KW | 500mm | 400mm | 22.5mm | ceramic |
| XPR86050113 | 5KW | 436mm | 353mm | 22.5mm | ceramic |
| XPR86050125 | 5KW | 380mm | 255mm | 25mm | ceramic |
| XPR86060008 | 6KW | 930mm | 775mm | 21mm | ceramic |
| XPR86060023 | 6.3KW | 650mm | 525mm | 22.5mm | ceramic |
| XPR86070028 | 7KW | 335mm | 270mm | 30mm | ceramic |
| XPR86070015 | 7.5KW | 778mm | 620mm | 25mm | ceramic |
| XPR86080066 | 8KW | 630mm | 520mm | 25mm | ceramic |
| XPR86090032 | 9KW | 850mm | 770mm | 25mm | ceramic |
| XPR86100003 | 10KW | 1386mm | 1230mm | 21mm | ceramic |
| XPR86110001 | 11KW | 1575mm | 1430mm | 22.5mm | ceramic |
| XPR86120060 | 12KW | 870mm | 770mm | 25mm | ceramic |
| XPR86160026 | 16.5KW | 1575mm | 1430mm | 25mm | ceramic |
