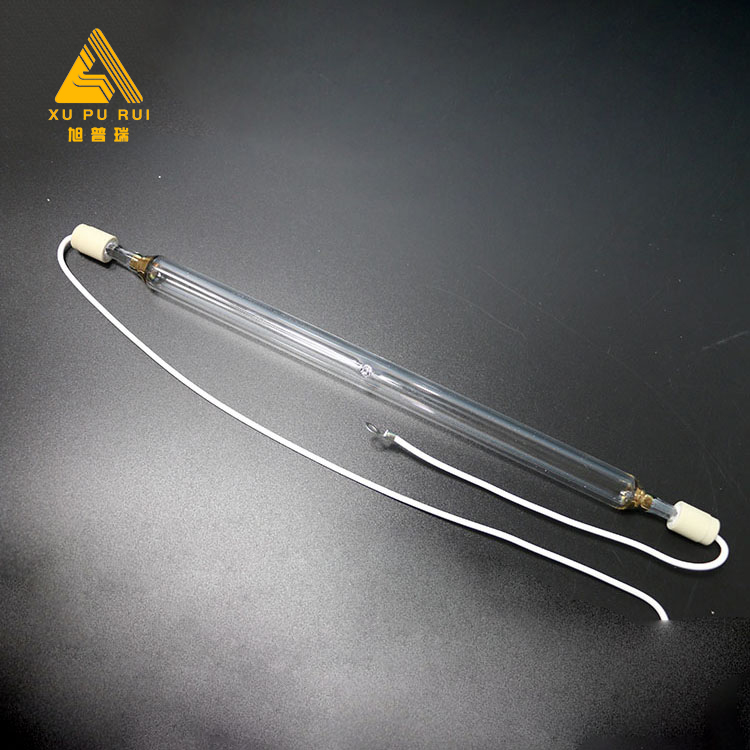

Ceramic metal base 4.5kw uv lamp ultraviolet light for printing machines
Description:
Standard UV curing lamps, also called UV lamps, are core parts of surface light curing industry.
UV technology
Industrial UV light source ranges in spectrum from 200nm to 450nm. When it comes to typical 350-380nm, ultraviolet light was absorbed most effectively by UV photoinitiators. Over decades UV technology has proven to be a success in printing, packaging, decorating, finishing and other fields.
Specializing in UV products for 16 years, Xupurui has been a professional manufacturer of UV curing lamps and metal halide lamps. Our inkjet lamps can be supplied in arc lengths from 50 mm to 3,000 mm and in outputs up to 60 kW. All lamps can operate at 50 or 60Hz.
We are proud of being UV lamp manufacturer and service provider to meet or exceed customers’ requirement.
Benefits:
- Handcrafted
- 800 hours warranty
- Cost-effective
- Customized available
- CE IEC
- 7 days delivery
| Wavelength | 350nm to 380nm |
| Fill | Mercury |
| Input voltage | 220V / 380V |
| Power output | 120w to 36kw |
| Arc length | 50mm to 2000mm |
| Lamp density | 30/80/120/160/200/240/300 w/cm |
| Material | GE quartz glass tube |
| Tube Diameter | 13mm to 40mm |
| End caps | Ceramic / metal ( more than 100 kinds) |
| leads | Teflon |
- USA GE MATERIAL
All the tubes imported form USA GE Quartz,with High melting point,Hardly deformed,Long lifetime,99% transmittance,Stable performance.

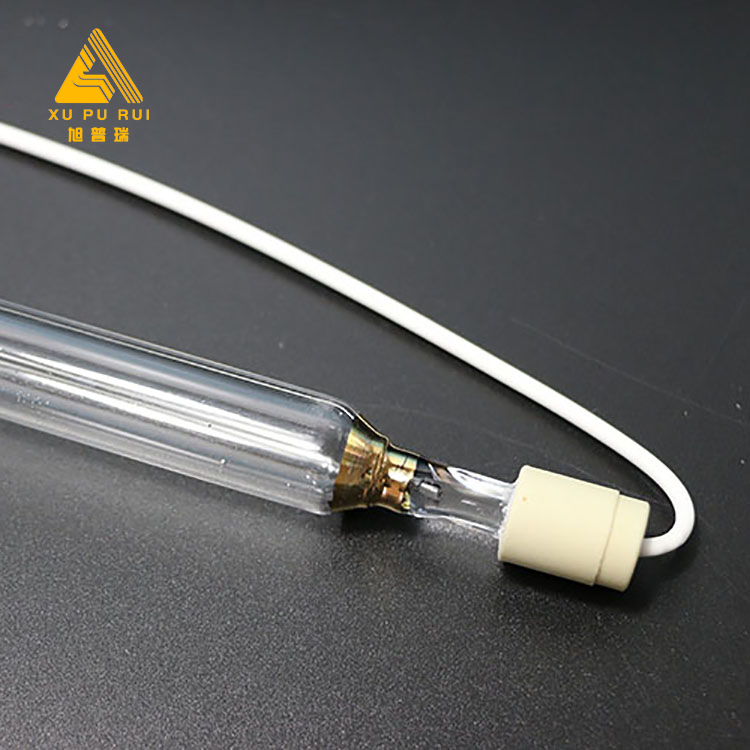

- High Quality Lamp Holder
Use high quality ceramic lamp holder,with smooth and good finish surface,high temperature,oxidation resistance.high insulation performance.We have all kinds of different models,and can be customized.
- Pure tungsten electrode
Use the highest-purity tungsten electrode,wear resistance,keep the longer lamp lifetime.
- High temperature resistance wire
Glass fiber wire: use Tin-coated pure cooper,the inner layer is insulated with high temperature silicone rebber,and the other layer is covered with glass fiber braid.
Teflon wire: use Sliver-coated pure cooper,covered by PTEE. Good finishing suface.Excellent electrical conductivity,high temperature resistance,ageing resistance,wear resistance,safety is guaranteed.
