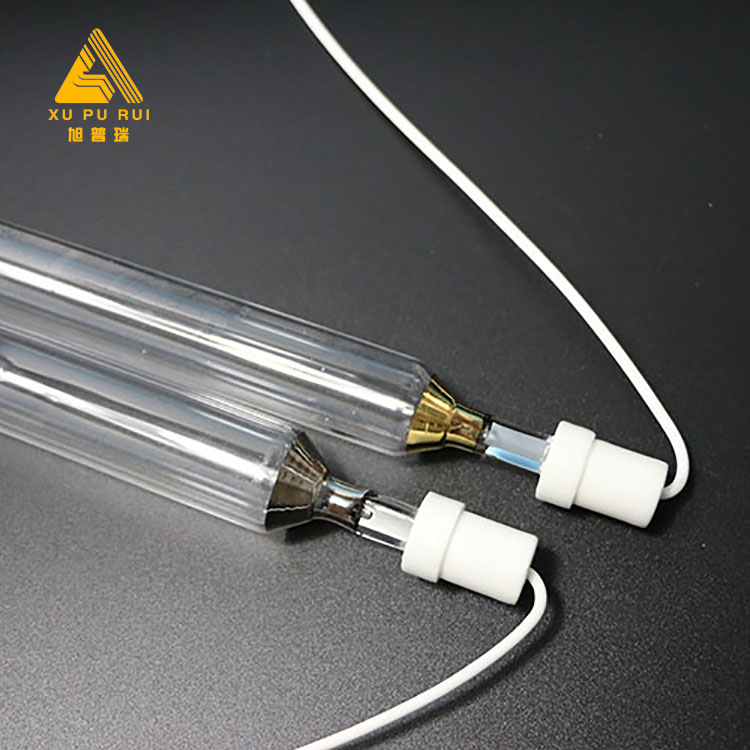

Wholesale price 1000w ultraviolet light high pressure mercury uv lamp
- Wide Use
UV curing lamps are adapted to the surface curing process of metal,wood,ceramic,glass,paper,plastic,etc.
- Good Stablity
The spectral distribution has no obvious change after long-time use.
- High Curing Efficiency
UV energy output is high and uniform.So the curing speed is fast.
| Item Name | uv curing lamp |
| Application | for offset printing machine, inkjet printing machine |
| Spectrum | 365 nm |
| Rated Power | 1kw ~ 18kw |
| Overall Length | 115-2500mm |
| Arc Length | 40-2400mm |
| Tube Diameter | 13-40mm |
| Metal Base | Ceramic or Metal |
| Power Density | 30/80/120/160/200/240/300 w/cm |
| Tube Material | American GE pure quartz tube |
| Filler | Mercury/Halogen |
| Certification | CE and IEC |
| warranty | 800 hours |
4.Details Sketch
5.Our Advantages
- GE Pure Quartz Tube
We use the quartz tubes provided by the American GE company, which have a high UV transmittance and low hydroxyl content .
- CE and IEC Certification
Each lamp has a high data accuracy, stable and reliable performance.
- 800 Hours Warranty
If properly installed and maintained, the lifetime is often more than 1000 hours, which is the feedback we get from our customers.
- Customer-made Specification
More than 1000 kinds of uv lamps are provided. Rated Power range from 250W to 36KW.Power Density range from 30w/cm to 300w/cm. Ozone and ozone free are both available.
6.Spectrum
