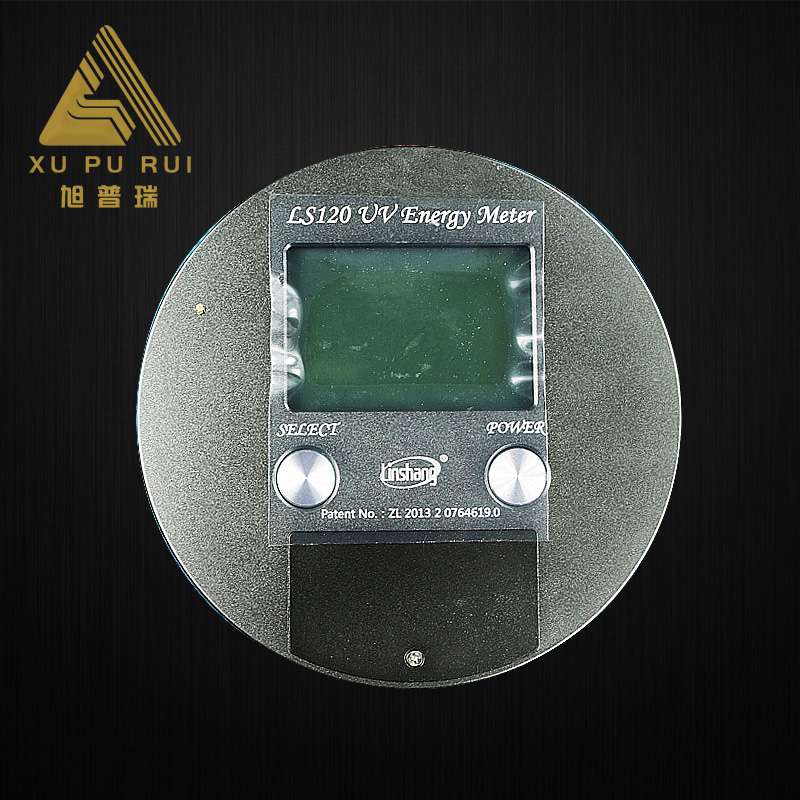

LS 120 can measure the UV energy density,UV irradiance and temperature at the same time. It can be used to:
Detect the UV energy density, UV irradiance and temperature of UV curing machine.
Measure the UV irradiance and temperature of machines,such as UV drying machine,exposure machine and peinting machine etc.
1.It is the real smart UV energy meter with a large LCD to display the temperature and irradiance curve directly.
2.It is equipped with a USB port, and the computer software can read the detailed record data,generating data curve and print out test reports.
3.It is with a high precision fast response tempera ture sensor and can measure the real tempera ture in the curing machine dynamically.
4.It is with a built-in heat resisting sheet,can resist high temperature and operate at 100℃ for long time.
5.The meter is with a built-in large memory and can record irradiance data up to 60000 and temperature data up to 3800.
6.The stored data will not be lost when the the power is off and the last test data will be displayed automatically when power is on;the test data can only be deleted manually.
7.It is with high accuracy , and has passed many tests of authoritative testing organizations and got certificates.
8.It is with a built-in timer, and can record the UV curing time accurately.
1.The meter sensor at the back of meter.
2.When not in use , please turn off the meter
3.Avoid contact with corrosive materials and keep away from high humidity.

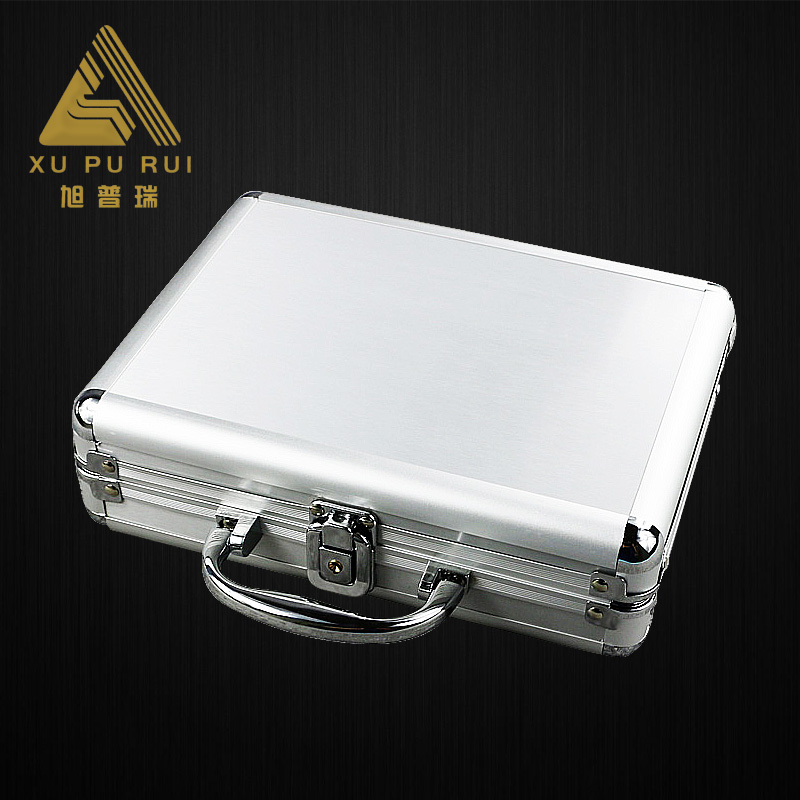

4.Please put it in the specialized package after power-off and keep properly.
5.The suggested calibrating peried is one year , and our company has the standard light source and procides calibration service.(The previous calibration time “Calibration:year/month/day”will be disolayed on the boot screen.)
6.For the UV sensor is very sensitive to humidity , the storage environment is very important.For a long time storage,pleasr be sure to keep the meter in dry environment.
