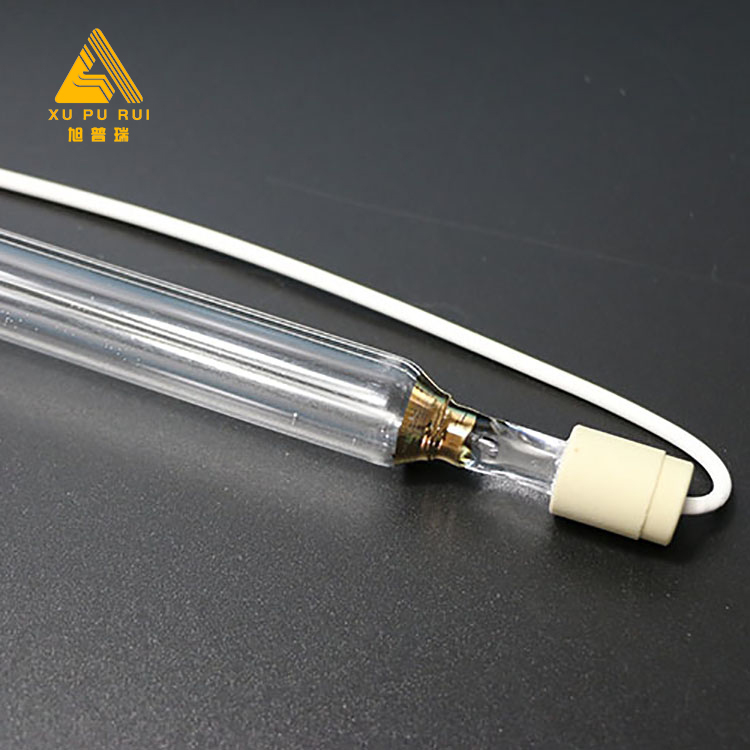

China made Ultraviolet lamp 1000mm 1000w 220v UV Lamps for printer
Description:
Standard UV curing lamps, also called UV lamps, are core parts of surface light curing industry.
UV technology
Industrial UV light source ranges in spectrum from 200nm to 450nm. When it comes to typical 350-380nm, ultraviolet light was absorbed most effectively by UV photoinitiators. Over decades UV technology has proven to be a success in printing, packaging, decorating, finishing and other fields.
Specializing in UV products for 16 years, Xupurui has been a professional manufacturer of UV curing lamps and metal halide lamps. Our inkjet lamps can be supplied in arc lengths from 50 mm to 3,000 mm and in outputs up to 60 kW. All lamps can operate at 50 or 60Hz.
We are proud of being UV lamp manufacturer and service provider to meet or exceed customers’ requirement.
| Wavelength | 350nm to 380nm |
| Fill | Mercury |
| Input voltage | 220V / 380V |
| Power output | 120w to 36kw |
| Arc length | 50mm to 2000mm |
| Lamp density | 30/80/120/160/200/240/300 w/cm |
| Material | GE quartz glass tube |
| Tube Diameter | 13mm to 40mm |
| End caps | Ceramic / metal ( more than 100 kinds) |
| leads | Teflon |
When you inquiry,please inform us the following details:
1.Operating voltage and operating current you need.
2.Power and outside dimension you need.
3.Special requirements if you have.
The following are some of our company"s other products, if you are interested can click to view.
20 years work experience,Customer-centered,Service-oriented,Credit & Quality
Main Products:
Lamps: UV tubes, metal halide (ME lamps), iron lamps, plate exposure lamps, iodine gallium lamps (M lamps), infrared lamps (IR lamps). UV light sources: UV transformers, ballasts, triggers, capacitors, UV lampshades. Consumables: Transparent quartz insulation films, coated quartz reflective films, quartz sleeves, UV energy meters, UV radiation meters, UV glasses. UV machines: Portable UV light curing machines, desktop curing machines, UV ovens.
