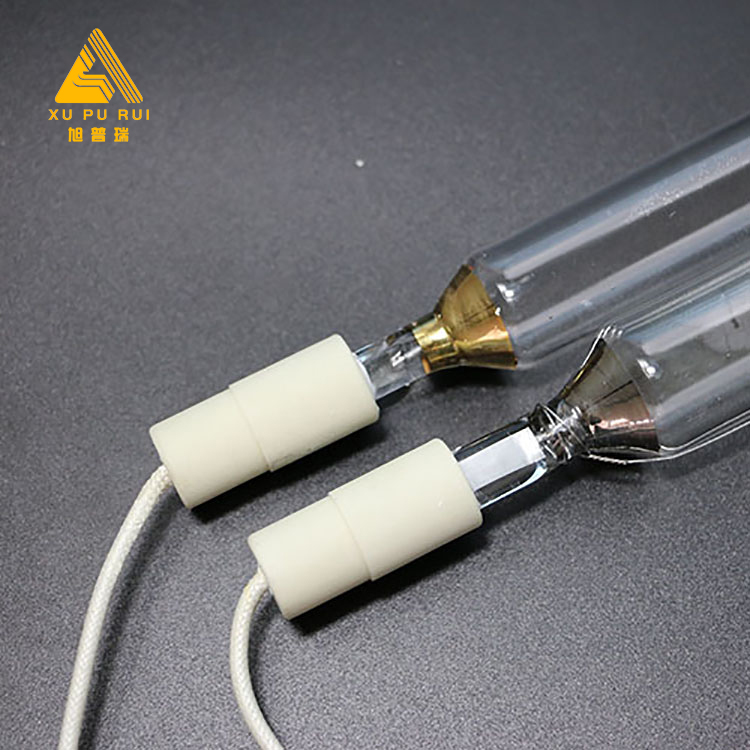

Customized 275mm 380v 1kw UV metal halide lamp for screen printing
Metal halid lamps radiate 365nm wavelength mostly between 265nm to 420nm wavelength, order production is available from 50w/cm to 180w/cm and radiation efficiency is better than mercury lamp, and apply to paint coating, drying, curing and color printing etc mostly.
1) Specifications
| Model | Power | Overall length | Arc length | Tube diameter | Lamp holder |
| LR-A1 | 1KW | 230mm | 180mm | 12.5mm | ceramic |
| LR-A2 | 2KW | 400mm | 320mm | 22.5mm | ceramic |
| LR-A3 | 3KW | 620mm | 500mm | 22.5mm | ceramic |
| LR-A4 | 4KW | 700mm | 620mm | 22.5mm | ceramic |
| LR-A5 | 5KW | 775mm | 680mm | 22.5mm | metal |
| LR-A6 | 6KW | 850mm | 750mm | 22.5mm | metal |
| LR-A7 | 7KW | 1000mm | 900mm | 25mm | metal |
| LR-A8 | 8KW | 1150mm | 1080mm | 25mm | metal |
| LR-A9 | 9KW | 1200mm | 1110mm | 25mm | metal |
| LR-FA | 200W | 115mm | 1000mm | 25mm | metal |
| LR-FB | 6.5KW | 900mm | 830mm | 20mm | ceramic |
| LR-FC | 9.6KW | 1387mm | 1200mm | 25mm | ceramic |
| LR-FD | 12KW | 1692mm | 1500mm | 25mm | ceramic |
| LR-FE | 12.5KW | 2000mm | 1800mm | 25mm | metal |
2) Feature
1. Special item can be producted according to parameter or sample
2. Imported product and domestic product both available
3. Our products are of data accuracy , high strength and long life
3) Samples
If you are not sure which specification you need,please fill the drawing below.We could produce as your require.
