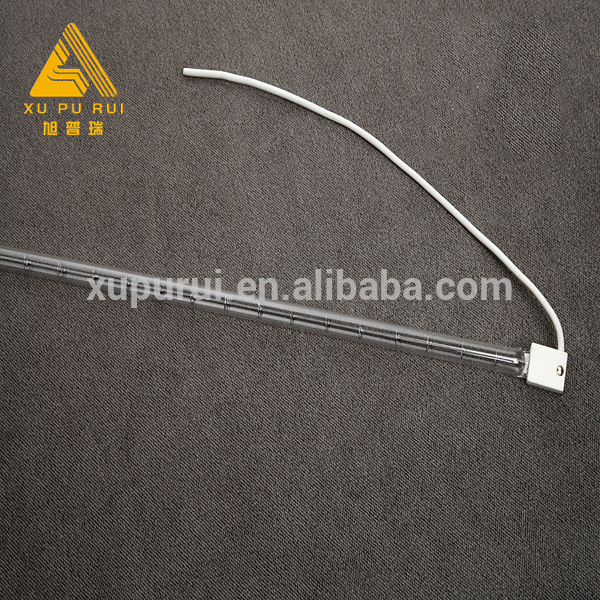

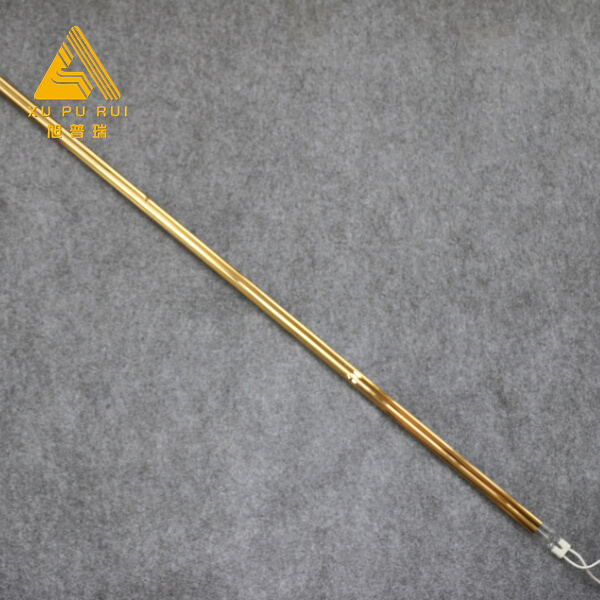

Infrared IR 5kw Quartz Heater Replacement Lamp Halogen Lamp
Power(KW) | Overall Length(mm) | Arc Length(mm) | Tube Diameter(mm) | Lamp Holder |
1 | 230 | 125 | 25 | Ceramic |
2 | 350 | 250 | 22.5 | Ceramic |
3 | 360 | 260 | 25 | Ceramic |
3.2 | 550 | 400 | 25 | Ceramic |
4 | 625 | 500 | 22.5 | Ceramic |
5 | 355 | 270 | 22.5 | Ceramic |
5.6 | 826 | 670 | 25 | Ceramic |
6 | 920 | 745 | 25 | Ceramic |
7.2 | 850 | 730 | 28 | Ceramic |
7.5 | 775 | 625 | 25 | Ceramic |
8 | 1000 | 900 | 22.5 | Metal |
8.4 | 800 | 700 | 25 | Ceramic |
9 | 850 | 720 | 25 | Ceramic |
9.6 | 1387 | 1250 | 22.5 | Ceramic |
10.4 | 1350 | 1230 | 32 | Metal |
11 | 1575 | 1420 | 25 | Ceramic |
11.2 | 1550 | 1400 | 20 | Ceramic |
12 | 1692 | 1540 | 25 | Ceramic |
15 | 1142 | 1030 | 25 | Metal |
16.8 | 1165 | 1050 | 25 | Ceramic |
6 | 280 | 200 | 40 | Metal |
8 | 330 | 260 | 36 | Ceramic |
18 | 1870 | 1750 | 25 | Ceramic |
20 | 1440 | 1330 | 28 | Ceramic |
22 | 1870 | 1750 | 25 | Metal |
36 | 1780 | 1660 | 25 | Ceramic |
250w | 115 | 45 | 15 | Ceramic |
500w | 150 | 80 | 20 | Ceramic |
2 | 400 | 250 | 22.5 | Metal |
3 | 460 | 360 | 25 | Ceramic |
