hot sell quartz Infrared Heating Lamp
1) Infrared heating lamp Specification
| Model | Power | Overall length | Arc length | Tube diameter | Lamp holder |
| LR-A1 | 1KW | 230mm | 180mm | 12.5mm | ceramic |
| LR-A2 | 2KW | 400mm | 320mm | 22.5mm | ceramic |
| LR-A3 | 3KW | 620mm | 500mm | 22.5mm | ceramic |
| LR-A4 | 4KW | 700mm | 620mm | 22.5mm | ceramic |
| LR-A5 | 5KW | 775mm | 680mm | 22.5mm | metal |
| LR-A6 | 6KW | 850mm | 750mm | 22.5mm | metal |
| LR-A7 | 7KW | 1000mm | 900mm | 25mm | metal |
| LR-A8 | 8KW | 1150mm | 1080mm | 25mm | metal |
| LR-A9 | 9KW | 1200mm | 1110mm | 25mm | metal |
| LR-FA | 200W | 115mm | 1000mm | 25mm | metal |
| LR-FB | 6.5KW | 900mm | 830mm | 20mm | ceramic |
| LR-FC | 9.6KW | 1387mm | 1200mm | 25mm | ceramic |
| LR-FD | 12KW | 1692mm | 1500mm | 25mm | ceramic |
| LR-FE | 12.5KW | 2000mm | 1800mm | 25mm | metal |
2) Infared heating lamp applications
Infared heating lamp are mainly used in the hot electronic chips of the semiconductor industry, blowing PETP bottles , reflow equipment , drying filler ,varnish drying Vehicle repair . In medical mainly used in position copier toner , printed circuit board to melt the solder, food heating and sterilization, etc . Infrared heating lamp are widely used on machinery, automobile, food ,medical and other industry .
3) Infared heating lamp details

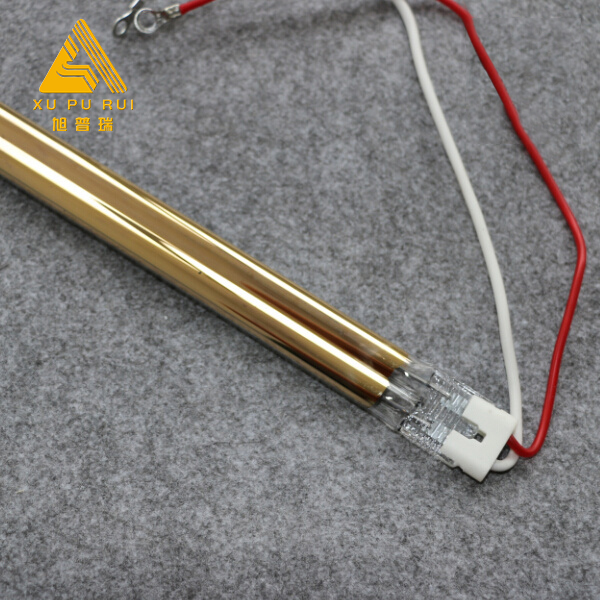

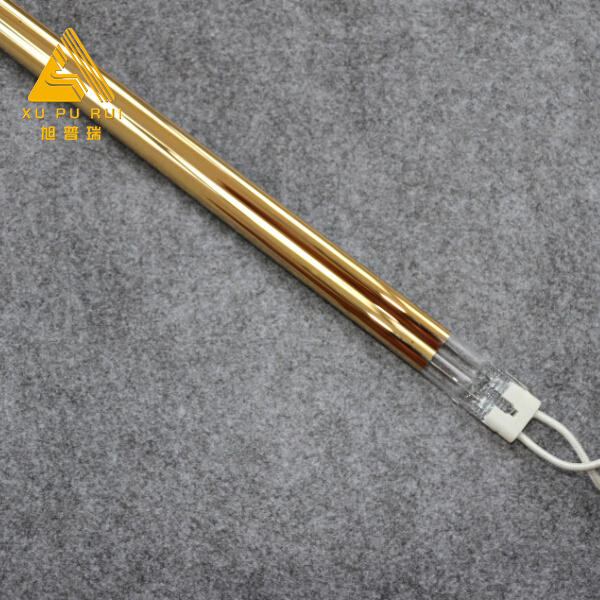

We can produce infrared heating lamp on your require .Please see the picture below,then tell me the specfication or send me a sample.
Shipping for infrared heating lamp
1 EMS
2 TNT
3 UPS
4 DHL
5 Fedex
6 shipping by air cargo
7 shipping by sea
Our services for infrared heating lamp
- OEM available;
- Customize available;
- Any problem just contact global trading managers:
Skype
Tel
Trademanager
QQ
Fax
Beckyxpr
+86-15194973615
cn220191713
2463039213
+86-312-3601595
rachelxpr
+86-15188976077
cn220191987
2412734390
JaneXPR
+86-15230289581
cn1000755795
2461540752
Our factory is specialized in producing UV light, UV CD lamp, UV fiber lamp, halogen lights, exposure lamp, iodine gallium lamp,infrared heating lamp, which lifetime are more than 800 hours. The appearance and quality of the ingrared heating lamps are superior. Power supplies and UV curing machine are also available.
FAQ
1. Is your company a factory or trading business?
Answer: We are a factory manufacturing UV&IR products.
2. MOQ?
Answer: 7 pieces if don’t have in store.
3. Quality assurance?
Answer: Guarantee lifetime 800 hours, but it can reach more than 1000 even 2000 hours, that’s our clients’ feedback. If can’t reach, we’ll replace for you.
