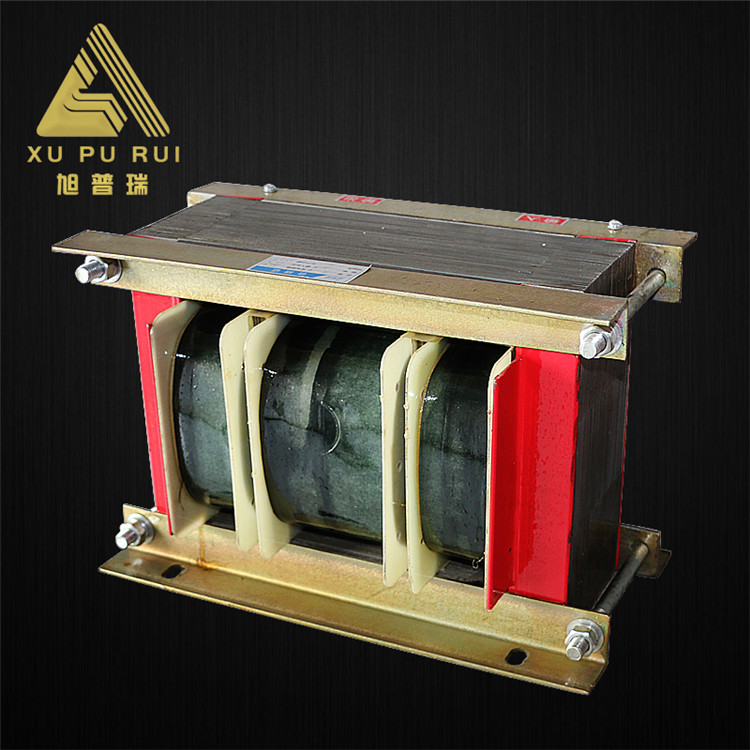

3 phase 380v 60hz electrical transformer for halogen uv curing lamp
Description
UV transformer for lighting UV lamp
Description
This transformer is designed especially for UV lamp and metal halide lamp, in order to achieve the effective UV output.
Features
- Iron core adopts imported silicon steel sheet.
- High quality oxygen- free copper wire, with F-class insulating material outside.
- Using Vacuum Pressure Impregnation Technology.
- Independent noise reduction design
- vertical, horizontal and imitation imports style available
- Special specification can be produced according to your request.
Benefits
- Low noise
- Long lifetime
- Strong power
- Stable performance
- Low energy consumption
Specification:
| Usage | Watts | Input Voltage | Phase | Material | Coil Structure | Frequency |
| power supply for UV lamp | 3kw-25kw | 220v/380v | 3 | copper | toroidal | 50-60hz |
Dimensions:
| Coil | Watts | Input Voltage | Frequency | Dimension(mm) | Weight |
| Copper | 3kw | 220v 380v | 50-60hz | 245*210*270 | 32kg |
| Copper | 5-6kw | 220v 380v 440v | 50-60hz | 275*255*300 | 56kg |
| Copper | 9.6kw | 380v | 50-60hz | 365*280*380 | 100kg |
| Copper | 11.2kw | 380v | 50-60hz | 340*280*370 | 90kg |
| Copper | 16kw | 380v | 50-60hz | 385*300*375 | 112kg |
