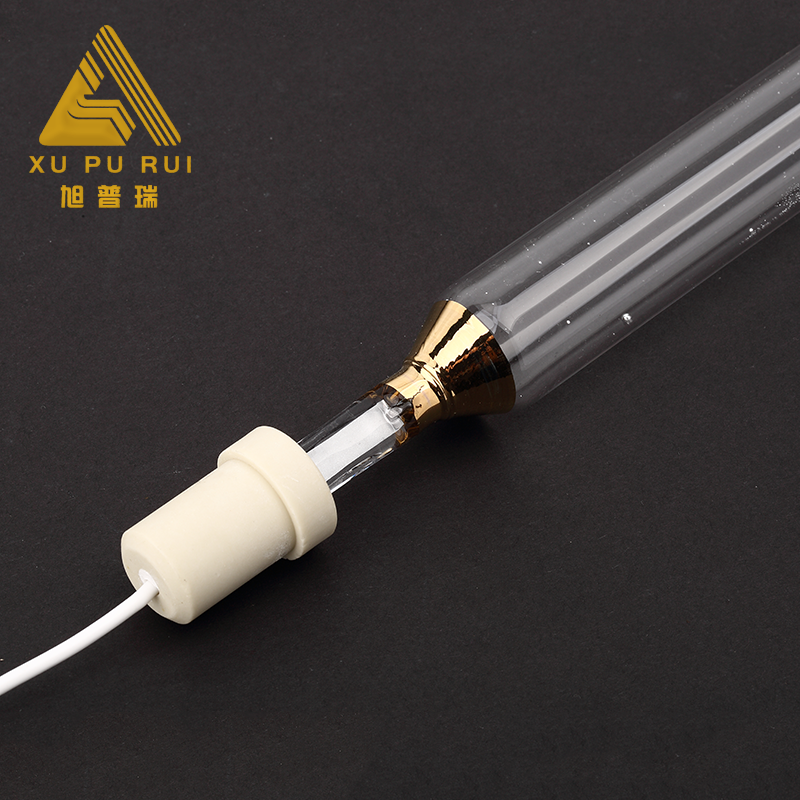

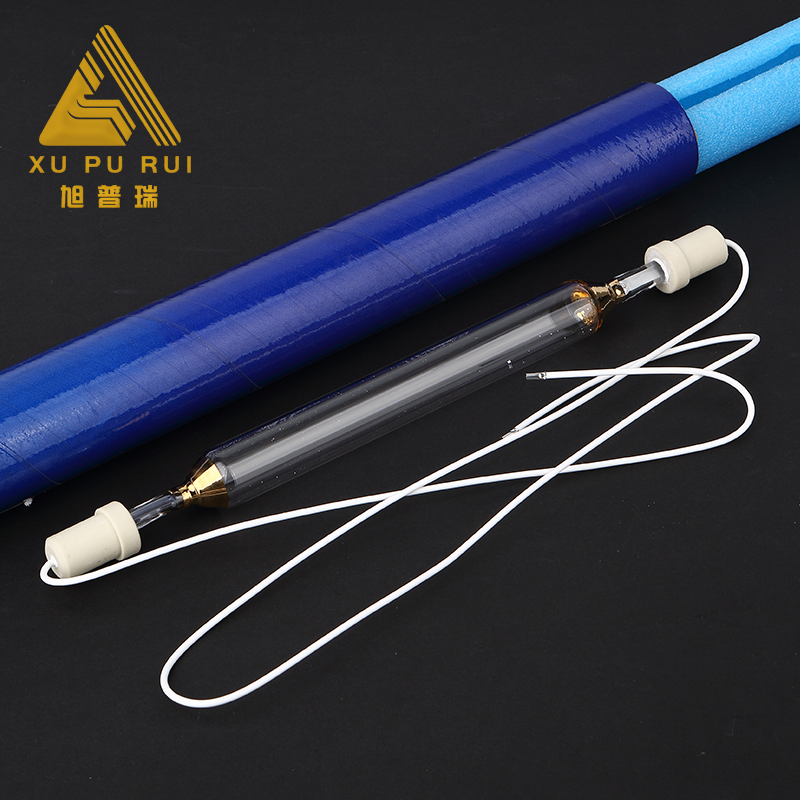

Good quality heater lamp for sheet-fed offset press
Description:
UV lamps have been successfully applied in UV printing applications including packaging,
labels, job printing and special UV applications.
High pressure mercury lamps are popular in UV printing industry for its long life,
low cost and well performance. In the graphic arts industry,
UV mercury lamps have been specifically developed for all press types including:
· Screen printing
· Rotary offsetting
· Flexo wide web printing
· UV flatbed printing
· Gravure printing
· Letterpress printing
Benefits:
· All Handcrafted
· 800 hours warranty
· Cost-effective
· Customized available
· CE IEC
· 7 days delivery
Wavelength | 350nm to 380nm |
Fill | Mercury |
Input voltage | 220V / 380V |
Power output | 500w to 36kw |
Arc length | 50mm to 2000mm |
Lamp density | 30/80/120/160/200/240/300 w/cm |
Material | GE quartz glass tube |
Tube Diameter | 13mm to 40mm |
End caps | Ceramic / metal ( more than 100 kinds) |
leads | Teflon |
Our lamps’ lifetime can reach up to 800 -1000 hours. Actually, we can customize UV lamps match all printing machines.
We can provide UV lamps 100% compatible to the UV printers .
