Product Description

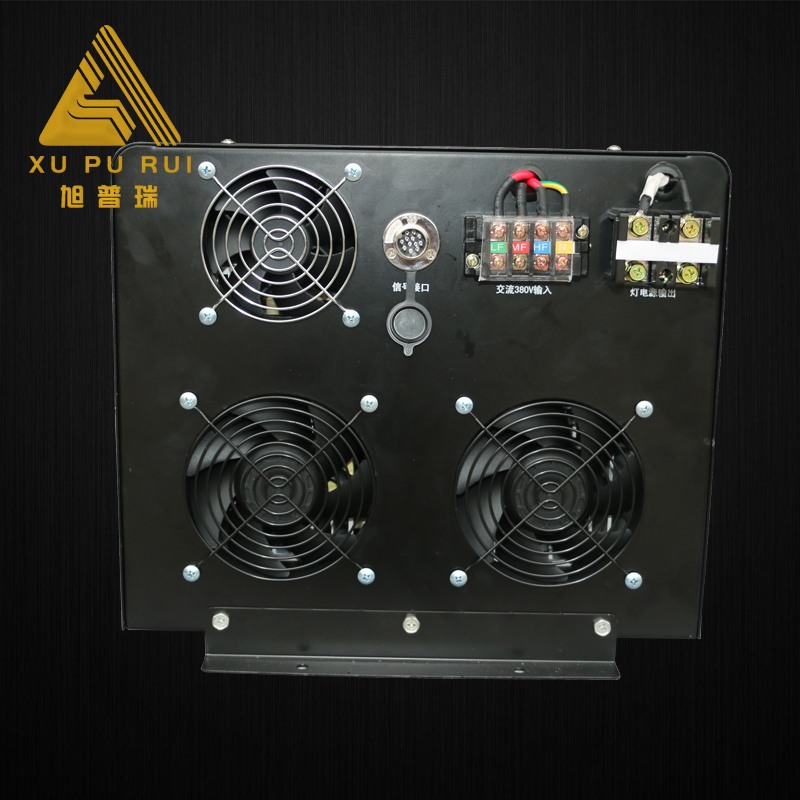

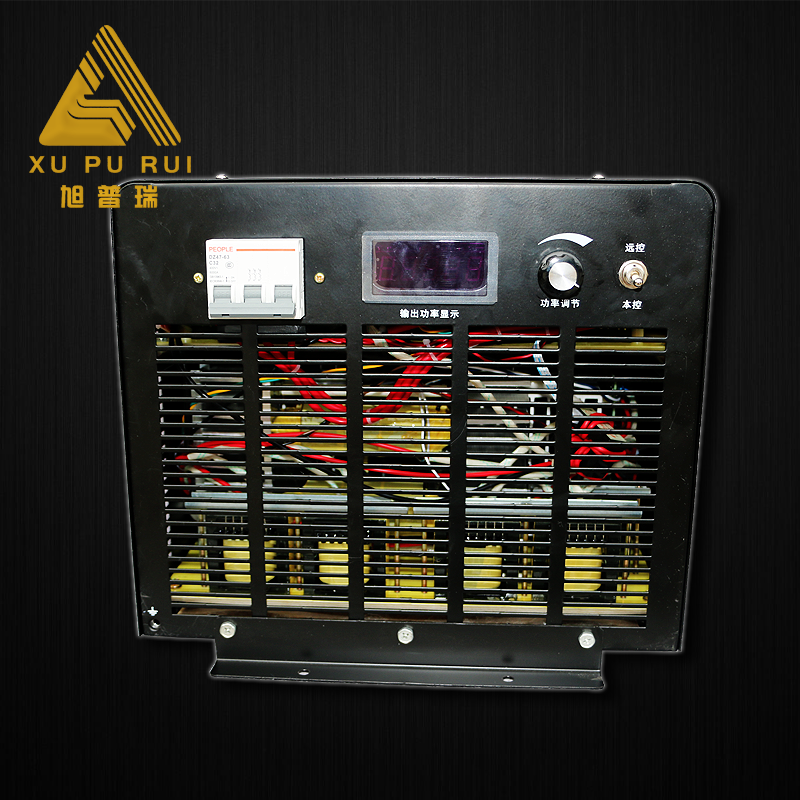

High Power Variable 750v-1400v UV Lamp Electronic Power Supply
| Product Name | UV electronic power supply |
| Usage | uv transformer replacement |
| Application | lighting uv lamp/ metal halide lamp |
| Working | 20-35khz |
| Photoelectric conversion efficiency | 90% |
| Power Regulation Range | 10%-100%(Stepless output adjustment) |
| Standby power | 10% |
| Starting time | 30-90s |
| power conversion speed | <= 1s |
| UV lamp life | >2000h |
| Model | 6k | 8k | 10k | 12k | 15k |
| description | 6kw | 8kw | 10kw | 12kw | 15kw |
| Input parameters | |||||
| Input voltage | 110v/ 220v/ 380v/ 440v/ 480v | ||||
| Input current | 9A | 12A | 15A | 18A | 23A |
| Input frequency | 50/60hz | ||||
| Output parameters | |||||
| Output voltage | 750v | 750v | 1000v | 1200v | 1400V |
| Output current | 8A | 10.6A | 10A | 10.4A | 10.7A |
| Output frequency | 50-60hz | 50-60hz | 50-60hz | 50-60hz | 50-60hz |
Application
This kind of lamp is mainly used for printing,plate making,label printing,
paper polishing,metal printing and curing for all kinds of materials coated
with photosensitive ink & paint,is a generally used of ultraviolet light source.
